Cooling Towers
>

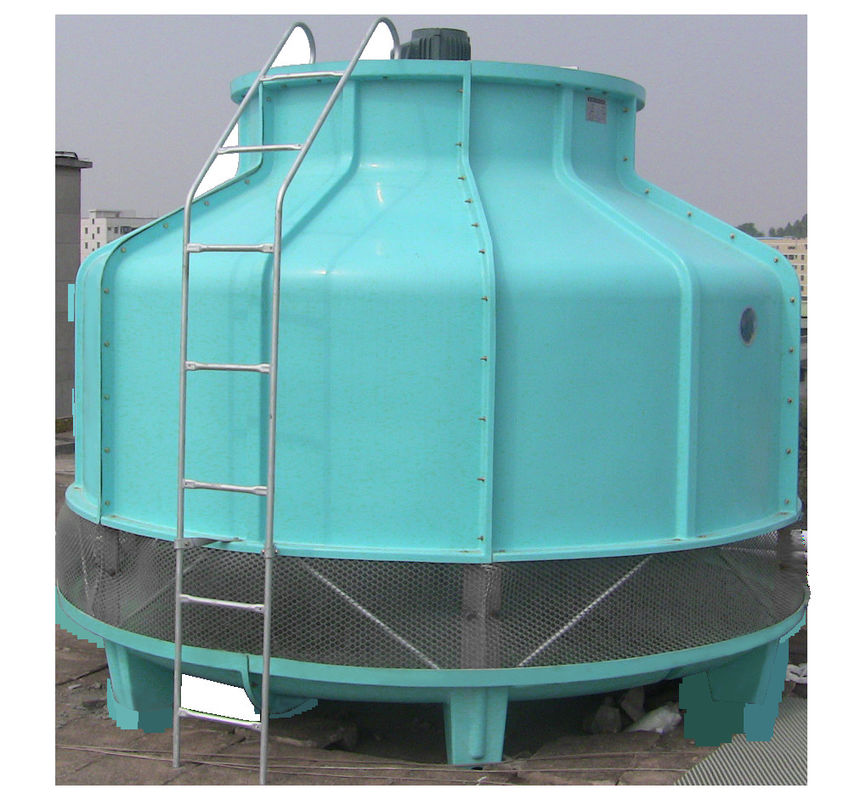

30 Ton Chillers And Cooling Towers

30 Ton Chillers And Cooling Towers

Brand Name: ANGES
Model Number: 30on
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
China
Cooling Capacity:
117000kcal/h
Nominal Flow:
23.4m3/h
Power:
380V/3P/50Hz
Height × Diameter(H×φ):
2400×1500mm
Inlet Pipe Caliber:
80mm
Outlet Pipe Caliber:
80mm
Brand:
Anges
High Light:

30 Ton chillers and cooling towers

,

chillers and cooling towers 30 Ton

,

30 Ton chiller tower

Product Description

30tons cooling  tower technical parameters




Model STG-30

Basic parameter

Type Counter current circular cooling tower
  Nominal flow 23.4m3/h
  Inlet/outlet temperature 37℃/32℃
  Dry-bulb temperature 31.5℃
  Wet-bulb temperature 27℃
  Cooling capacity 117000kcal/h
  Noise (dB(A)) 60dB(A)
  Power 380V/3P/50Hz
  Water quality PH=6 to 8
  N.W/G.W 116kg/530kg
Fan Fan type Axial Flow
  Cooling air flow(m3/h) 14040m3/h
  Rotation speed(r/min) 710r/min
  Diameter 770 mm
  Quantity 4 pieces/set
  Electronic box Water proof type
  Power 0.75kw
  Start-up mode Direct start



Size

Height × diameter(H×φ) 2400×1500mm
  Inlet pipe caliber 80mm
  Outlet pipe caliber 80mm
  Full outlet/drain off pipe caliber 25mm/25mm
  water supply pipe caliber 15mm
Material Sprinkler P.V.C-U
  Casing Fiberglass
  Water basin
  Fan A.B.S
  Electronic box Water proof type
  In -fill P.V.C.
  Shelf Hot-dip galvanized steel

Product Description
  • WORKING PRINCIPLE

  1. A cooling tower is a heat removal device that uses water to transfer process waste heat into the atmosphere.

  2. Likewise, an industrial cooling tower operates on the principle of removing heat from water by evaporating a small portion of water that is recirculated through the unit. The mixing of warm water and cooler air releases latent heat of vaporization, causing the water to cool.

  3. Cooling towers may release heat from water vapor by evaporation, cooling the working fluid to near the wet bulb temperature, or there are "closed circuit dry cooling towers,"

  • Advantages

  1. Stable temperature drop: Since the tower adopts the principle of injection for cooling, there is no packing blockage and fan damage. The advanced water suspension bearing technology ensures that the automatic rotation atomization device of the fan driven by water injection rotates flexibly and reliably, and ensures the long-term stable operation of the tower.

  2. No special requirements for water quality, strong applicability: due to the use of the company's patented technology design, atomizing nozzle diameter of more than 10, not easy to plug, nozzle flow speed is large, difficult to scale, no special requirements for water quality. There is no filler, not easy to scale, reduce the possibility of clogging.

  3. Quiet design, low noise: no motor, reducer and other rotating mechanical equipment, eliminate the disturbing noise of electric fan

  • Main Features

  1. An industrial cooling tower is a critical component of many refrigeration systems and can be found in industries such as power plants, chemical processing, steel mills, and many manufacturing companies where process cooling is necessary. Also, a commercial cooling tower can be used to provide comfort cooling for large commercial buildings like airports, schools, hospitals, or hotels.

  2. An industrial cooling tower can be larger than an HVAC system and is used to remove the heat absorbed in the circulating cooling water systems used in power plants, petroleum refineries, petrochemical plants, natural gas processing plants, food processing plants, and other industrial facilities.
