Brand Name: | ANGES |
Model Number: | 150ton |
MOQ: | 1 |
Packaging Details: | Plywood case |
Payment Terms: | T/T |

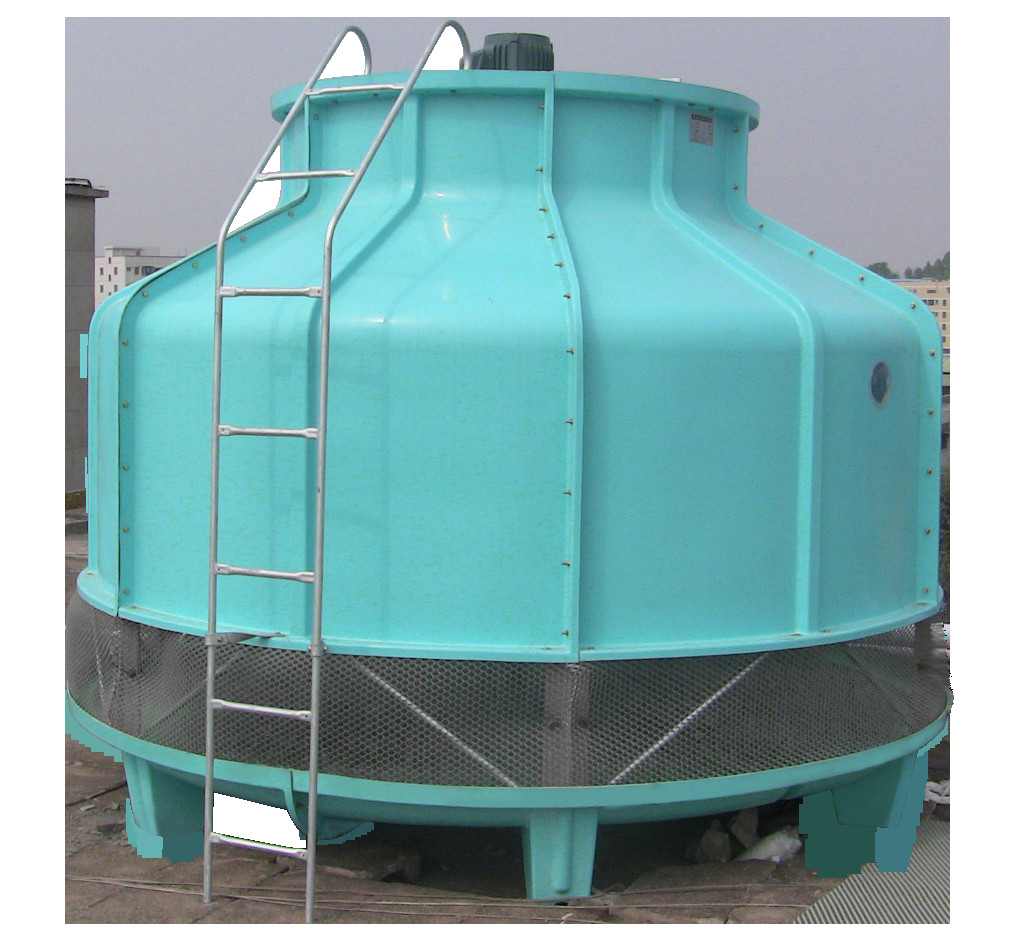

Cooling tower is a widely used thermal equipment that absorbs heat from a system and releases it into the atmosphere in order to lower the water temperature.
The tower chassis, featuring anti-corrosion, strong ability of resistance of vile weather and beautiful appearance made of high strength glassfiber, and its rotation part and connection area is made of high quality raw materials, that greatly improves the service life and connection strength.
Basic parameter |
Type | Counter current circular cooling tower |
Nominal flow | 117m3/h | |
Inlet/outlet temperature | 37℃/32℃ | |
Dry-bulb temperature | 31.5℃ | |
Wet-bulb temperature | 27℃ | |
Cooling capacity | 585000 kcal/h | |
Noise (dB(A)) | 63.5dB(A) | |
Power | 380V/3P/50Hz | |
Water quality | PH=6to 8 | |
N.W/G.W | 580kg/1680 kg | |
Fan | Fan type | Axial Flow |
Cooling air flow(m3/h) | 70200m3/h | |
Rotation speed(r/min) | 710r/min | |
Diameter | 1450 mm | |
Quantity | 4 pieces/set | |
Electronic box | Water proof type | |
Power | 2.2kw | |
Start-up mode | Direct start | |
Size |
Height × diameter(H×φ) | 3350×3030 mm |
Inlet pipe caliber | 150mm | |
Outlet pipe caliber | 150mm | |
Full outlet/drain off pipe caliber | 25mm/25mm | |
water supply pipe caliber | 25mm | |
Material | Sprinkler | P.V.C |
Shell | Fiberglass | |
Water basin | ||
Fan | A.B.S | |
Motor | Water proof type | |
Cooling film | P.V.C. | |
Shelf | Hot-dip galvanized steel |
