Cooling Towers
>

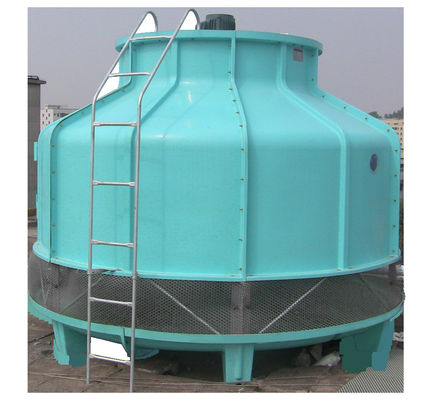

50 Ton Cooling Towers

50 Ton Cooling Towers

Brand Name: ANGES
Model Number: 50ton
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
China
Cooling Capacity:
196200kcal/h
Nominal Flow:
39.24m3/h
Power:
380V/3P/50Hz
Height × Diameter(H×φ):
2600×1800mm
Inlet Pipe Caliber:
80mm
Outlet Pipe Caliber:
80mm
Brand:
Anges
Highlight:

50 Ton Cooling Towers

,

50 tr Cooling Towers

,

50 Ton chiller cooling tower

Product Description

50tons cooling  tower technical parameters

Model STG-50











Basic parameter

Type Counter current circular cooling tower
Nominal flow 39.24m3/h
Inlet/outlet temperature 37℃/32℃
Dry-bulb temperature 31.5℃
Wet-bulb temperature 27℃
Cooling capacity 196200kcal/h
Noise (dB(A)) 61dB(A)
Power 380V/3P/50Hz
Water quality PH=6 to 8
N.W/G.W 190kg/975kg
Fan Fan type Axial Flow
Cooling air flow(m3/h) 23544m3/h
Rotation speed(r/min) 710r/min
Diameter 930 mm
Quantity 4 pieces/set
Electronic box Water proof type
Power 1.5kw
Start-up mode Direct start



Size

Height × diameter(H×φ) 2600×1800mm
Inlet pipe caliber 80mm
Outlet pipe caliber 80mm
Full outlet/drain off pipe caliber 25mm/25mm
water supply pipe caliber 15mm
Material Sprinkler P.V.C-U
Casing Fiberglass
Water basin
Fan Polyamide
Electronic box Water proof type
In -fill P.V.C.
Shelf Hot-dip galvanized steel


Product Description
  • WORKING PRINCIPLE

  1. Cooling tower is a heat removal device that cools water vapor into cooler water, discharging waste heat from a system to the atmosphere.

  2. A water cooling tower is used to cool water and is a huge heat exchanger, expelling building heat into the atmosphere and returning colder water to the chiller.

  3. A water cooling tower receives warm water from a chiller. This warm water is known as condenser water because it gets heat in the condenser of the chiller. The chiller is typically at a lower level, like in a basement. The cooling tower’s role is to cool down the water, so it can return to the chiller to pick up more heat.

  • Advantages

  1. Quiet design, low noise: no motor, reducer and other rotating mechanical equipment, eliminate the disturbing noise of electric fan

  2. Simple operation: as long as the circulating water system pump work, the product is in the working state.

  3. Safe and easy to maintain: Because this product has no electric fan, it prevents the occurrence of electrical fire in operation; It is safer to use places with flammable, explosive and other special requirements; Simple structure, convenient maintenance, low operating cost, no fan failure caused by the shutdown and production accident.

  4. Wide use, flexible combination: This product has a variety of combination units, can be flexibly combined according to the site. This technology can also be applied to the construction of cooling pool and the transformation of steel concrete cold water tower.

  • After-sales service

  1. 12 months quality warranty since the date of delivery.

  2. Free of charge to replace new chillersif quality problems.

  3. Cost price to buy extra parts with Chillers from Anges if needed.

  4. 24 hours online service by e-mail, WhatsApp, Skype or Telephone Calling.
