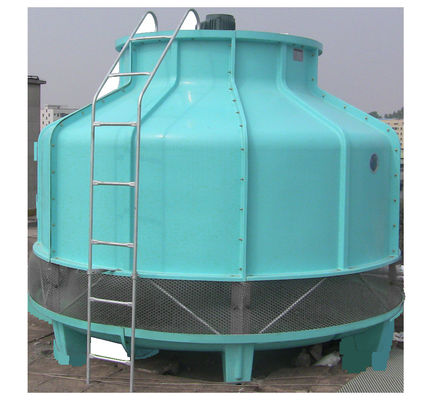

100 Ton Cooling Towers Chiller And Cooling Tower System 50Hz 380 Volt Three Phase

  • 100 Ton Cooling Towers Chiller And Cooling Tower System 50Hz 380 Volt Three Phase
Place of Origin China
Brand Name ANGES
Model Number 100ton
Minimum Order Quantity 1
Packaging Details Plywood case
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling Capacity 390600kcal/h Nominal Flow 78.12m3/h
Power 380V／3P／50Hz Height × Diameter(H×φ) 3300×2800mm
Inlet Pipe Caliber 100mm Outlet Pipe Caliber 100mm
Brand Anges
High Light

100 Ton Cooling Towers

,

Cooling Towers 50Hz

,

100 tr cooling tower
Leave a Message
Product Description

100tons cooling  tower technical parameters



Model STG-100











Basic parameter

 Type Counter current circular cooling tower
Nominal flow 78.12m3/h
Inlet/outlet temperature 37℃／32℃
Dry-bulb temperature 31.5℃
Wet-bulb temperature 27℃
Cooling capacity 390600kcal/h
Noise (dB(A)) 63.5dB(A)
Power 380V／3P／50Hz
Water quality ＰＨ＝６to ８
N.W／G.W 500kg／1600kg
Fan Fan type Axial Flow
Cooling air flow(m3/h) 46872m3/h
Rotation speed(r/min) 710r/min
Diameter 1450 mm
Quantity 4 pieces/set
Electronic box Water proof type
Power 2.2kw
Start-up mode Direct start



Size

 Height × diameter(H×φ) 3300×2800mm
Inlet pipe caliber 100mm
Outlet pipe caliber 100mm
Full outlet/drain off pipe caliber 25mm／25mm
water supply pipe caliber 25mm
Material Sprinkler P.V.C-U
Casing Fiberglass
Water basin
Fan Al alloy
Electronic box Water proof type
In -fill P.V.C.
Shelf Hot-dip galvanized steel





Product Description

  • WORKING PRINCIPLE

  1. A cooling tower is a heat removal device that uses water to transfer process waste heat into the atmosphere.

  2. Likewise, an industrial cooling tower operates on the principle of removing heat from water by evaporating a small portion of water that is recirculated through the unit. The mixing of warm water and cooler air releases latent heat of vaporization, causing the water to cool.

  3. Cooling towers may release heat from water vapor by evaporation, cooling the working fluid to near the wet bulb temperature, or there are "closed circuit dry cooling towers,"

  • Advantages

  1. Stable temperature drop: Since the tower adopts the principle of injection for cooling, there is no packing blockage and fan damage. The advanced water suspension bearing technology ensures that the automatic rotation atomization device of the fan driven by water injection rotates flexibly and reliably, and ensures the long-term stable operation of the tower.

  2. No special requirements for water quality, strong applicability: due to the use of the company's patented technology design, atomizing nozzle diameter of more than 10, not easy to plug, nozzle flow speed is large, difficult to scale, no special requirements for water quality. There is no filler, not easy to scale, reduce the possibility of clogging.

  3. Quiet design, low noise: no motor, reducer and other rotating mechanical equipment, eliminate the disturbing noise of electric fan

  • Main Features

  1. Cooling towers are primarily used for heating, ventilation, and air conditioning (HVAC) and industrial purposes.

  2. Cooling towers provide a cost-effective and energy efficient operation of systems in need of cooling.

  3. Cooling towers are used in power plants, petroleum refineries, petrochemical plants, natural gas processing plants, food processing plants, and other industrial facilities.
