Model		STG-80
Basic parameter	Type	Counter current circular cooling tower
	Nominal flow	62.64m³/h
	Inlet/outlet temperature	37℃／32℃
	Dry-bulb temperature	31.5℃
	Wet-bulb temperature	27℃
	Cooling capacity	313200kcal/h
	Noise (dB(A))	62dB(A)
	Power	380V／3P／50Hz
	Water quality	ＰＨ＝６to ８
	N.W／G.W	260kg／1280kg
Fan	Fan type	Axial Flow
	Cooling air flow(m3/h)	37584m³/h
	Rotation speed(r/min)	710r/min
	Diameter	1180 mm
	Quantity	4 pieces/set
	Electronic box	Water proof type
	Power	1.5kw
	Start-up mode	Direct start
Size	Height × diameter(H×φ)	2800×2100mm
	Inlet pipe caliber	100mm
	Outlet pipe caliber	100mm
	Full outlet/drain off pipe caliber	25mm／25mm
	water supply pipe caliber	20mm
Material	Sprinkler	P.V.C-U
	Casing	Fiberglass
	Water basin	Fiberglass
	Fan	A．B．S
	Electronic box	Water proof type
	In -fill	P.V.C.
	Shelf	Hot-dip galvanized steel

Product Description

WORKING PRINCIPLE


	Cooling tower is the use of water as a medium, from the water circulation system to absorb heat into the atmosphere, is a device to reduce the temperature of the water.

	Cooling tower uses the water and air flow contact after cold and heat exchange to produce steam, volatile heat to achieve the purpose of evaporative heat dissipation, heat transfer and radiation principle to disperse the industrial or refrigeration air conditioning generated in the waste heat to reduce the water temperature of the evaporative heat dissipation device, in order to ensure the normal operation of the system.

Advantages

Stable temperature drop: Since the tower adopts the principle of injection for cooling, there is no packing blockage and fan damage. The advanced water suspension bearing technology ensures that the automatic rotation atomization device of the fan driven by water injection rotates flexibly and reliably, and ensures the long-term stable operation of the tower.
No special requirements for water quality, strong applicability: due to the use of the company's patented technology design, atomizing nozzle diameter of more than 10, not easy to plug, nozzle flow speed is large, difficult to scale, no special requirements for water quality. There is no filler, not easy to scale, reduce the possibility of clogging.
Quiet design, low noise: no motor, reducer and other rotating mechanical equipment, eliminate the disturbing noise of electric fan

	Main Features


	Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields.

	The function of the cooling tower is to carry out heat exchange between the cooling water with waste heat in the tower and the air, so that the waste heat is transmitted to the air and dispersed into the atmosphere.

	Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.

Tags:

100 Ton chiller and cooling tower system

chiller and cooling tower system 50Hz

100 tr cooling tower

Products Details

Home > Products >

Cooling Towers

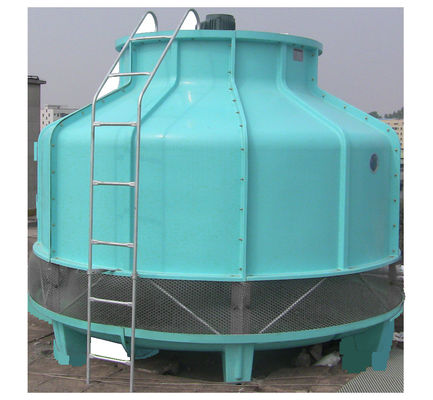

80 Ton Chillers And Cooling Towers 50Hz 380 Volt Three Phase
