| Brand Name: | Anges/SZAGS |
| Model Number: | ACK-10(D) |
| MOQ: | 1 |
| Price: | Negotiatible |
| Packaging Details: | Standard export wooden box |
| Payment Terms: | T/T, Western Union, MoneyGram |

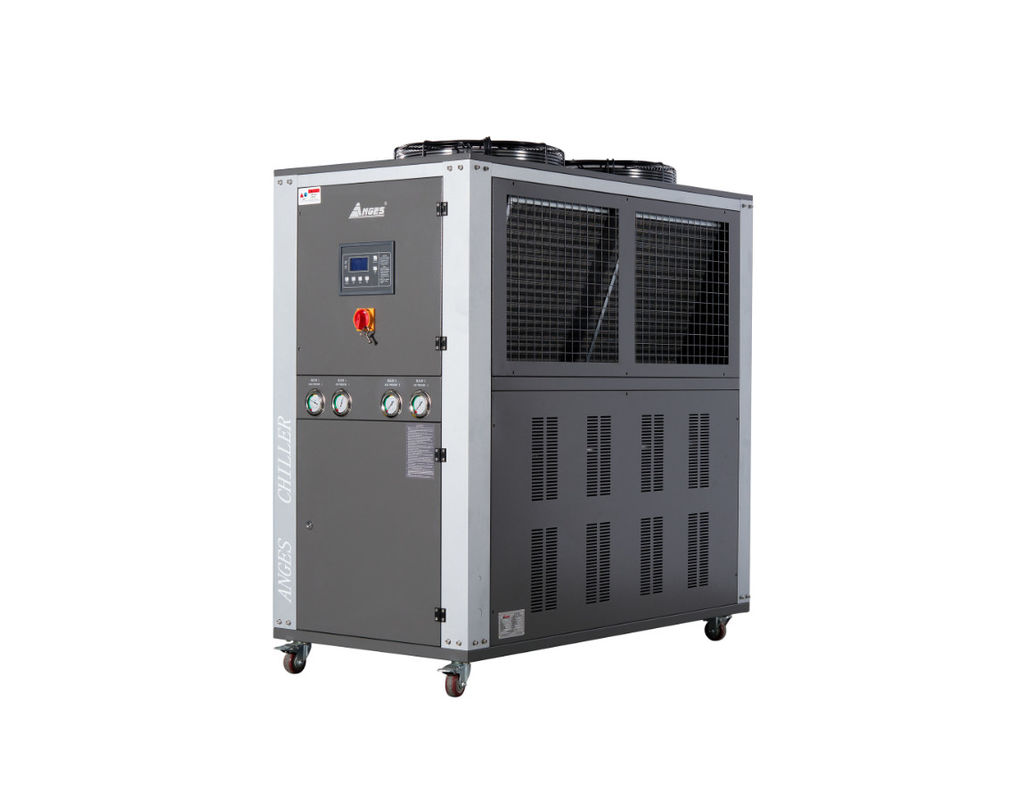

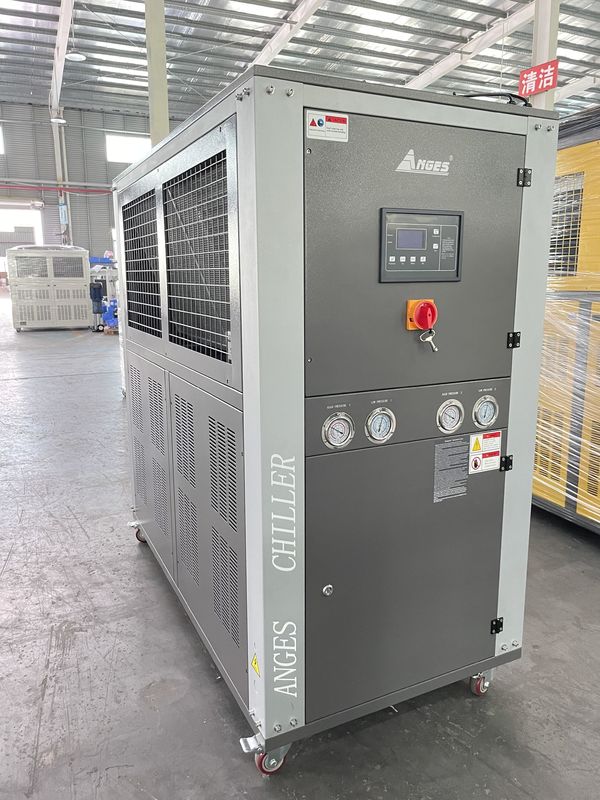

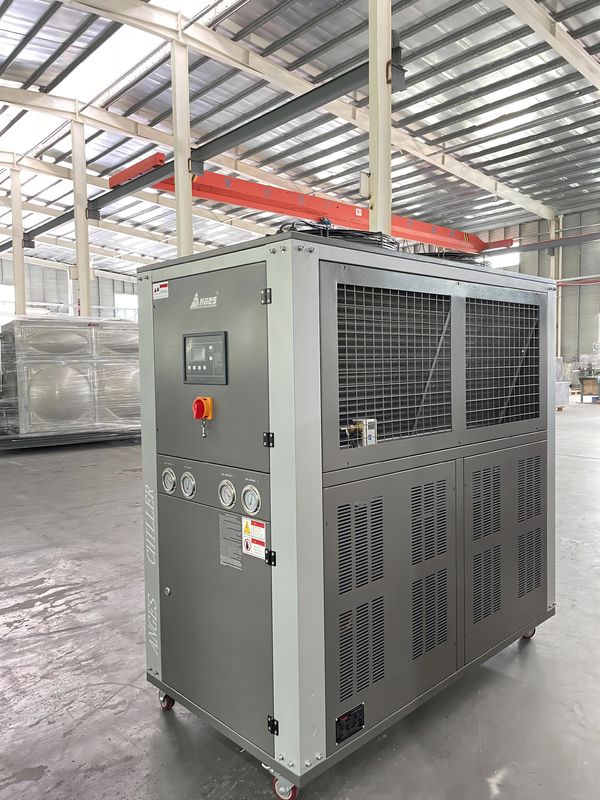

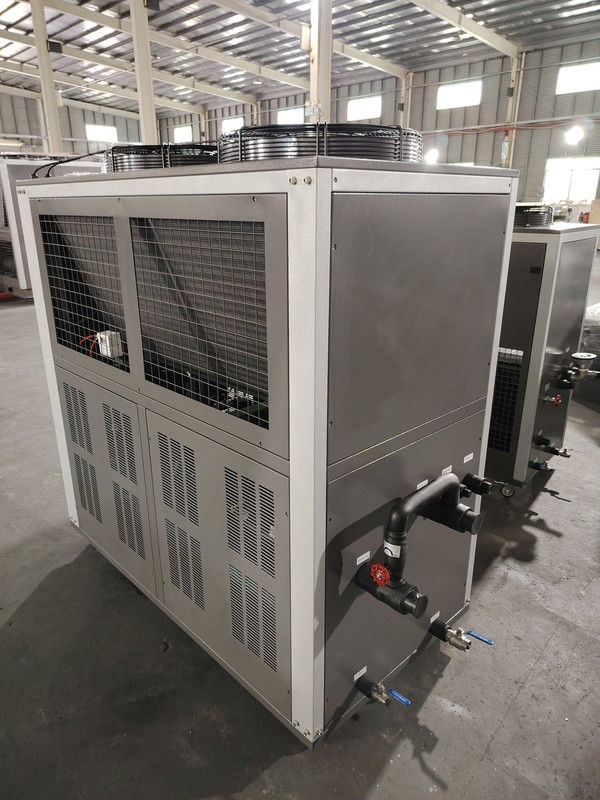

10Ton Industrial Chiller Air Cooled Scroll Type Glycol Chiller Factory Supply
Air-cooled chillers play a crucial role in many industries, ensuring that delicate materials and products are maintained at the optimal temperature during manufacturing and storage. Industrial operations often demand several tons of cooling capacity instantly, and the team at Anges Chillers is dedicated to delivering exactly that.
We specialize in standard and custom air-cooled water chillers ranging in capacities from 1hp~720hp. Each model offers various configuration options, allowing you to fit any model into your existing setup. Explore our units or connect with us today to see what our chillers can do for you.
Technical Parameters of Industrial Air-cooled Chiller
|
Model Item |
ACK-10(D) | |
| nominal cooling capacity | kcal/h | 29928 |
| kw | 34.80 | |
| input power | kw | 11.22 |
| power supply | 3PH 440V 60HZ | |
| refrigerant | type | R407C |
| type of control | capillary | |
| compressor | type | hermetic scroll |
| power(kw) | 8.8 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| fan power(kw) | 0.92 | |
| cooling air flow(m3/h) | 12000 | |
| evaporator | type | shell and tube |
| chilled fluid flow(m3/h) | 6 | |
| volume(L) | 85 | |
| inlet and outlet pipe diameter(inch) | 2" | |
| pump | power(kw) | 1.5 |
| lift(m) | 20 | |
| safety protection | compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection | |
| weight | kg | 550 |
| dimension | mm | 1600*850*1810 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Working Principle:
When an air-cooled chiller operates, the refrigerant absorbs heat from the target object in the evaporator and vaporizes. The compressor continuously draws the resulting gas from the evaporator and compresses it into high-temperature, high-pressure vapor. This vapor is then directed to the condenser, where it releases heat through air-based heat exchange and condenses into a liquid. The liquid refrigerant then passes through an expansion valve, where it is depressurized and returns to the evaporator. Here, it vaporizes again, absorbing heat from the object being cooled. This cycle repeats until the industrial water reaches the desired temperature.
Application:
Chillers are extensively utilized across a variety of industries, including plastics, electronics manufacturing, electroplating, chemical engineering, ultrasonic cooling, and printing. In plastic processing, they play a vital role in cooling molds, which enhances the surface smoothness of plastic products, minimizes surface defects and internal stresses, prevents shrinkage and deformation, facilitates mold release, and accelerates product shaping. This results in significantly improved production efficiency and product quality for plastic molding machines.
About after-sales service?
①24 hours Online support;
②Video technical support;
③Overseas third-party support available and etc.
|
|
