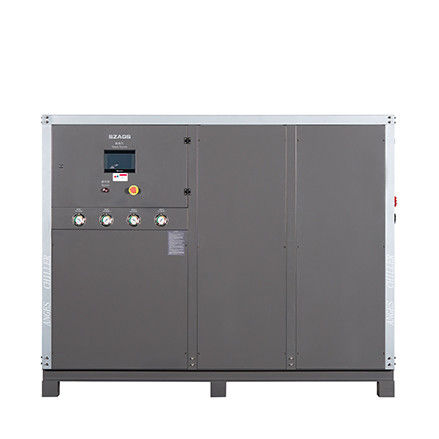

Name: Industrial Water Cooled Chiller with Advanced Technology and Superior Performance
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 30hp
Price: 2,100.00 USD
Availability: InStock

Home > products > Industrial Water Chiller >

Industrial Water Cooled Chiller with Advanced Technology and Superior Performance

industrial water cooled chiller

high performance water chiller

water chiller with warranty

Place of Origin:

China

Brand Name:

ANGES

Model Number:

30hp

Request A Quote

Industrial Water Cooled Chiller with Advanced Technology and Superior Performance

Product Details

Fob Port:

SHENZHEN

Total Input Power:

100.8KW

Compressor Type:

Scroll

Water Outlet Temp:

12c

Condenser Type:

Shell And Tube

Cooling Mode:

Water Cooling

Safety Protection:

High/Low Pressure Protection, Overload Protection, Anti-freezing Protection

Highlight:

industrial water cooled chiller

high performance water chiller

water chiller with warranty

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Plywood case

Delivery Time

30 days

Payment Terms

L/C, T/T

3HP Industrial Air Cooled Chiller 8.9kW Portable Glycol Chiller for Injection Molding Machine

Get Best Price

Video

Air Cooled Chiller Unit 20HP Industrial Water Chiller For Rubber And Plastic

Get Best Price

Video

10HP Air-Cooled Chiller - Rapid Cooling, Suitable For Mold/Laser Equipment Cooling

Get Best Price

Customizable Portable Water Chiller with Over-Temperature and Flow Switch Protection for Industrial Needs

Get Best Price

86-755-8958-2358

Contact Now

Product Description

Shenzhen Anges Machinery Co., Ltd

Technical Parameter of Water-cooled scrolled Type Chiller

Model Item		HBW-30(D)
nominal cooling capacity	Kcal/h	86688
nominal cooling capacity	kw	100.8
input power	kw	22.2
power supply	3PH~380V/50HZ
refrigerant	type	R410a
refrigerant	type of control	Expansion valve
compressor	type	Hermetic scroll type
compressor	Power (kw)	20
condenser	type	Shell and tube
	Cooling water flow(m³/h)	20.9
	Inlet/outlet pipe caliber(inch)	2
evaporator	type	Shell and tube
	Chilled water flow(m³/h)	8.8
	Tank volume(L)	175
	Inlet/outlet pipe chiller(inch)	2-1/2
Water pump	Power(KW)	2.2
Water pump	Lift(m)	20
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight	kg	1150
Dimension	mm	18809101820

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Configuration table for water-cooled scrolled Type Chiller

Item	Main Parts	Brand	Origin
1	Compressor	Panasonic	Japan
2	Condenser	ANGES	China
3	Evaporator	ANGES	China
4	Drying Filter	Emerson	USA
5	Controller PCB	Punp	China
6	Electric Components	Schneider	France
7	Pressure Controller	Fensheng	China
8	Oil Pressure Gauge	Jiunai	China
9	Water Pump	Minamoto	China
