| Brand Name: | ANGES |
| Model Number: | HBC-8(D) |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
Portable Water Chiller 8Tr Air Cooled Scroll Chiller Supplier Energy Efficient Chiller Industrial Chiller Suppliers
What's the water chiller for?
The portable air cooled chillers help keep your equipment at a safe operating temperature and cool your components during processes, widely used in plastic and rubber, food and beverages, medical chemistry, ultrasonic cooling, printing, electroplating, pharmaceutical and other various industrial process needs chiller service.
Anges portable air-cooled scroll chiller cooling capacities are from 9 to 180 kW (2.5 to 51 tons) and suitable for indoor or outdoor installation.These units are complete, including stainless steel #304 water tanks, pumps, stable shell&tube evaporators and axial fans.
Portable Chiller Specification
|
Model |
HBC-8(D) | ||
| nominal cooling capacity | kcal/h | 19522 | |
| kw | 22.7 | ||
| input power | kw | 8.55 | |
| power supply | 3PH/380V/50HZ | ||
| refrigerant | type | R410a | |
| type of control | Expansion valve | ||
| compressor | type | hermetic scroll | |
| power(kw) | 6.57 | ||
| condenser | type | finned copper tube + low noise outer rotor fan | |
| cooling air flow(m3/h) | 8000 | ||
| evaporator | type | Shell and tube | |
| chilled fluid flow(m3/h) | 3.91 | ||
| volume(L) | 120 | ||
| inlet and outlet pipe diameter (inch) | 1-1/2 | ||
| pump | power (kw) | 1.5 | |
| lift(m) | 20 | ||
| safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
| weight | kg | 350 | |
| dimension | mm | 1530*780*1630 | |
Portable Chiller Features
1. Portable air-cooled scroll chillers use in small to medium cooling loads. Typically, available for 9 to 180 kW (2.5 to 51 tons) for single chiller unit.

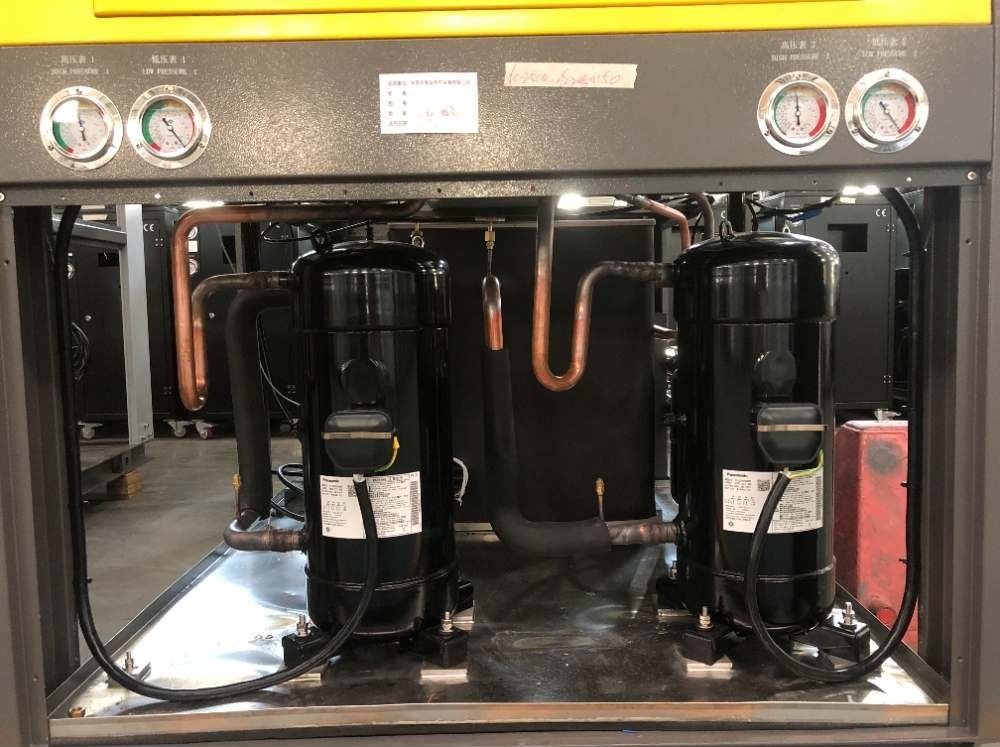

2. Adopting high-efficiency and energy-saving scroll compressors of world class grade brands.
3. High-quality copper tube fin condensers and high-efficiency heat exchanger shell in tube evaporators, high cooling efficiency, stable performance and low noise.
4. The chiller refrigerator is equipped with multiple safety protection functions, such as phase sequence protection, flow protection, high and low voltage protection and overheating protection. High reliability, low failure rate, long service time.

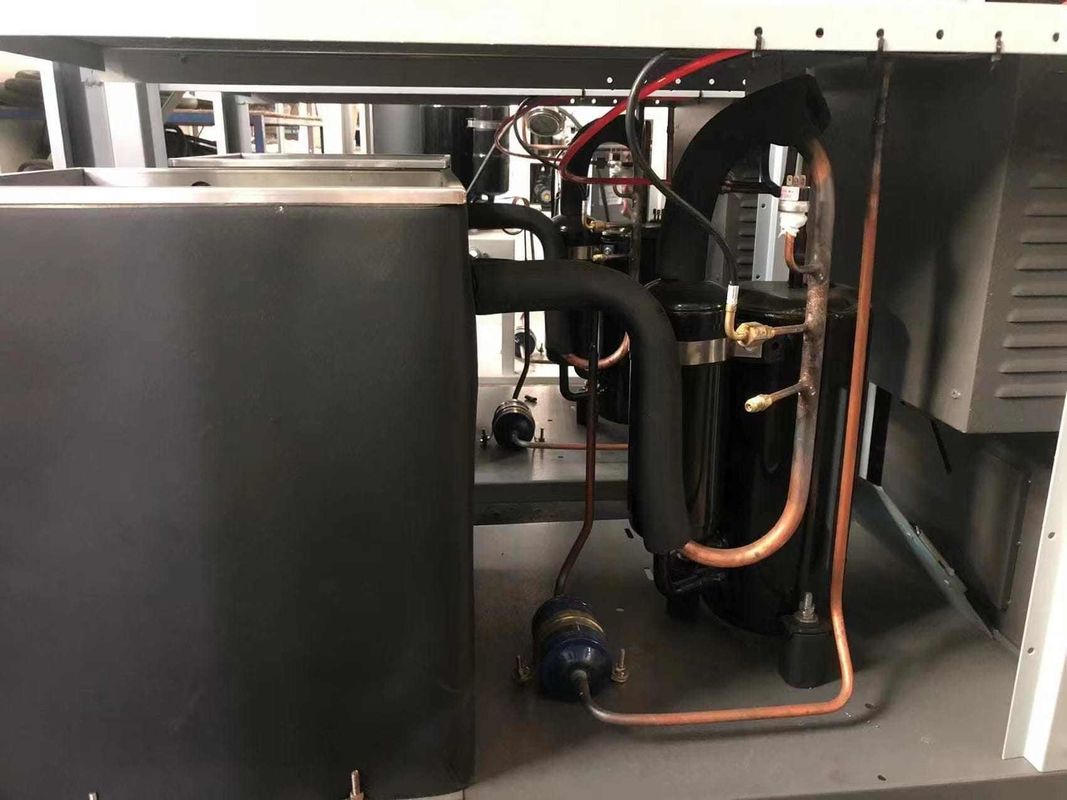

5. This portable air chiller design is very compact,build in stainless steel water tank and water pump,easy for installation and operation.
6. This chiller uses precise digital temperature controller with LCD display, high temperature-control precision of ±1℃, convenient temperature setting.
What we will do before chiller delivery ?
1. After industrial chiller assembly, we will charge nitrogen for pressure maintaining testing for 24hrs, to check whether there is leakage in the chiller cooling system.
2. Drain the nitrogen,vacuum the chiller system and set up parameters, then power on chiller and charge refrigerant at the same time.
3. Debug and test the chiller unit.
4. After the chiller commissioning, cleaning and labelling chiller unit, then have pre-delivery inspection before packing with plywood cases to to ensure that the chiller can be in good condition during transit.
How to select the model of the chiller ?
1. We need to know the heat load of your process or chiller cooling capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 139 2379 1048.
Air cooled industrial chiller installation and maintenance
Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
|
|
