| Brand Name: | ANGES |
| Model Number: | HBC-10(D) |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

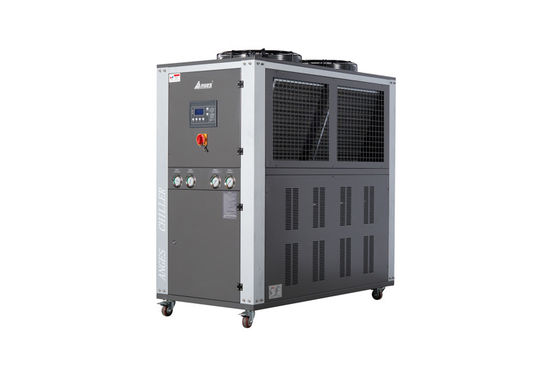

10 Ton Chiller 10 Ton Water Cooled Chiller Industrial Water Chiller High Efficiency Chiller System For Injection Molding
Industrial chillers applications
Industrial chillers help keep your equipment at a safe operating temperature and cool your components during processes, they are equipped with copper tube fin condenser that utilize ambient air to cold down the chiller refrigerant temperatures.The typical feature is that there' re fans on top of the condenser.The portable packed chiller are built-in water tank and water pump and useful for small process loads.It is mainly applied in Plastic & Rubber industry.It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency.
Water Chiller Scroll Type Compressor
Air or water-cooled chillers
Used in small to medium cooling loads
Typically, available for capacity 3 – 52 TR, 10 – 180 kW
Popular brand Copeland, Danfoss and Panasonic
Chiller can use one or more compressors which depends on chiller capacity
Variable speed compressor for optional
Industrial Water Chiller Specifications
|
Model |
HBC-10(D) | ||
| nominal cooling capacity | kcal/h | 26230 | |
| kw | 30.5 | ||
| input power | kw | 11.07 | |
| power supply | 3PH/380V/50HZ | ||
| refrigerant | type | R410a | |
| type of control | capillary | ||
| compressor | type | hermetic scroll | |
| power(kw) | 8.65 | ||
| condenser | type | finned copper tube + low noise outer rotor fan | |
| cooling air flow(m3/h) | 10000 | ||
| evaporator | type | Shell and tube | |
| chilled fluid flow(m3/h) | 5.26 | ||
| volume(L) | 200 | ||
| inlet and outlet (inch) | 1-1/2 | ||
| pump | power (kw) | 1.5 | |
| flow rate(m3/h) | 8 | ||
| lift(m) | 20 | ||
| safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
| weight | kg | 450 | |
| dimension | mm | 1530*780*1630 | |
Industrial water chiller features:
1. Lower installed cost.The portable chiller system contains refrigeration circuit, water tank, pumps, and necessary components, it's pre-assembled and factory-tested package units, less pipes installation and lower installation cost than water-cooled chiller.
2. Easy Maintenance.This air cooled chiller no need cooling tower installation, water treatment, chiller condenser-tube cleaning and cooling tower mechanical maintenance.
3.Accurate temperature control. Industrial chiller small is multiple temperature control precisions to satisfy different cooling demands, water temperature can be accurate to ±1 ℃.
4. High Efficiency.The central chiller system continuously measures ambient and process conditions and will adjust to operate in the most efficient manner.
5. Multiple protection measures. Industrial chiller has high pressure, low pressure, overload, water level, phase sequence and other protections to ensure the safe operation of the chiller unit.
Water chiller service from manufacturer
1. All the chillers are provided with 12 months free maintenance service.
2. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
3. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
4. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
5. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
How to select the model of the chiller ?
Water chiller system
|
|
| Brand Name: | ANGES |
| Model Number: | HBC-10(D) |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
10 Ton Chiller 10 Ton Water Cooled Chiller Industrial Water Chiller High Efficiency Chiller System For Injection Molding
Industrial chillers applications
Industrial chillers help keep your equipment at a safe operating temperature and cool your components during processes, they are equipped with copper tube fin condenser that utilize ambient air to cold down the chiller refrigerant temperatures.The typical feature is that there' re fans on top of the condenser.The portable packed chiller are built-in water tank and water pump and useful for small process loads.It is mainly applied in Plastic & Rubber industry.It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency.
Water Chiller Scroll Type Compressor
Air or water-cooled chillers
Used in small to medium cooling loads
Typically, available for capacity 3 – 52 TR, 10 – 180 kW
Popular brand Copeland, Danfoss and Panasonic
Chiller can use one or more compressors which depends on chiller capacity
Variable speed compressor for optional
Industrial Water Chiller Specifications
|
Model |
HBC-10(D) | ||
| nominal cooling capacity | kcal/h | 26230 | |
| kw | 30.5 | ||
| input power | kw | 11.07 | |
| power supply | 3PH/380V/50HZ | ||
| refrigerant | type | R410a | |
| type of control | capillary | ||
| compressor | type | hermetic scroll | |
| power(kw) | 8.65 | ||
| condenser | type | finned copper tube + low noise outer rotor fan | |
| cooling air flow(m3/h) | 10000 | ||
| evaporator | type | Shell and tube | |
| chilled fluid flow(m3/h) | 5.26 | ||
| volume(L) | 200 | ||
| inlet and outlet (inch) | 1-1/2 | ||
| pump | power (kw) | 1.5 | |
| flow rate(m3/h) | 8 | ||
| lift(m) | 20 | ||
| safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
| weight | kg | 450 | |
| dimension | mm | 1530*780*1630 | |
Industrial water chiller features:
1. Lower installed cost.The portable chiller system contains refrigeration circuit, water tank, pumps, and necessary components, it's pre-assembled and factory-tested package units, less pipes installation and lower installation cost than water-cooled chiller.
2. Easy Maintenance.This air cooled chiller no need cooling tower installation, water treatment, chiller condenser-tube cleaning and cooling tower mechanical maintenance.
3.Accurate temperature control. Industrial chiller small is multiple temperature control precisions to satisfy different cooling demands, water temperature can be accurate to ±1 ℃.
4. High Efficiency.The central chiller system continuously measures ambient and process conditions and will adjust to operate in the most efficient manner.
5. Multiple protection measures. Industrial chiller has high pressure, low pressure, overload, water level, phase sequence and other protections to ensure the safe operation of the chiller unit.
Water chiller service from manufacturer
1. All the chillers are provided with 12 months free maintenance service.
2. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
3. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
4. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
5. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
How to select the model of the chiller ?
Water chiller system
