| Brand Name: | ANGES |
| Model Number: | HBC-30(D) |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

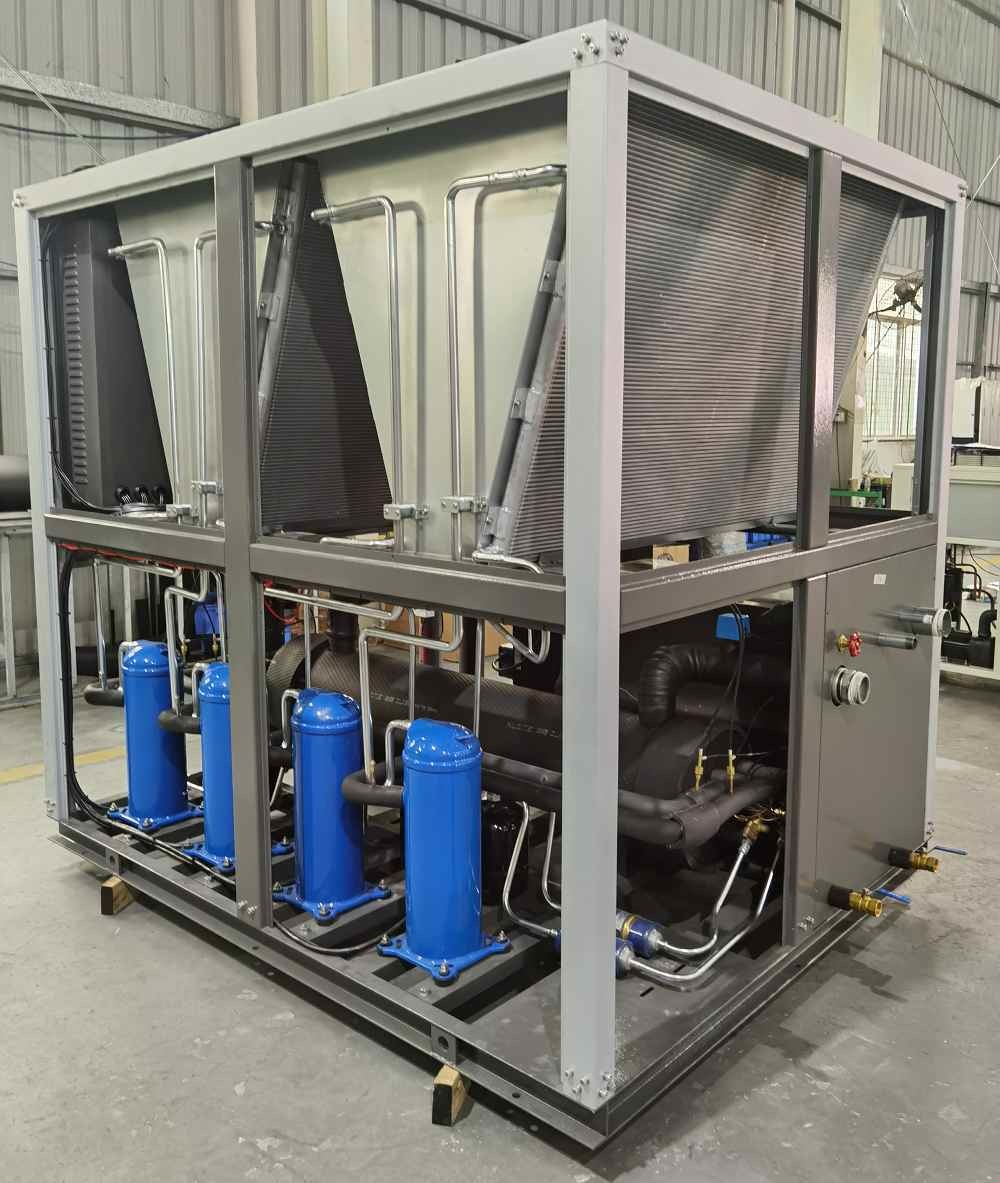

Portable Water Chiller 30Tr Air Cooled Scroll Chiller Supplier Energy Efficient Chiller Industrial Chiller Suppliers
Why do I need a industrial water chiller?
Industrial chillers are used for controlled cooling of products, mechanisms and machinery in a variety of industries. A chiller removes heat from the process water and transfers it to air via a heat exchanger.Industrial water chiller can keep your equipment at a safe operating temperature and cool your components during processes to ensure the highest quality final products and reduce production cycle time.
Portable Water Scroll Chiller Specification
|
Model |
HBC-30(D) | ||
| nominal cooling capacity | kcal/h | 78088 | |
| kw | 90.8 | ||
| input power | kw | 29.64 | |
| power supply | 3PH/380V/50HZ | ||
| refrigerant | type | R410a | |
| type of control | Expansion valve | ||
| compressor | type | hermetic scroll | |
| power(kw) | 24.8 | ||
| condenser | type | finned copper tube + low noise outer rotor fan | |
| cooling air flow(m3/h) | 30000 | ||
| evaporator | type | Shell and tube | |
| chilled fluid flow(m3/h) | 15.66 | ||
| volume(L) | 220 | ||
| inlet and outlet pipe diameter (inch) | 2-1/2 | ||
| pump | power (kw) | 3 | |
| lift(m) | 22 | ||
| safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
| weight | kg | 1150 | |
| dimension | mm | 2000*1480*1950 | |
Portable Chiller Features
1. Air-cooled scroll chiller uses in small to medium cooling loads. Typically, available for 2.4 – 76 Tr, 8.5 – 270 kw for single chiller unit.
2. Environment-friendly refrigerant R407C, R410A, R404A, R134a, etc, which is no harm to the ozone layer.
3. SCHNEIDER brand electric components ensure stable running of the machine.
4. Imported stainless steel water pump featuring wide working range, low noise, reliable performance, no leaking and maintenance-free.
5. High quality stainless steel tank and pipelines ensure pure water, and easy to clean and maintain.
6. Static plastic spray outer casing with simple structure and elegant appearance.
Benefit of industrial process chiller applications
1. The ability to maintain constant and precise control of the process temperature.
2. The cooling fluid can be delivered directly to the application heat source to increased production speed and ensure efficiency production
3. Accurate temperature control capability, to ensure the highest quality final products.
4. Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.
What we will do before air cooled chiller delivery ?
1. After industrial chiller assembly, we will charge nitrogen for pressure maintaining testing for 24hrs, to check whether there is leakage in the chiller cooling system.
2. Drain the nitrogen,vacuum the chiller system and set up parameters, then power on chiller and charge refrigerant at the same time.
3. Debug and test the chiller unit.
4. After the chiller commissioning, cleaning and labelling chiller unit, then have pre-delivery inspection before packing with plywood cases to to ensure that the chiller can be in good condition during transit.
How to select the model of the chiller ?
1. We need to know the heat load of your process or chiller cooling capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day.
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
Air cooled industrial chiller installation and maintenance
Maintenance: Air-cooled chillers eliminate the need for cooling towers and no need water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
Installation: Most of the air-cooled chillers are packed systems which are including the air-cooled finned condenser, evaporator compressor and evaporator.Some of them are built-in water storage tank and pump,they are designed and configured at the factory for optimal performance and reliability, which reduces design and simplifies installation.
|
|
