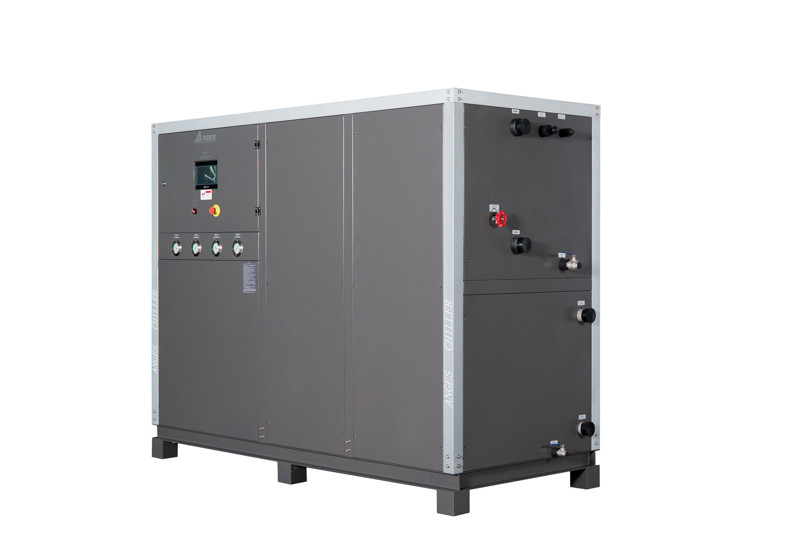

40tr Water Cooled Portable Chiller Hermetic Scroll

40tr Water Cooled Portable Chiller Hermetic Scroll

40tr water cooled portable chiller

water cooled portable chiller Scroll

40tr water chiller portable small

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water-cooled Type
Cooling Capacity:
136 Kw
40 Hp
Shell And Tube
Shell And Tube
Brand New
Dimension(l* W*h):
2400*1100*1980 Mm
12 Months
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
25 days
Payment Terms
T/T, L/C, T/T, L/C
Product Description

Water Cooled Chiller 40tr Portable Chiller Water Cooled Scroll Chiller 40tr Compact Water Chiller Refrigerator Chiller


Water cooled chiller

Water-cooled chiller systems have a cooling tower for refrigerant heat dissipation that higher efficiency than air-cooled chillers which use fans for refrigerant heat dissipation.

Water-cooled chillers are more efficient because they condense depending on the ambient temperature bulb temperature, which is lower than the ambient dry bulb temperature.

Normally water-cooled chillers are cheaper and more efficient, with the disadvantage of high water consumption, installation cost and maintenance.

This system has several essential components including:



Cooling tower

Condenser cooling pump

process chilled water pump


Specification for chilled water system


nominal cooling capacity Kcal/h 116960
kw 136
input power kw 30.4
power supply 3PH~380V/50HZ
refrigerant type R22
type of control Expansion valve
compressor type Hermetic scroll type
Power (kw) 26.4
condenser type Shell and tube
Cooling water flow(m3/h) 28.1
Inlet/outlet pipe caliber(inch) 2-1/2
evaporator type Shell and tube
Chilled water flow(m3/h) 23.4
Tank volume(L) 480
Inlet/outlet pipe chiller(inch) 2-1/2
Water pump Power(KW) 4
Lift(m) 22
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight kg 1600
Dimension mm 2400*1100*1980
Featurers for portable water cooled scroll chiller
  1. This 40Tr water chiller use four refrigerant circuits with 4 units famous brand scroll compressor.Scroll compressor has the advantages of small volume, low noise, light weight, small vibration, low energy consumption, long life and reliable operation.
  2. This 40ton water cooled chiller can be a central chiller to cool several processes,easy installation and operation with lower cost.
  3. High efficient shell and tube type evaporator,built-in stainless steel 304 water tank,easy to install and use.
  4. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  5. This industrial water-cooled chiller equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-30C.
  6. This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.

Benefits of an industrial water chiller

  1. The ability to maintain constant and precise control of the process temperature.
  2. The cooling fluid can be delivered directly to the application heat source to increased production speed and ensure efficiency production
  3. Accurate temperature control capability, to ensure the highest quality final products.
  4. Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.

Water chiller service from manufacturer

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
