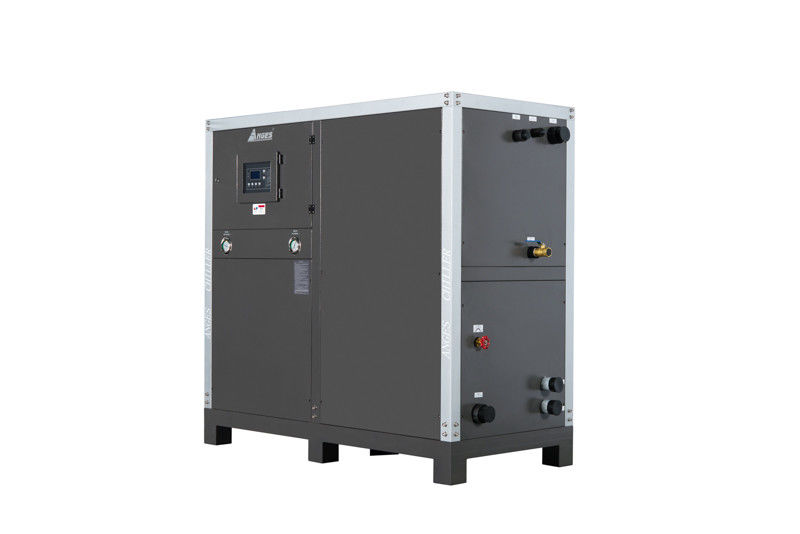

Water Cooled Inverter Water Chiller 12 Ton Portable Recirculating Chiller
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | Inverter Chiller |
| Minimum Order Quantity | 1 |
| Delivery Time | 25 days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Water Cooled Inverter Chiller | Refrigerant | R134a/R407c/R410a |
|---|---|---|---|
| Cooling Capacity | 12HP | Compressor Type | Inverter Scroll Chiller |
| Pump | 2bar- 6bar | Evaporator | Shell And Tube |
| Condenser | Shell And Tube ,Plater Heat Exchanger | Application | Industrial Cooling Solutions |
| High Light | Water Cooled Inverter Water Chiller,Inverter Water Chiller 12 Ton,12 Ton water cooled portable chiller |
||
Product Description
VFD Chiller Inverter Chiller Variable Speed Chiller 12ton Portable Water Cooled Chiller Recirculating Chiller
About the inverter chiller
Water chiller with non-inverter type compressor remains constant water temperature by adjusting the compressor's ON and OFF, which consumes more energy.
In inverter type water chiller,water temperature is adjusted by changing compressor motor speed instead of ON and OFF.
With Variable Frequency Drive (VFD) technology, water chillers are able to match the varying load requirements from production process to control running speed, regardless of requirement.
Specification
|
Item |
AWV-12 | |
| Nominal cooling capacity | Low frequency kcal/h | 8835 |
| High frequency kcal/h | 31806 | |
| Low frequency kw | 10.27 | |
| High frequency kw | 36.98 | |
| Input power | Low frequency kw | 3.59 |
| High frequency kw | 9.02 | |
| Power | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |
| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 2.09 | |
| High frequency power (kw) | 7.52 | |
| Condenser | Type | Shell and tube |
| Cooling water flow (m3/h) | 7.7 | |
| Inlet and outlet pipe caliber(inch) | 2 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow (m3/h) | 6.4 | |
| T | Tank volume(L) | 180 |
| Inlet and outlet pipe caliber(inch) | 2 | |
| Pump | Power (kw) | 1.5 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 1320*710*1320 |
| Weight | kg | 500 |
Features and benefits of VFD water chiller
- Energy performance:Inverter technology can ensure the best chiller performance regardless of the cooling demand.. Inverter technology can ensure the best chiller performance. Chillers are able to run according to the heat load by adjust th speed of the compressor’s motor continuously which can result in consistent saving in operating costs.
- Capacity modulation adapts motor speed to vary load continuously, quickly, and smoothly for great comfort and reliability.
- Accurate temperature control:Advanced DC frequency conversion control technology is adopted to achieve high control accuracy, and the temperature control accuracy can reach ±0.1℃-±0.2℃.
- Low starting current:Frequency conversion soft start reduce the the impact of the power grid start, reduce the power distribution costs, safe and reliable in operation.
- High COP:The COP efficiency of water-cooled chiller is relatively high, which is used in industrial process cooling and large-scale construction projects.
- Faster cooling speed: compared with the fixed frequency unit cooling time increased by 50%.
Chiller service
- We are industrial chiller manufacturer since 2004, chiller service can be online support, video technical support, site service in some areas are available.
- On site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
- Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
