| Brand Name: | ANGES |
| Model Number: | Inverter Chiller |
| MOQ: | 1 |

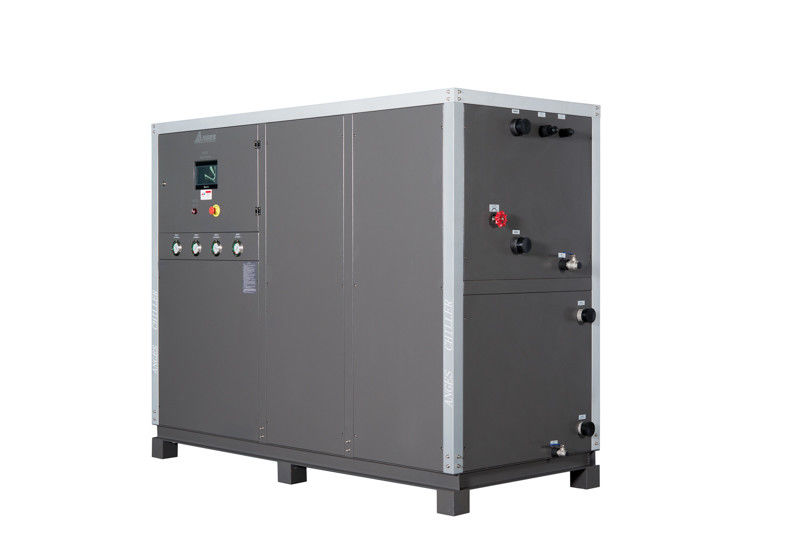

Inverter Water Chiller Variable-Speed Chiller Packaged Chiller Unit Inverter Water Cooling
About the inverter chiller
Inverter Compressor Chiller- Variable frequency, high efficiency,energy saving and consumption reduction.
With Variable Frequency Drive (VFD) technology, chillers are able to match the varying load requirements to control running speed, regardless of requirement. By using the inverter compressor solutions, significant energy savings can be achieved compared to traditional on-off compressors or mechanically-modulated technologies.
Specification
|
Model Item |
AWV-50(F) | |
| Nominal cooling capacity | Low frequency kcal/h | 35340 |
| High frequency kcal/h | 127225 | |
| Low frequency kw | 41.09 | |
| High frequency kw | 147.94 | |
| Input power | Low frequency kw | 12.36 |
| High frequency kw | 34.10 | |
| Power | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |
| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 8.36 | |
| High frequency power (kw) | 30.10 | |
| Condenser | Type | Shell and tube |
| Cooling water flow (m3/h) | 30.6 | |
| Inlet and outlet pipe caliber(inch) | 3 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow (m3/h) | 25.5 | |
| Tank volume(L) | 720 | |
| Inlet and outlet pipe caliber(inch) | 3 | |
| Pump | Power (kw) | 4 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 2400*1100*1900 |
| Weight | kg | 1400 |
Features and benefits
Variable-speed chillers offer an alternative for process cooling applications. They use variable-speed compressors coupled with advanced PLCs. The controller continuously monitors the heat load and adjusts the compressor speed for peak efficiency and temperature control.
Chiller service
We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
|
|
