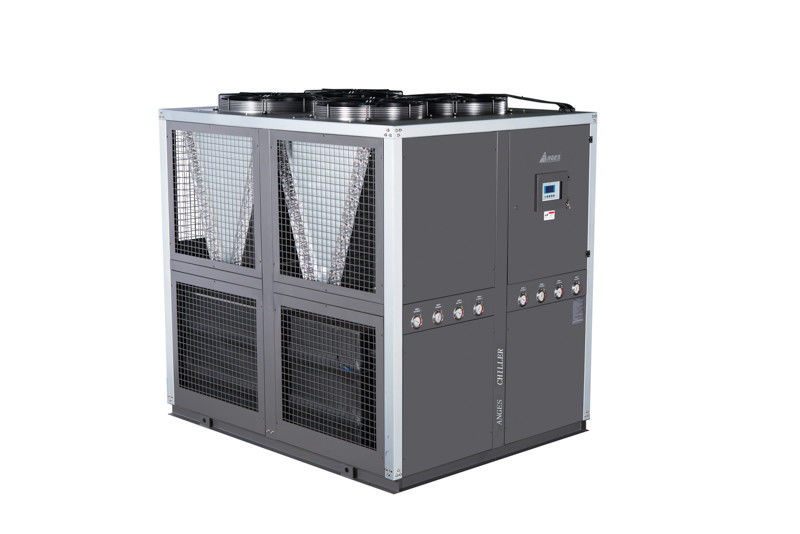

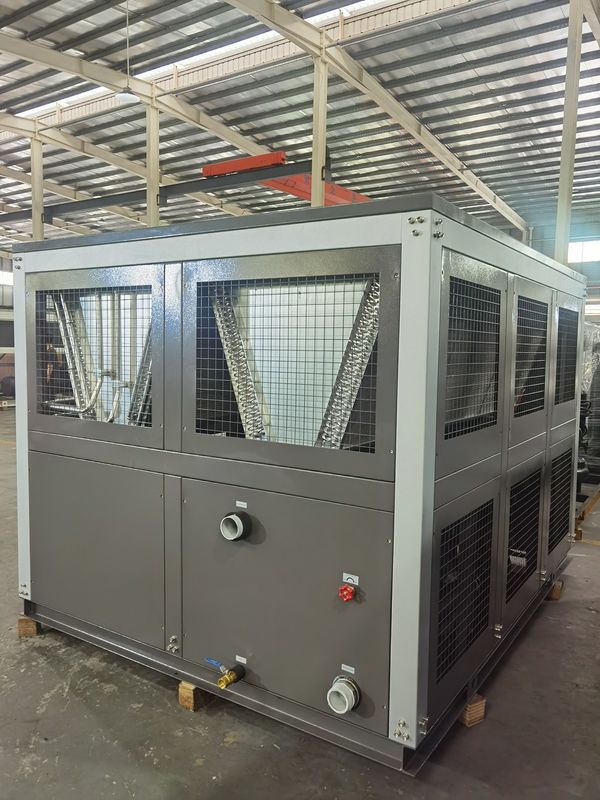

Scroll Air Cooled Inverter Chiller 50 Ton 50hp Portable

Scroll Air Cooled Inverter Chiller 50 Ton 50hp Portable

Scroll Air Cooled Inverter Chiller

Air Cooled Inverter Chiller 50 Ton

50hp air cooled industrial water chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

50HP

Contact Us

Request A Quote
Product Details
Type:
Air-Cooled
Refrigerant:
R134a/R407c/R410a
Cooling Capacity:
50Ton
Compressor Type:
Inverter Scroll Chiller
Chilled Water Flow:
23.29m³/h
Pump:
2.2bar
After-sales Service Provided:
Online Support, Video Technical Support, Overseas Service Center Available
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
25 days
Product Description

50 Ton Air Cooled Chiller Inverter Chiller 50hp Portable Water Chiller Inverter Scroll Chiller 50 Ton Air Water Chiller

Air cooled chiller- Variable frequency chiller(VFD chiller)
Air cooled chiller with inverter compressor use a variable frequency drive to slow down or speed up the motor running speed instead of the non- inverter compressor’s ON and OFF according to the heat load from production, so as to ensure the water chiller in the best operating conditions, to achieve the purpose of energy saving and consumption reduction.

Air cooled inverter chiller specifications

Item

ACV-50(F)
Nominal cooling capacity Low frequency kcal/h 32267
  High frequency kcal/h 116162
  Low frequency kw 37.52
  High frequency kw 135.07
Input power Low frequency kw 17.49
  High frequency kw 44.44
Power supply Variable frequency power supply
Refrigerant Type R410a
  Type of control Electronic expansion valve

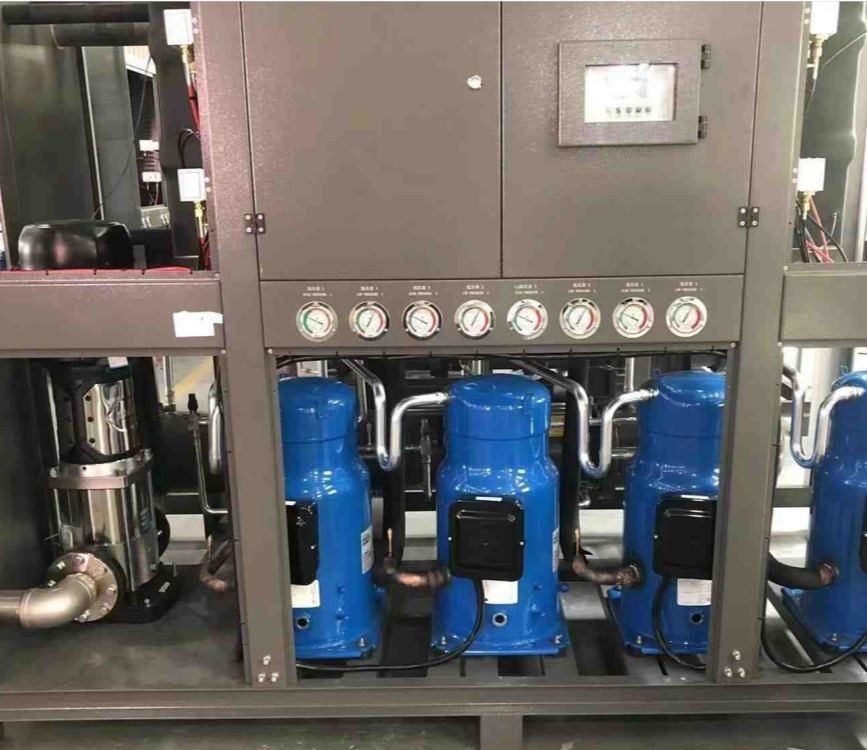

Compressor Type Hermetic motor driven compressor
  Low frequency power( kw) 10.37
  High frequency power (kw) 37.32
Condenser type Finned copper tube +low noise outer rotor fan
  power (kw) 3.12
  Cooling air flow (m3/h) 50000

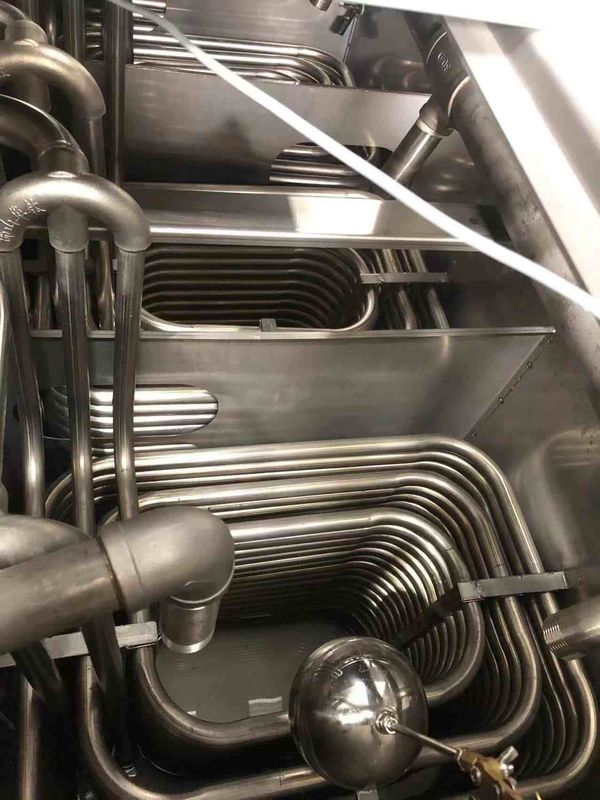

Evaporator Type Water tank with coil
  Chilled water flow (m3/h) 23.29
T Tank volume(L) 620
  Inlet and outlet pipe caliber(inch) 3
Pump Power (kw) 4
  Lift(m) 22
Safety protection compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing
Dimension mm 2350*1760*2100
Weight kg 1550


Features of air cooled water scroll chiller

  1. Advanced Configuration:Air-cooled inverter chillers from 3kw to 185kw equipped with world class components, such as Danfoss, Copeland and Panasonic scroll compressor, Schneider electric appliances and so on.
  2. Inverter compressor:The air cooled chiller uses famous brand interter compressor.Using frequency conversion drive technology, the energy efficiency of partial load of the unit has been greatly improved and the comprehensive performance coefficient (IPLV) has been improved.
  3. Energy saving:Air cooled invert chiller is able to run according to the heat load of production process by adjust the speed of the compressor’s motor continuously which can result in consistent saving in operating costs.
  4. High efficiency:The water chiller adopts DC frequency conversion compressor control technology and electronic expansion valve throttling, so that its energy efficiency rate is more than 30% higher than the ordinary fixed frequency unit.
  5. Longer service time: After the operation of the variable chiller and the load are exactly matched, the low frequency flat operation can be maintained, the system stability is further improved, the equipment failure is greatly reduced, and the service life of the equipment is prolonged.
  6. Accurate temperature control:Advanced DC frequency conversion control technology is adopted to achieve high control accuracy, and the temperature control accuracy can reach ±0.1℃-±0.2℃.

Benefits of an industrial water chller

  • Industrial water chiller can reduce downtime and improve productivity
  • Chiller has accurate temperature control capability, the chilled water temperature can be accurate to ±0.1
  • Industrial chiller is usually closed-loop systems, which can save water through recirculation cooling
  • Water chiller applied in Plastic and Rubber industry.It can accurately control the molding temperature and shorten the molding cycle.
  • Decrease equipment depreciation and degradation to cut down on operating expenditures.

How to select the model of the chiller ?

  • We need to know the heat load of your process or chiller cooling capacity.
  • Required water temperature, water pressure and flow rate.
  • Application and power supply in local.
  • Max. Ambient temperature in summer day
  • Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
