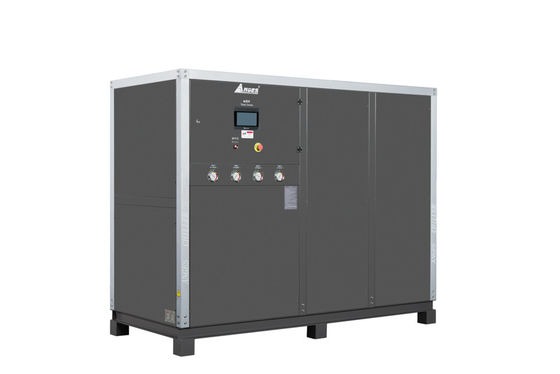

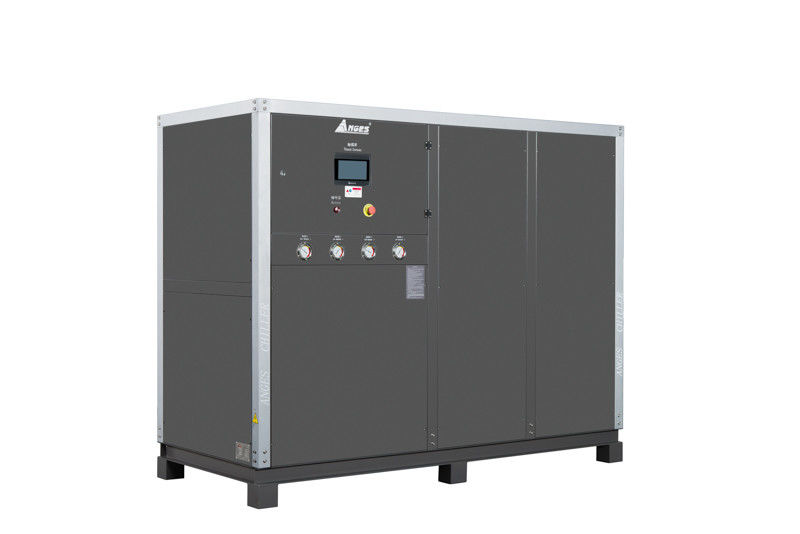

VFD Scroll Inverter Water Chiller 25HP Water Cooled
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | Inverter Chiller |
| Minimum Order Quantity | 1 |
| Delivery Time | 25 days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Water Cooled Inverter Chiller | Refrigerant | R134a/R407c/R410a |
|---|---|---|---|
| Cooling Capacity | 25HP | Compressor Type | Inverter Scroll Chiller |
| Pump | 2bar- 6bar | Evaporator | Shell And Tube |
| Condenser | Shell And Tube ,Plater Heat Exchanger | Application | Industrial Cooling Solutions |
| High Light | Scroll Inverter Water Chiller,Inverter Water Chiller 25HP,Water Cooled Inverter Chiller |
||
Product Description
Water Cooled Chiller Inverter Water Chiller VFD Chiller Water Cooled Scroll Chiller Modular Chiller
About the inverter chiller
Variable-speed chillers offer an alternative for process cooling applications.The VFD chiller continuously monitors the heat load and adjusts the compressor speed for peak efficiency and temperature control.
Water chiller with non-inverter type compressor remains constant water temperature by adjusting the compressor's ON and OFF, which consumes more energy.
In inverter type water chiller,water temperature is adjusted by changing compressor motor speed instead of ON and OFF.
With Variable Frequency Drive (VFD) technology, water chillers are able to match the varying load requirements from production process to control running speed, regardless of requirement.
Specification
|
Item |
AWV-25(D) | |
| Nominal cooling capacity | Low frequency kcal/h | 17670 |
| High frequency kcal/h | 63612 | |
| Low frequency kw | 20.55 | |
| High frequency kw | 73.97 | |
| Input power | Low frequency kw | 6.38 |
| High frequency kw | 17.25 | |
| Power | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |
| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 4.18 | |
| High frequency power (kw) | 15.05 | |
| Condenser | Type | Shell and tube |
| Cooling water flow (m3/h) | 15.3 | |
| Inlet and outlet pipe caliber(inch) | 2 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow (m3/h) | 12.8 | |
| T | Tank volume(L) | 350 |
| Inlet and outlet pipe caliber(inch) | 2 | |
| Pump | Power (kw) | 2.2 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 1850*810*1620 |
| Weight | kg | 900 |
Features and benefits of water cooled chiller
- Energy saving. Chillers are able to run according to the heat load of production lines by adjust th speed of the compressor’s motor continuously which can result in consistent saving in operating costs.
- Capacity modulation adapts motor speed to vary load continuously, quickly, and smoothly for great comfort and reliability.
- Accurate temperature control. Advanced DC frequency conversion control technology is adopted to achieve high control accuracy, and the temperature control accuracy can reach ±0.1℃-±0.2℃.
- Rapid cooling.Inverter chiller can run the compressor at high speed. As a result, it can cool water faster.
- Low noise operation.The inverter chiller runs at low speed, the compressor is also comparatively silent.
How to select the model of the chiller?
- We need to know the heat load of your process or chiller cooling capacity.
- Required water temperature, water pressure and flow rate.
- Application and power supply in local.
- Max. Ambient temperature in summer day
- Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
Chiller service
We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
