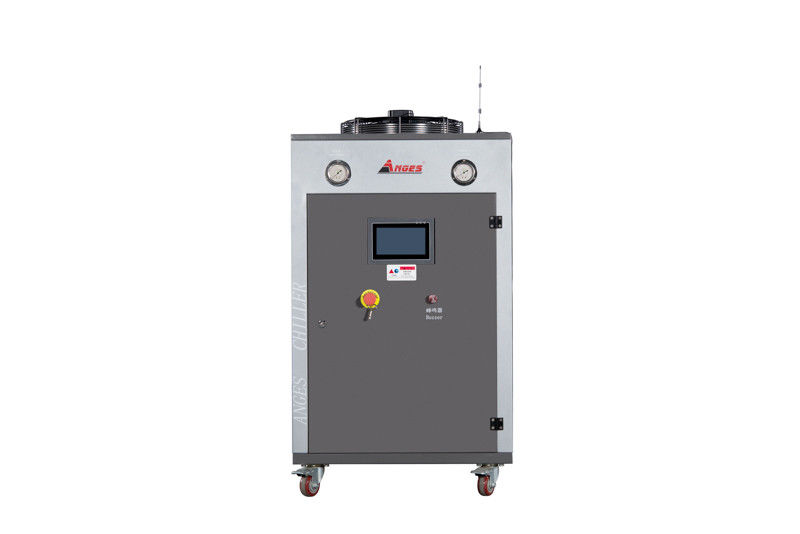

Variable Speed Inverter Chiller

Variable Speed Inverter Chiller

Variable Speed Inverter Chiller

3 ton Inverter Chiller

3 ton Water Chiller Systems

Place of Origin:

China

Brand Name:

ANGES

Model Number:

Inverter Chiller

Contact Us

Request A Quote
Product Details
Type:
Water Cooled Inverter Chiller
Refrigerant:
R410a, R134a, R407c
Cooling Capacity:
3ton
Compressor Type:
Inverter Scroll Chiller
Pump:
2bar- 6bar
Evaporator:
Shell And Tube, ,Plater Heat Exchanger
Condenser:
Shell And Tube
Application:
Industrial Cooling Solutions
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
25 days
Product Description

Water Chiller Industrial Inverter Chiller Variable Speed Chiller Inverter Compressor Chiller Energy Saving Inverter Chiller



About the inverter chiller

An inverter is energy saving technology, it can reduce wasted operation during industri process coolng by efficiently controlling motor speed. The inverter chillers use variable-speed compressor coupled with advanced PLC. The controller continuously monitors the heat load of the production process and to slow down or speed up the compressor motor for peak efficiency and temperature control.

With this technology, the inverter chillers with outstanding part load and seasonal efficiency, with a great energy saving solution.



Working principle: Inverter compressors operate at different speeds generating a modulated refrigerant mass oil flow and cooling output.



Specification

Item

AWV-3
Nominal cooling capacity Low frequency kcal/h 2485
  High frequency kcal/h 8947
  Low frequency kw 2.89
  High frequency kw 10.40
Input power Low frequency kw 0.98
  High frequency kw 2.55
Power Variable frequency power supply
Refrigerant Type R410a
  Type of control Electronic expansion valve
Compressor Type Hermetic motor driven compressor
  Low frequency power( kw) 0.61
  High frequency power (kw) 2.18
Condenser Type Shell and tube
  Cooling water flow (m3/h) 2.2
  Inlet and outlet pipe caliber(inch) 1
Evaporator Type Water tank with coil
  Chilled water flow (m3/h) 1.8
T Tank volume(L) 60
  Inlet and outlet pipe caliber(inch) 1
Pump Power (kw) 0.37
  Lift(m) 20
Safety protection compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing
Dimension mm 1040*500*940
Weight kg 130



Variable-speed chillers offer an alternative for process cooling applications. They use variable-speed compressors coupled with advanced PLCs. The controller continuously monitors the heat load and adjusts the compressor speed for peak efficiency and temperature control.
Features and benefits

  1. Energy saving. Inverter technology can ensure the best chiller performance. Chillers are able to run according to the heat load by adjust th speed of the compressor’s motor continuously which can result in consistent saving in operating costs.
  2. Capacity modulation adapts motor speed to vary load continuously, quickly, and smoothly for great comfort and reliability.
  3. Accurate temperature control. Advanced DC frequency conversion control technology is adopted to achieve high control accuracy, and the temperature control accuracy can reach ±0.1℃-±0.2℃.
  4. Low starting current.Frequency conversion soft start reduce the the impact of the power grid start, reduce the power distribution costs, safe and reliable in operation.
  5. Low acoustic level with variable-speed technology
  6. The COP efficiency of water-cooled chiller is relatively high, which is used in industrial process cooling and large-scale construction projects.

Chiller service

We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.

Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
