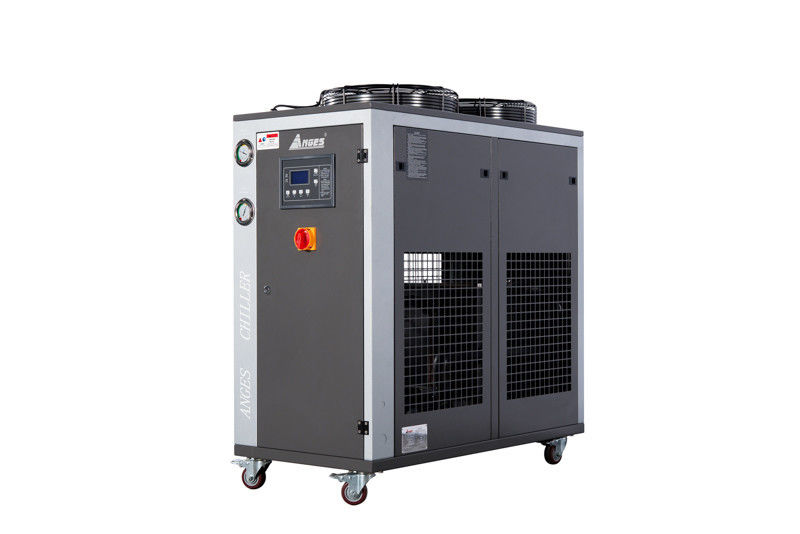

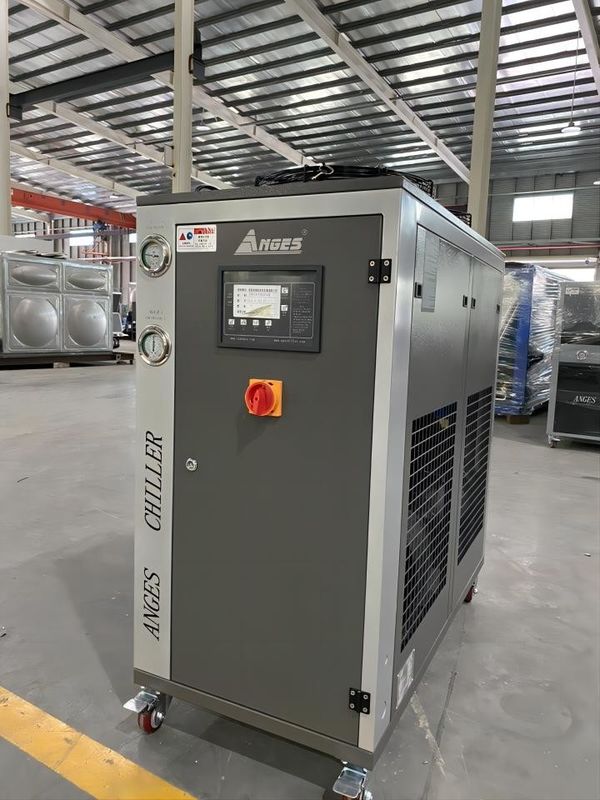

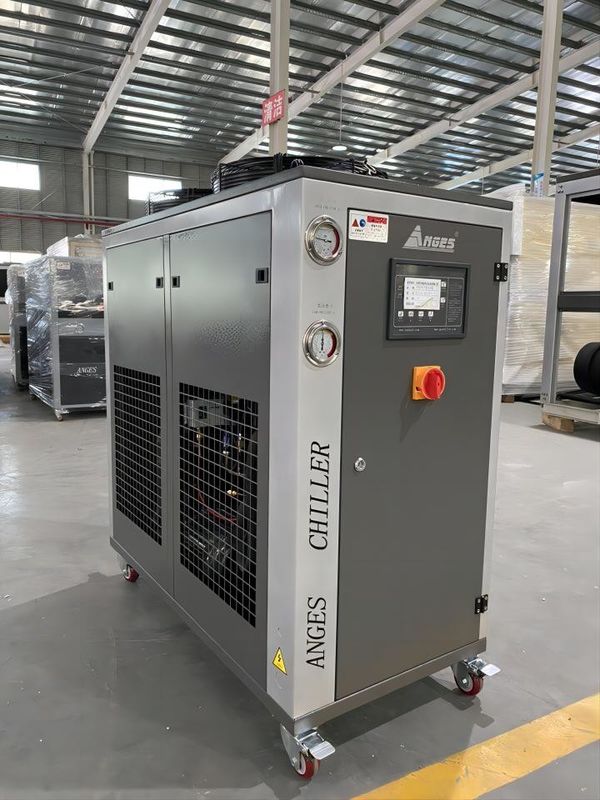

5HP Air Cooled Chiller , Industrial Water Chiller for Injection Molding Machines

5HP Air Cooled Chiller , Industrial Water Chiller for Injection Molding Machines

Injection Molding Machines Water Chiller

Industrial Water Chiller

5HP Air Cooled Chiller

Place of Origin:

China

Brand Name:

ANGES/SZAGS

Certification:

CE/ISO9001

Model Number:

ACK-20(D)

Chat Now
Chat Now
Product Details
Type:
Air Cooled Sroll Type
Cooling Capacity:
14.5kw
Compressor Typetype:
Danfoss/Panosonic/Copeland/LG
Refrigerant:
R410A/R407C/R134A/R22
Condenser:
Finned Copper Tube + Low Noise Outer Rotor Fan
Water Tank:
30L/60L
Voltage:
3PH~220V/380/415V~50HZ/60HZ
Dimension(l*w*h):
1140*560*1250
Weight:
180kg
Temperature Range:
5℃ ~ 35℃
Application:
Industrial Cooling Solutions,Plastic & Rubber / Chemical Etc / Welding
Compressor Type:
Scroll Type
After-sales Provided:
24hours Online Support/Video Technical Support/Overseas Third-party Support Available And Etc.
Condition:
New Brand
Highlight:

Injection Molding Machines Water Chiller

,

Industrial Water Chiller

,

5HP Air Cooled Chiller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Plywood case
Delivery Time
10-35 days
Payment Terms
T/T,L/C
Supply Ability
600 sets/ month
Product Description

5HP Air Cooled Chiller Top Industrial Water Chiller for  Injection Molding Machines


The benefits of using chiller:

  • Efficient Cooling: Chillers deliver reliable and consistent cooling, maintaining stable operating temperatures for a wide range of industrial processes and equipment.

  • Energy Efficiency: Equipped with advanced energy-saving technologies, modern chillers minimize energy consumption and reduce operating costs.

  • Precise Process Control: With accurate temperature regulation, chillers ensure optimal conditions for specific applications, enhancing product quality and uniformity.

  • Equipment Longevity: By managing temperatures effectively, chillers protect sensitive equipment from overheating and damage, extending its lifespan and lowering maintenance needs.

  • Eco-Friendly Solutions: Utilizing refrigerants with low environmental impact, chillers support sustainability by reducing greenhouse gas emissions and limiting ozone depletion.

Technical Parameters of Industrial Air-cooled Chiller

                                                                                         Model

Item

ACK-5

nominal cooling capacity

kcal/h

12470



kw

14.5

input power

kw

5.53

power supply

3PH 380V 50Hz

refrigerant

type

R407C



type of control

capillary

compressor

type

hermetic scroll



power(kw)

4.4

condenser

type

finned copper tube + low noise outer rotor fan



fan power(kw)

0.38



cooling air flow (m3/h)

5000

evaporator

type

shell and tube



chilled fluid flow (m3/h)

2.5



volume (L)

30



inlet and outlet pipe diameter (inch)

1

water pump

power (kw)

0.75



lift (m)

20

safety protection

compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection.

weight

kg

180

dimension

mm

1140*560*1250

Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.


FAQ

1.How does a chiller system work?

The chiller operates with two circulations: one involves the circulation of process water, while the other entails the circulation of refrigerant gas. Heat absorbed from the process is transferred to the refrigerant circulation, and then expelled to either air or water.


2.How to calculate cooling capacity for chillers?

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)


3. How to maintain the chiller?
1.Check the chilled water temperature at the inlet and outlet.
2.Inspect the condenser water temperature at the inlet and outlet.
3.Monitor the compressor's power consumption and current.
4.Verify the oil level and temperature in the sump.
5.Measure the pressures of the condenser and evaporator.
6.Record and check the oil pressure.
7.Listen for any unusual noise or vibration in the system.


4. SZAGS/ANGES Chiller service
1.12-Month Free Maintenance – All chillers come with a one-year complimentary maintenance service.
2.Comprehensive Technical Support – We provide technical consultations, chiller commissioning assistance, professional training, and maintenance guidance to ensure smooth operation.
3.On-Site Service Availability – When required, after-sales engineers can offer on-site support upon mutual agreement. In certain regions, local dealers ensure fast and convenient service.
4.Rapid Spare Parts Supply – We promptly provide essential spare parts for air and water chillers to maintain uninterrupted operation. Upon agreement, select wear-and-tear parts can be supplied for backup.
5.Lifetime Maintenance Support – Beyond the warranty period, we offer long-term maintenance tracking and supply replacement parts at cost price to ensure continued equipment reliability.
