| Brand Name: | ANGES |
| Model Number: | AC-20（D） |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

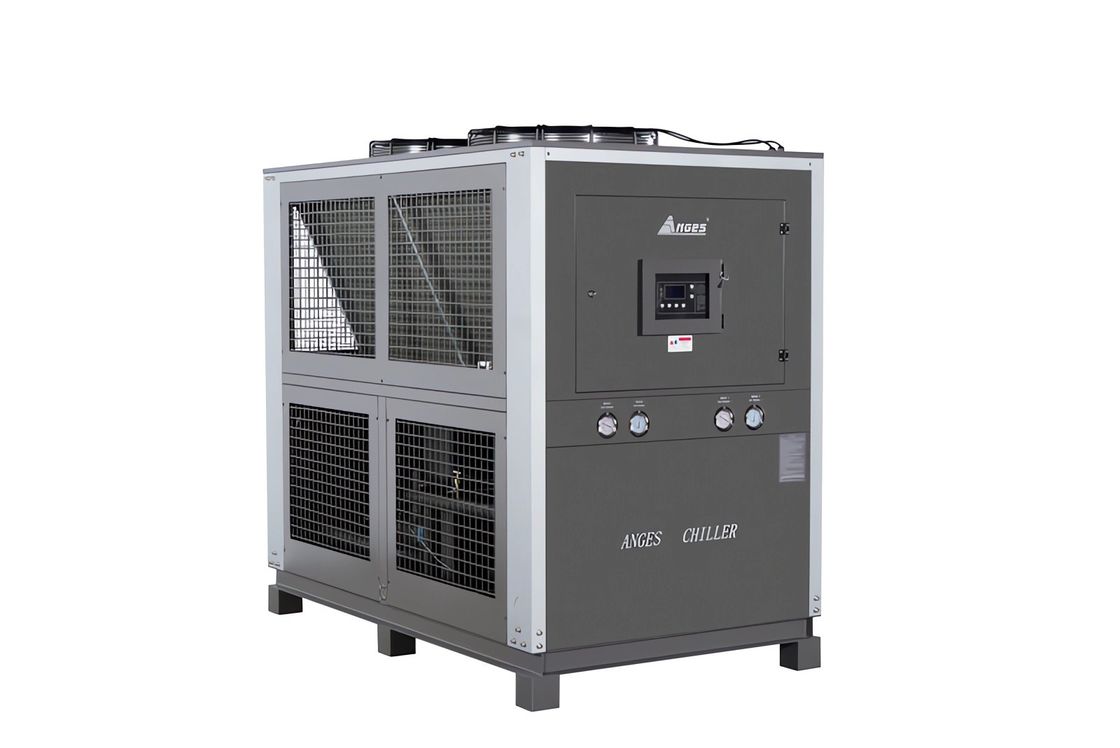

20ton Air Cooled Industrial Water Chiller for Extruder Machine
Extruder is a plastic molding equipment. It is mainly used for various extruded plastic products, such as PE, PP, PVC, ABS, etc. The sound temperature generated during the production process will make demoulding difficult and the molding slow, so a cooling water system (water pool, cooling tower, chiller) is needed to take away the heat of the extruder.
Specification
|
Model Item |
AC-20(D) | |
| Nominal cooling capacity | Kcal/h | 51032 |
| kw | 59.3 | |
| Input power | kw | 20.6 |
| Power supply | 3PH/380V/50HZ | |
| Refrigerant | Type | R134A |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 16.84 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Fan | Power(kw) | 1.56 |
| Cooling air flow | 20000 | |
| Evaporator | Type | 316 S.S water tank with coil |
| Chilled water flow(m3 /h) | 10.1 | |
| Inlet/outlet pipe chiller( inch) | 2 | |
| Tank volume(L) | 350 | |
| Water pump | Flow(m3 /h) | 15 |
| Power(kw) | 2.2 | |
| Lift(m) | 22.5 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 835 |
| Dimension | mm | 2000*1130*1820 |
Benefits of chillers
THE AFTER-SALE SERVICE OF ANGES CHILLER!
FAQ
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.How can we do for chiller maintenance ?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
|
|
