| Brand Name: | ANGES |
| Model Number: | ACK-30（D） |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

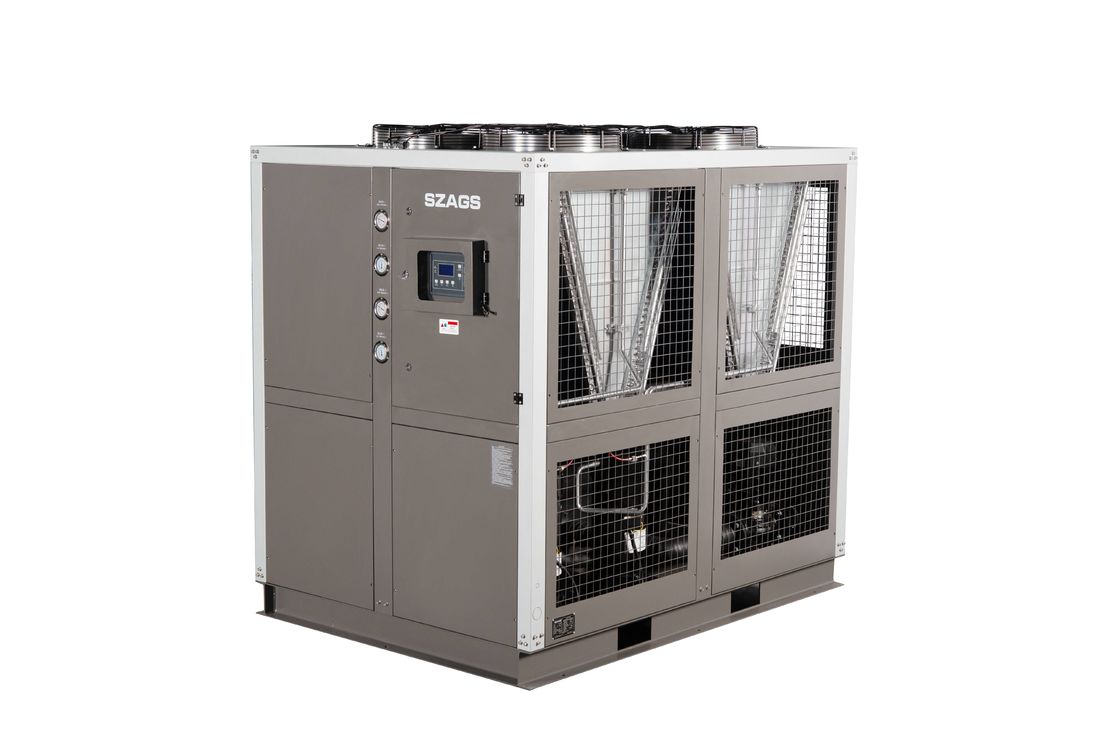

30ton Industrial Water Chiller Units For Plastic Extrusion Line 92.4Kw
The working principle of using a chiller with an extruder involves rapidly cooling the extruded plastic material after it has been heated, ensuring quick solidification and maintaining its shape. This cooling system, often utilizing a chiller or a cooling circulation system, can directly or indirectly contact the extruded product to regulate temperature and speed by adjusting the flow rate and temperature of the cooling medium.
Specification
|
Item Model |
ACK-30(D) | |
| Nominal cooling capacity | Kcal/h | 76024 |
| kw | 92.4 | |
| Input power | kw | 30.76 |
| Power supply | 3PH 380V 50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll |
| Power(kw) | 24.92 | |
| Condenser | Type | Finned copper tube + low noise outer rotor fan |
| Power(kw) | 1.84 | |
| Cooling air flow(m3/h) | 30000 | |
| Evaporator | Type | Shell and tube |
| Chilled fluid flow(m3/h) | 15.93 | |
| Volume(L) | 220 | |
| Inlet/outlet pipe caliber(inch) | 2-1/2 | |
| Pump | Power(kw) | 2.2 |
| Flow (m3/h) | 2.2 | |
| Lift(m) | 20 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| Weight | kg | 1300 |
| Dimension | mm | 2000*1480*1950 |
Why choose a chiller to cool the injection molding machine
THE AFTER-SALE SERVICE OF ANGES CHILLER!
FAQ
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.How can we do for chiller maintenance ?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
|
