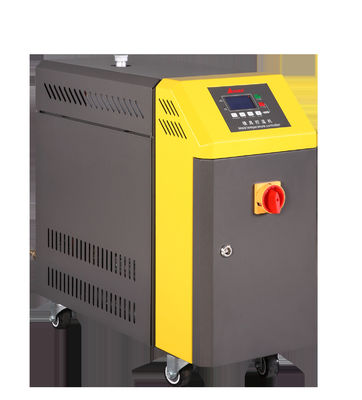

9kw Oil Type Injection Molding Temperature Controller

9kw Oil Type Injection Molding Temperature Controller

Oil Type injection molding temperature controller

9kw injection molding temperature controller

9kw mold heater controller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Oil Type
Heat Transfer Medium:
Heating Power:
Oil Temperature:
40 ℃ To 350℃
Plastic Injection Molding
Cooling Method:
Indirect Cooling
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C
Product Description

Mold Temperature Controller 9kw Oil Type Mold Temperature Controller Temperature Control In Plastic Injection Molding

Anges temperature controllers are specially designed to control the temperature of plastic injection mold, to maintain constant temperature of Mould during the Moulding process.It is engineered to provide precise temperature control.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature  can be 40-300°C.


Item AM-9HT
Heat transfer medium Oil
Max.Temperature 350
Heating power KW 9
Power 3PH-380V-50HZ
Pump power HP 1.5
Pump max.flow rate L/min 53
Pump max.pressure bar 5.7
Medium volume L 13
Cooling method Indirect cooling
Mould Cooling lnch 3/8"*2
Inlet/outlet size lnch 1"/1"
Dimension(mm) H 780
W 336
D 810
Net weight kg 75

Advantages of Mould Temperature Controller
  1. Simple and compact design, and easy to move

  2. Suitable for all kinds of mould for Injection Moulding Machine

  3. Precise temperature control to ensure the high quality of plastic injection molding products

  4. Easy connection for supply & return cooling circuit, by hose nipple

Features of Water type mold temperature controller

  1. The temperature controller adopts the touch mode internal storage, automatic calculation, accurate and reliable control within ±2℃, save more than 35% power;

  2. Two sets of electric heat pipe, can be used alone or jointly;

  3. Fast heating and cooling time, stable temperature

  4. The electric heating cylinder is made of stainless steel;

  5.  Perfect safety protection and fault indication system;
