Mould Temperature Controller
>

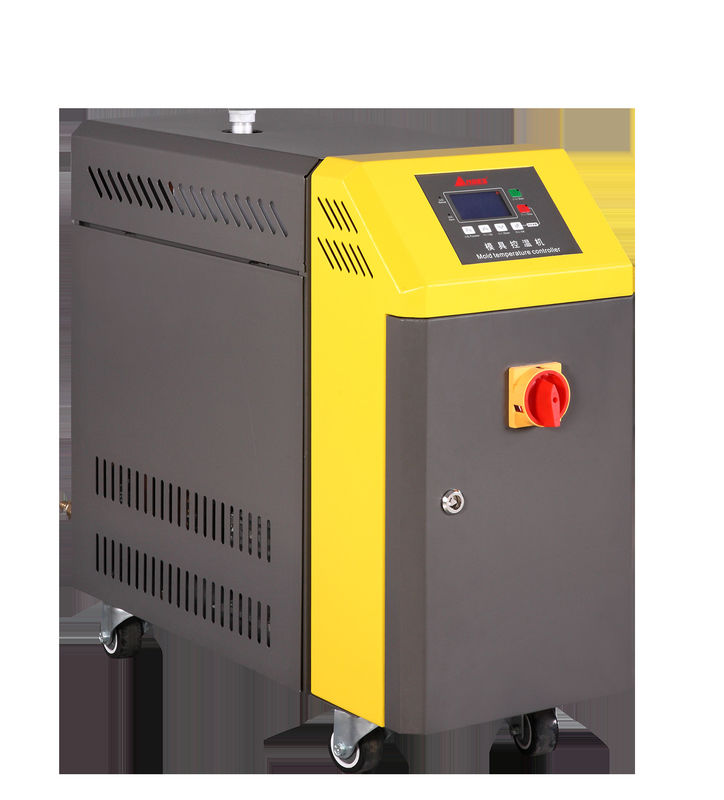

24kw Mold Temperature Control Unit Direct Cooling

24kw Mold Temperature Control Unit Direct Cooling

Brand Name: ANGES
Model Number: AM-24W
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Type:
Water Tydpe
Heat Transfer Medium:
Water
Heating Power:
24kw
Water Temperature:
40 ℃ To 120 ℃
Application:
Plastic Injection Molding
Cooling Method:
Direct Cooling
Highlight:

24kw mold temperature control unit

,

mold temperature control unit Direct Cooling

,

24kw mold temperature machine

Product Description

Water Type Mold Temperature Controller Industrial Temperature Controller Temperature Control Machine Mold Temp Controll​

The mold temperature controller is mainly used for mold heating and keeps a constant temperature, as well as the fields with the same requirements.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature  can be 40-300°C.

Item AM-24W
Heat transfer medium Water
Max.Temperature 120
Heating power KW 24
Power 3PH-380V-50HZ
Pump power HP 2
Pump max.flow rate L/min 235
Pump max.pressure bar 2.4
Medium volume L 8
Cooling method Direct cooling
Mould Cooling lnch 3/8"*4
Inlet/outlet size lnch 1"/1"
Dimension(mm) H 715
  W 453
  D 882
Net weight kg 90



Advantages of Mould Temperature Controller

  1. Simple and compact design, and easy to move

  2. Suitable for all kinds of mould for Injection Moulding Machine

  3. Precise temperature control to ensure the high quality of plastic injection molding products

  4. Easy connection for supply & return cooling circuit, by hose nipple

Features of Water type mold temperature controller

  1. Adopted microcomputer controller ,easy to operate. P.I.D.dual-stage temperature control system maintains an accuracy of +0.1°C.

  2. With sufficient safety production and alarm system.• Adopts high temperature coupling pump with no leakage of oil.

  3. Adopts indirect cooling method,which realizes fast heating, makes temperature controller more precise and stable.

  4. Main pipes are made of 304 stainless steel seamless tubes;o Equipped with 304 stainless steel high temperature sluice valve.

  5. With automatic shutdown cooling protection function etc.
