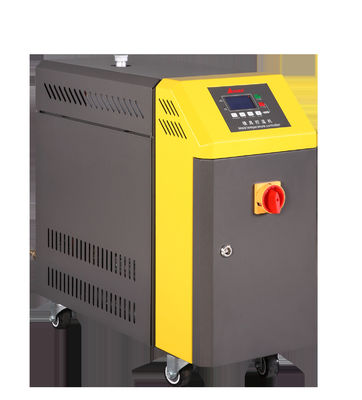

Industrial Water Type Mold Temperature Controller 9kw

Industrial Water Type Mold Temperature Controller 9kw

Industrial water type mold temperature controller

water type mold temperature controller 9kw

9kw mold heater controller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water Tydpe
Heat Transfer Medium:
Heating Power:
Water Temperature:
40 ℃ To 120 ℃
Plastic Injection Molding
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C
Product Description

Water Type Mold Temperature Controller Industrial Temperature Controller Temperature Control Machine Mold Temp Controll​

The mold temperature controller is mainly used for mold heating and keeps a constant temperature, as well as the fields with the same requirements.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature  can be 40-300°C.


Item AM-9PW
Heat transfer medium Water
Max.Temperature 150
Heating power KW 9
Power 3PH-380V-50HZ
Pump power HP 1
Pump max.flow rate L/min 165
Pump max.pressure bar 2.2
Medium volume L 6
Cooling method Indirect cooling
Mould Cooling lnch 3/8"*2
Inlet/outlet size lnch 1"/1"
Dimension(mm) H 745
  W 423
  D 946
Net weight kg 70
Advantages of Mould Temperature Controller
  1. Simple and compact design, and easy to move

  2. Suitable for all kinds of mould for Injection Moulding Machine

  3. Precise temperature control to ensure the high quality of plastic injection molding products

  4. Easy connection for supply & return cooling circuit, by hose nipple

Features of Water type mold temperature controller

  1. Adopted with microcomputer controller which is easy to operate. The temperature deviation is +0.1° C.

  2. Adopted with high efficiency water pump. It can keep accurate temperature level and is adaptable for production with precise molding.

  3. Multiple safety devices including high-pressure protection, overheat protection, inlet water pressure deficit protection, safety pressure relieving, automatic water supplying, boot automatically exhaust & shut down automatically cooling protection functions.

  4. Main pipes are made of 304 stainless steel seamless tubes .

  5. Temperature control range within 180°C (Optional for magnetic pump)
