Place of Origin:
China
Brand Name:
ANGES
Model Number:
9kw
Contact Us

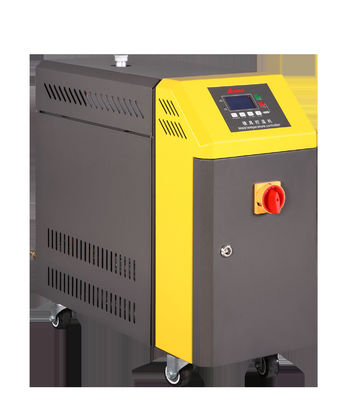

Mold temperature controllers are used to heat up mould and maintain at set temperature.
The use of mold temperature machine can reduce the preheating time of the mold, improve the surface quality of the finished product and fully automate the production. Improving die life is improving productivity.
| Model | AM-6W | AM-9W | AM-12W | AM-18W | AM-24W | AM-36W | |
| Heat transfer medium | Water | ||||||
| Max.Temperature | ℃ | 120 | |||||
| Heating power | KW | 6 | 9 | 12 | 18 | 24 | 36 |
| Power | 3PH-380V-50HZ | ||||||
| Pump power | HP | 0.5 | 1 | 0.5 | 1 | 2 | 3 |
| Pump max.flow rate | L/min | 42 | 56 | 98 | 165 | 235 | 315 |
| Pump max.pressure | bar | 2.8 | 3.8 | 2 | 2.2 | 2.4 | 2.6 |
| Medium volume | L | 3.2 | 3.2 | 4 | 4 | 8 | 8 |
| Cooling method | Direct cooling | ||||||
| Mould Cooling | lnch | 3/8"*2 | 3/8"*2 | 3/8"*4 | 3/8"*4 | 3/8"*4 | 3/8"*4 |
| Inlet/outlet size | lnch | 3/4"/3/4" | 3/4"/3/4" | 1"/1" | 1"/1" | 1"/1" | 1"/1" |
Dimension(mm) |
H | 645 | 645 | 715 | 715 | 715 | 715 |
| W | 373 | 373 | 453 | 453 | 453 | 453 | |
| D | 745 | 745 | 882 | 882 | 882 | 882 | |
| Weight | Kg | 55 | 60 | 65 | 75 | 90 | 110 |
