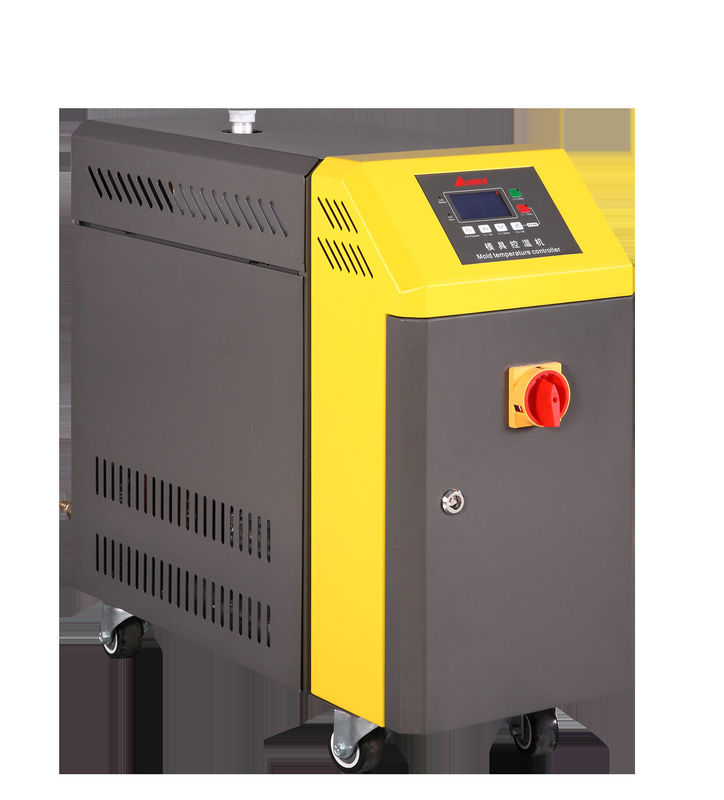

Industrial Mold Temperature Machine

Industrial Mold Temperature Machine

Industrial mold temperature machine

9kw mold temperature machine

Water type mould temp controller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water Tydpe
Heat Transfer Medium:
Heating Power:
Water Temperature:
40 ℃ To 120 ℃
Plastic Injection Molding
Cooling Method:
Direct Cooling
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C
Product Description

Water Type Mold Temperature Controller Industrial Temperature Controller Temperature Control Machine Mold Temp Controll​

The mold temperature controller is mainly used for mold heating and keeps a constant temperature, as well as the fields with the same requirements.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature  can be 40-300°C.

Item AM-9W
Heat transfer medium Water
Max.Temperature 120
Heating power KW 9
Power 3PH-380V-50HZ
Pump power HP 1
Pump max.flow rate L/min 56
Pump max.pressure bar 3.8
Medium volume L 3.2
Cooling method Direct cooling
Mould Cooling lnch 3/8"*2
Inlet/outlet size lnch 3/4"/3/4"
Dimension(mm) H 645
  W 373
  D 745
Net weight kg 55
Advantages of Mould Temperature Controller
  1. With automatic shutdown cooling protection function etc.

  2. With temperature detecting indication of oil return.

  3. Multi-machine parallel is customized.

  4. Sufficient safety protection and visible alarm. easy for maintenance.

  5. Using isolated electronic control box, to extend the lives of electric appliances.

Features of Water type mold temperature controller

  1. Adopted microcomputer controller ,easy to operate.

  2. Main pipes are made of uni-body stainless steel. with uniform heating and low-loss.

  3. Equipped with 304 stainless steel high temperature sluice valve. with good heat resistant performance.

  4. With sufficient safety production and alarming system.

  5. Optional for high temperature magnetic pump with stable performance and no leakage.
