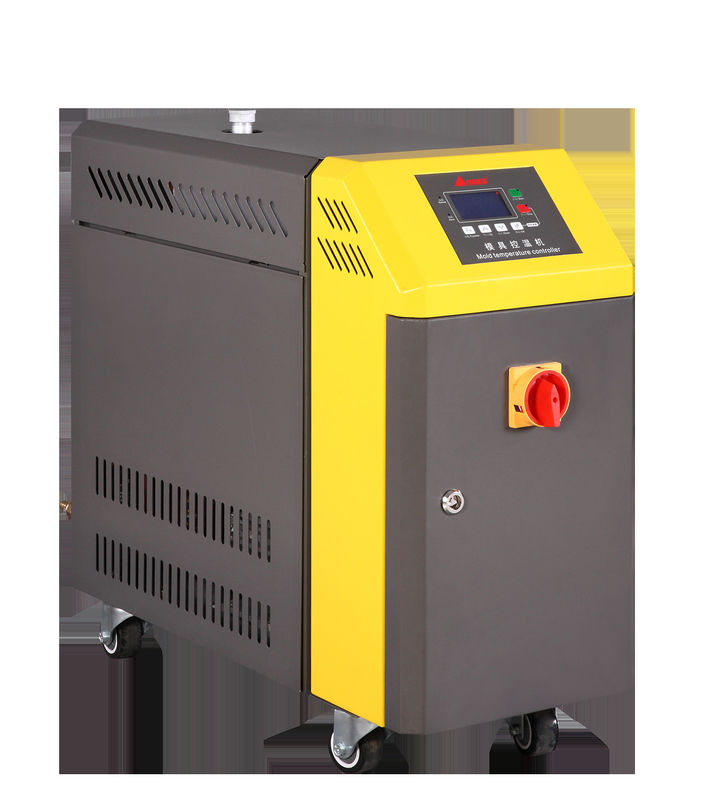

24kw Mould Temperature Controller Oil Type For Plastic Injection Molding

24kw Mould Temperature Controller Oil Type For Plastic Injection Molding

24kw Mould Temperature Controller

Mould Temperature Controller Oil Type

24kw mold controllers

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Oil Type
Heat Transfer Medium:
Heating Power:
Oil Temperature:
40 ℃ To 200℃
Plastic Injection Molding
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C
Product Description

Mold Temperature Controller 24kw Oil Type Mold Temperature Controller Temperature Control In Plastic Injection Molding

Anges temperature controllers are specially designed to control the temperature of plastic injection mold, to maintain constant temperature of Mould during the Moulding process.It is engineered to provide precise temperature control.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature  can be 40-300°C.


Item AM-24H
Heat transfer medium Oil
Max.Temperature 200
Heating power KW 24
Power 3PH-380V-50HZ
Pump power HP 2
Pump max.flow rate L/min 235
Pump max.pressure bar 2.4
Medium volume L 8
Cooling method Indirect cooling
Mould Cooling lnch 3/8"*4
Inlet/outlet size lnch 1"/1"
Dimension(mm) H 935
  W 413
  D 954
Net weight kg 130
Advantages of Mould Temperature Controller
  1. Temperature machine can also shorten the cycle time, reduce the cost of products.

  2. Secondly, the mold temperature machine must be able to make the temperature of the thermal conductivity fluid constant in the range of 1 DEG C -3 DEG C, according to the quality requirements of injection parts.

  3. The third is that the heat conducting fluid must have good heat transfer capacity, and most importantly, it must be able to import or export a large amount of heat in a short time.

Features of Water type mold temperature controller

  1. Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise moulds to achieve precise temperature control and high efficiency heat exchange.
  2. PID temperature control with high accuracy and stable temperature control, the accuracy is ±1°C within.
  3. AuMultiple safety devices including power reverse phase protection, pump overload protection, overheat protection low level protection and so on.tomatic alarming function, alarming and automatically stop when the system has the breakdown.
