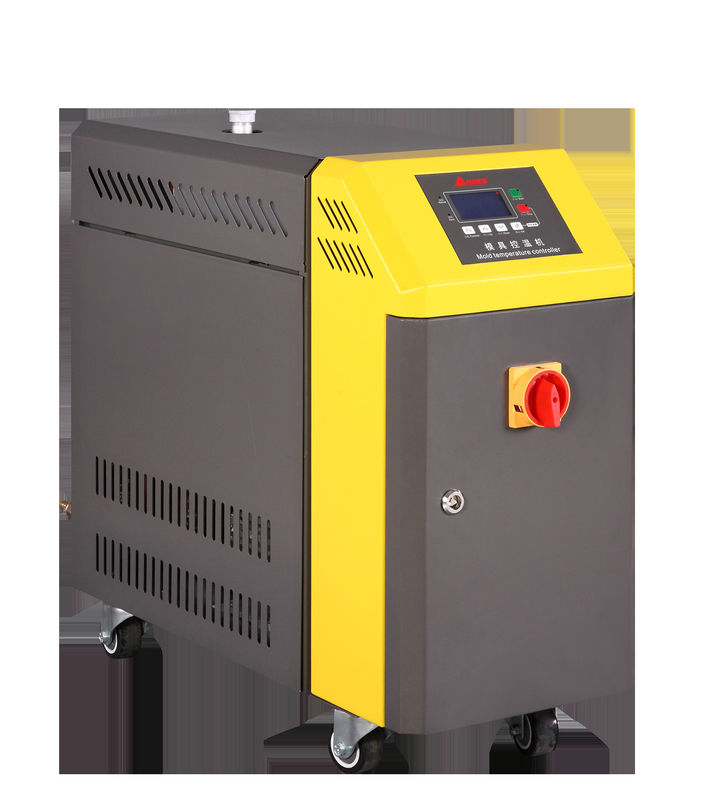

9kw Mold Temperature Controller Oil In Plastic Injection Molding

9kw Mold Temperature Controller Oil In Plastic Injection Molding

9kw mold temperature controller oil

mold temperature controller oil 9kw

9kw mold temperature controllers

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Oil Type
Heat Transfer Medium:
Heating Power:
Oil Temperature:
40 ℃ To 200℃
Plastic Injection Molding
Cooling Method:
Indirect Cooling
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C
Product Description

Mold Temperature Controller 9kw Oil Type Mold Temperature Controller Temperature Control In Plastic Injection Molding

Anges temperature controllers are specially designed to control the temperature of plastic injection mold, to maintain constant temperature of Mould during the Moulding process.It is engineered to provide precise temperature control.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature  can be 40-300°C.

Item AM-9H
Heat transfer medium Oil
Max.Temperature 200
Heating power KW 9
Power 3PH-380V-50HZ
Pump power HP 1
Pump max.flow rate L/min 56
Pump max.pressure bar 3.8
Medium volume L 3.2
Cooling method Indirect cooling
Mould Cooling lnch 3/8"*2
Inlet/outlet size lnch 3/4"/3/4"
Dimension(mm) H 685
  W 413
  D 687
Net weight kg 60


Advantages of Mould Temperature Controller

  1. Simple and compact design, and easy to move

  2. Suitable for all kinds of mould for Injection Moulding Machine

  3. Precise temperature control to ensure the high quality of plastic injection molding products

  4. Easy connection for supply & return cooling circuit, by hose nipple

Features of Water type mold temperature controller

  1. Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise moulds to achieve precise temperature control and high efficiency heat exchange.

  2. PID temperature control with high accuracy and stable temperature control, the accuracy is ±1°C within.

  3. AuMultiple safety devices including power reverse phase protection, pump overload protection, overheat protection low level protection and so on.tomatic alarming function, alarming and automatically stop when the system has the breakdown.

Working Principle

  1. Oil from the mold returns to the pump from the pipeline, where it is pressurized by the pump, conveyed to the heater, heated again, then returns to the mold in a repeating loop.

  2. During this process, if the oil temperature exceeds the set value, the system automatically activates the solenoid valve to enable cool water to lower the temperature indirectly until it reaches the system requirement. This is how a consistent temperature is maintained. If the temperature continues to increase and reaches the setpoint of EGO, or if the oil level falls below the setpoint, the system alarms and stops machine operation.
