Item		AM-18PW
Heat transfer medium	Water
Max.Temperature	℃	150
Heating power	KW	18
Power	3PH-380V-50HZ
Pump power	HP	3
Pump max.flow rate	L/min	315
Pump max.pressure	bar	2.6
Medium volume	L	7
Cooling method	Indirect cooling
Mould Cooling	lnch	3/8"*4
Inlet/outlet size	lnch	1"/1"
Dimension(mm)	H	745
	W	423
	D	946
Net weight	kg	95

Advantages of Mould Temperature Controller

Simple and compact design, and easy to move
Suitable for all kinds of mould for Injection Moulding Machine
Precise temperature control to ensure the high quality of plastic injection molding products
Easy connection for supply & return cooling circuit, by hose nipple

Features of Water type mold temperature controller

Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise moulds to achieve precise temperature control and high efficiency heat exchange.
PID temperature control with high accuracy and stable temperature control, the accuracy is ±1°C within.
AuMultiple safety devices including power reverse phase protection, pump overload protection, overheat protection low level protection and so on.tomatic alarming function, alarming and automatically stop when the system has the breakdown.
Mould temperature control machine imported temperature controller, automatic control, control of accurate to + / - 1 ºC, simple interface, real-time monitoring, with a variety of automatic protection function, and mold temperature detection, intelligent temperature control system, all units can be 24 hours non-stop operation,
Mould temperature control machine are widely used in: plastic injection, die-casting, rubber tire, chemical reaction kettle, textile, mixer and so on all walks of life.

Tags:

12kw Mould Temperature Controller

Mould Temperature Controller Water Type

12kw temperature control unit for injection molding

Products Details

Home > Products >

Mould Temperature Controller

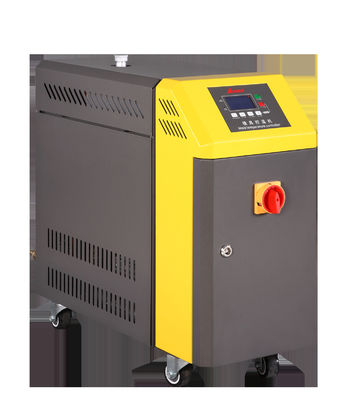

18kw Water Type Temperature Controller Injection Molding Machine

All Category

Industrial Water Chiller

Portable Water Chiller

Water Cooled Chiller

Screw Type Chiller

Air Cooled Screw Chiller

Water Cooled Screw Chiller

Water Cooled Central Chiller

Inverter Chiller

Air Cooled Inverter Chiller

Inverter Water Chiller

Glycol Chiller

Portable Glycol Chiller

Laser Chiller Unit

Heating And Cooling Chiller

Water Cooled Industrial Chiller

Industrial Chiller Integrated System

Cooling Towers

Mould Temperature Controller

Low Temperature Chiller

18kw Water Type Temperature Controller Injection Molding Machine

Brand Name:	ANGES
Model Number:	AM-18PW
MOQ:	1
Packaging Details:	Plywood case
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

ANGES

Model Number:

AM-18PW

Type:

Water Tydpe

Heat Transfer Medium:

Water

Heating Power:

18kw

Water Temperature:

40 ℃ To 120 ℃

Application:

Plastic Injection Molding

Cooling Method:

Indirect Cooling

Minimum Order Quantity:

Packaging Details:

Plywood case

Delivery Time:

15 days

Payment Terms:

T/T, L/C

High Light:

18kw temperature controller injection molding machine

Water Type temperature controller injection molding machine

mould temp controller 18kw

Product Description

Water Type Mold Temperature Controller Industrial Temperature Controller Temperature Control Machine Mold Temp Controll

The mold temperature controller is mainly used for mold heating and keeps a constant temperature, as well as the fields with the same requirements.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature can be 40-300°C.

Item		AM-18PW
Heat transfer medium	Water
Max.Temperature	℃	150
Heating power	KW	18
Power	3PH-380V-50HZ
Pump power	HP	3
Pump max.flow rate	L/min	315
Pump max.pressure	bar	2.6
Medium volume	L	7
Cooling method	Indirect cooling
Mould Cooling	lnch	3/8"*4
Inlet/outlet size	lnch	1"/1"
Dimension(mm)	H	745
	W	423
	D	946
Net weight	kg	95

Advantages of Mould Temperature Controller

Simple and compact design, and easy to move
Suitable for all kinds of mould for Injection Moulding Machine
Precise temperature control to ensure the high quality of plastic injection molding products
Easy connection for supply & return cooling circuit, by hose nipple

Features of Water type mold temperature controller

Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise moulds to achieve precise temperature control and high efficiency heat exchange.
PID temperature control with high accuracy and stable temperature control, the accuracy is ±1°C within.
AuMultiple safety devices including power reverse phase protection, pump overload protection, overheat protection low level protection and so on.tomatic alarming function, alarming and automatically stop when the system has the breakdown.
Mould temperature control machine imported temperature controller, automatic control, control of accurate to + / - 1 ºC, simple interface, real-time monitoring, with a variety of automatic protection function, and mold temperature detection, intelligent temperature control system, all units can be 24 hours non-stop operation,
Mould temperature control machine are widely used in: plastic injection, die-casting, rubber tire, chemical reaction kettle, textile, mixer and so on all walks of life.
