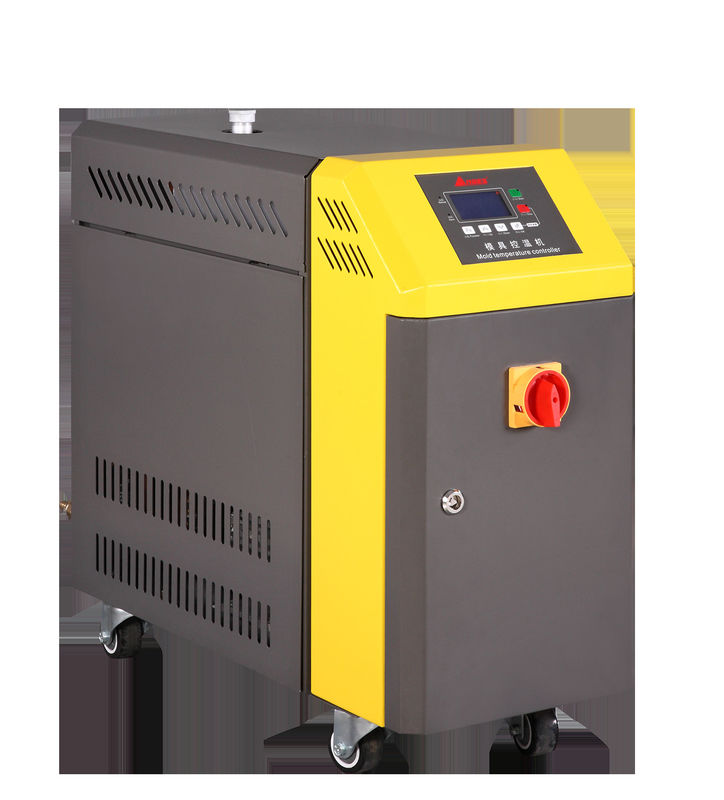

Industrial Water Type Mold Temperature Controller 6kw

Industrial Water Type Mold Temperature Controller 6kw

Brand Name: ANGES
Model Number: AM-6W
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Type:
Water Tydpe
Heat Transfer Medium:
Water
Heating Power:
6kw
Water Temperature:
40 ℃ To 120 ℃
Application:
Plastic Injection Molding
Cooling Method:
Direct Cooling
Highlight:

Industrial water type mold temperature controller

,

water type mold temperature controller 6kw

,

6kw mold master temperature controller

Product Description

Water Type Mold Temperature Controller Industrial Temperature Controller Temperature Control Machine Mold Temp Controll​



The mold temperature controller is mainly used for mold heating and keeps a constant temperature, as well as the fields with the same requirements.



Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature  can be 40-300°C.





Item AM-6W
Heat transfer medium Water
Max.Temperature 120
Heating power KW 6
Power 3PH-380V-50HZ
Pump power HP 0.5
Pump max.flow rate L/min 42
Pump max.pressure bar 2.8
Medium volume L 3.2
Cooling method Direct cooling
Mould Cooling lnch 3/8"*2
Inlet/outlet size lnch 3/4"/3/4"
Dimension(mm) H 645
  W 373
  D 745
Net weight kg 55



Advantages of Mould Temperature Controller

  1. Improve the molding efficiency of products
  2. Reduce the generation of defective products;
  3. Improve the appearance of the product and restrain the defects of the product;
  4. Speed up the production schedule, reduce energy consumption and save energy.



Features of Water type mold temperature controller

  1. Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise moulds to achieve precise temperature control and high efficiency heat exchange.
  2. PID temperature control with high accuracy and stable temperature control, the accuracy is ±1°C within.
  3. AuMultiple safety devices including power reverse phase protection, pump overload protection, overheat protection low level protection and so on.tomatic alarming function, alarming and automatically stop when the system has the breakdown.
