| Brand Name: | ANGES |
| Model Number: | 9kw |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

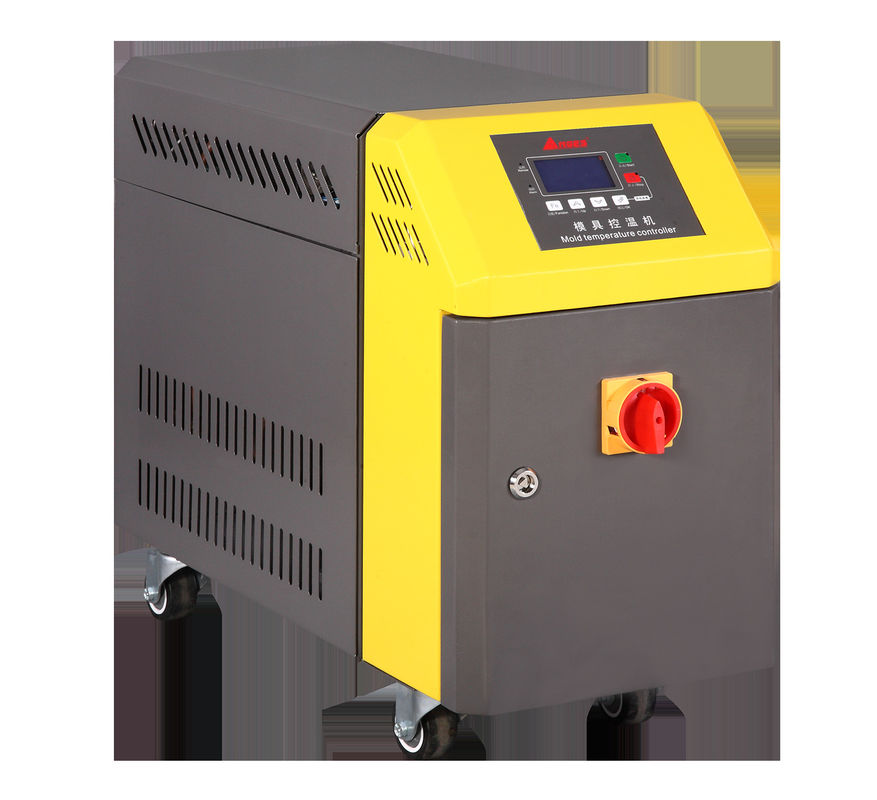

Mold Temperature Controller 12kw Water Type Mold Temperature Controller Temperature Control In Plastic Injection Molding
Anges temperature controllers are specially designed to control the temperature of plastic injection mold, to maintain constant temperature of Mould during the Moulding process.It is engineered to provide precise temperature control.
Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature can be 40-300°C.
| Model | AM-6W | AM-9W | AM-12W | AM-18W | AM-24W | AM-36W | |
| Heat transfer medium | Water | ||||||
| Max.Temperature | ℃ | 120 | |||||
| Heating power | KW | 6 | 9 | 12 | 18 | 24 | 36 |
| Power | 3PH-380V-50HZ | ||||||
| Pump power | HP | 0.5 | 1 | 0.5 | 1 | 2 | 3 |
| Pump max.flow rate | L/min | 42 | 56 | 98 | 165 | 235 | 315 |
| Pump max.pressure | bar | 2.8 | 3.8 | 2 | 2.2 | 2.4 | 2.6 |
| Medium volume | L | 3.2 | 3.2 | 4 | 4 | 8 | 8 |
| Cooling method | Direct cooling | ||||||
| Mould Cooling | lnch | 3/8"*2 | 3/8"*2 | 3/8"*4 | 3/8"*4 | 3/8"*4 | 3/8"*4 |
| Inlet/outlet size | lnch | 3/4"/3/4" | 3/4"/3/4" | 1"/1" | 1"/1" | 1"/1" | 1"/1" |
Dimension(mm) |
H | 645 | 645 | 715 | 715 | 715 | 715 |
| W | 373 | 373 | 453 | 453 | 453 | 453 | |
| D | 745 | 745 | 882 | 882 | 882 | 882 | |
| Weight | Kg | 55 | 60 | 65 | 75 | 90 | 110 |
Advantages of Mould Temperature Controller
Simple and compact design, and easy to move
Suitable for all kinds of mould for Injection Moulding Machine
Precise temperature control to ensure the high quality of plastic injection molding products
Easy connection for supply & return cooling circuit, by hose nipple
Features of Water type mold temperature controller
|
|
| Brand Name: | ANGES |
| Model Number: | 9kw |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
Mold Temperature Controller 12kw Water Type Mold Temperature Controller Temperature Control In Plastic Injection Molding
Anges temperature controllers are specially designed to control the temperature of plastic injection mold, to maintain constant temperature of Mould during the Moulding process.It is engineered to provide precise temperature control.
Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature can be 40-300°C.
| Model | AM-6W | AM-9W | AM-12W | AM-18W | AM-24W | AM-36W | |
| Heat transfer medium | Water | ||||||
| Max.Temperature | ℃ | 120 | |||||
| Heating power | KW | 6 | 9 | 12 | 18 | 24 | 36 |
| Power | 3PH-380V-50HZ | ||||||
| Pump power | HP | 0.5 | 1 | 0.5 | 1 | 2 | 3 |
| Pump max.flow rate | L/min | 42 | 56 | 98 | 165 | 235 | 315 |
| Pump max.pressure | bar | 2.8 | 3.8 | 2 | 2.2 | 2.4 | 2.6 |
| Medium volume | L | 3.2 | 3.2 | 4 | 4 | 8 | 8 |
| Cooling method | Direct cooling | ||||||
| Mould Cooling | lnch | 3/8"*2 | 3/8"*2 | 3/8"*4 | 3/8"*4 | 3/8"*4 | 3/8"*4 |
| Inlet/outlet size | lnch | 3/4"/3/4" | 3/4"/3/4" | 1"/1" | 1"/1" | 1"/1" | 1"/1" |
Dimension(mm) |
H | 645 | 645 | 715 | 715 | 715 | 715 |
| W | 373 | 373 | 453 | 453 | 453 | 453 | |
| D | 745 | 745 | 882 | 882 | 882 | 882 | |
| Weight | Kg | 55 | 60 | 65 | 75 | 90 | 110 |
Advantages of Mould Temperature Controller
Simple and compact design, and easy to move
Suitable for all kinds of mould for Injection Moulding Machine
Precise temperature control to ensure the high quality of plastic injection molding products
Easy connection for supply & return cooling circuit, by hose nipple
Features of Water type mold temperature controller
