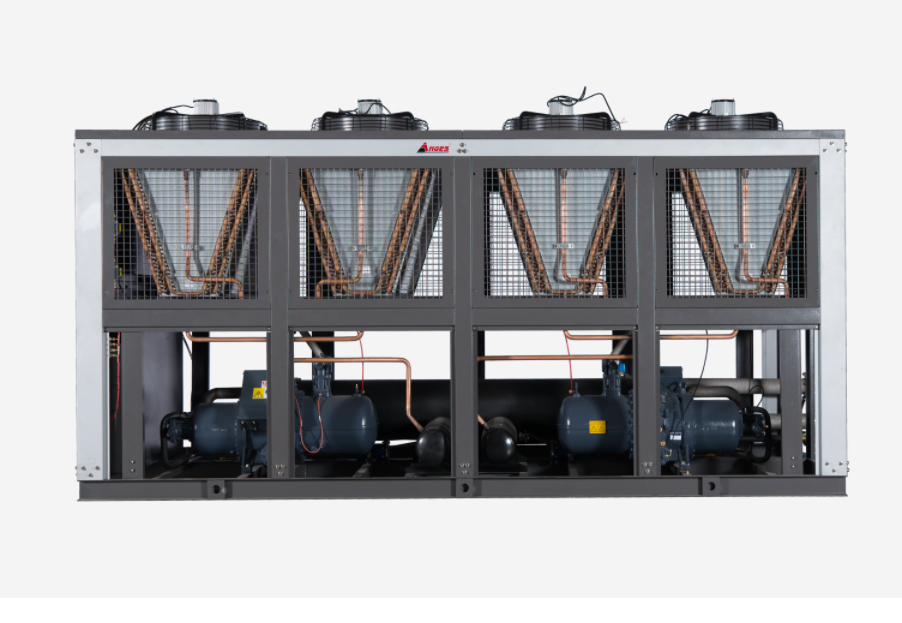

Name: High Capacity 470kW Air Cooled Scroll Chiller for Industrial Process Water Cooling in Printing and BOPP Film Lamination
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 150hp
Price: 2,100.00 USD
Availability: InStock

Home > products > Industrial Water Chiller >

High Capacity 470kW Air Cooled Scroll Chiller for Industrial Process Water Cooling in Printing and BOPP Film Lamination

BOPP Film Lamination Air Cooled Chiller

Printing Air Cooled Chiller

470kW Air Cooled Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

150hp

Request A Quote

Product Details

Condenser:

Shell And Tube

Protection System:

Overload/High Pressure/Low Pressure

Refrigerant:

R410A/R22/R134A/R407C

Cooling Capacity:

470kW

Model:

AGS-150ADH

Compressor Typetype:

Hanbell

Type:

Air-cooled Chiller

Highlight:

BOPP Film Lamination Air Cooled Chiller

Printing Air Cooled Chiller

470kW Air Cooled Chiller

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Polywood case

Delivery Time

30 days

Payment Terms

L/C, T/T

Contact Now

Product Description

Technical Parameter of Air Cooled Screw Type Chiller

Model Parameter		AGS-150ADH
nominal cooling capacity	kcal/h	404200
nominal cooling capacity	kw	470
input power	kw	162
Max. Running current	A	370.1
power supply	3PH~380V/50HZ
refrigerant	type	R22
	refrigerating circuit	1
	type of control	expansion valve
compressor	type	semi-hermetic screw
	quantity	1
	Power	67.7×2
	start-up mode	Y-△
	capacity control	0-25-50-75-100
condenser	type	air cooled type finned copper tube
	cooling air flow (m³/h)	155000
	power(kw)	27
evaporator	type	shell and tube
	quantity	1
	chilled fluid flow (m³/h)	80.8
	inlet and outlet pipe diameter (inch)	5
safety protection	compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weight	kg	4200
Dimension	mm	315042002200

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature:17℃

Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃

Outlet cooling air temperature:35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 30℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

The machine can be used while the ambient temperature is below 40℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Configuration table for Air-cooled Screw Type Chiller

Item	Main Parts	Brand	Remark
1	Compressor	Hanbell	Taiwan
2	Expansion Valve	Emerson	USA
3	Condenser	ANGES	China
4	Evaporator	ANGES	China
5	Solenoid Valve	Emerson	USA
6	Drying Filter	Emerson	USA
7	Oil Pressure Gauge	REFCO	Switzerland
8	Touch Screen	WEINTEK	Taiwan
9	PLC Controller	Siemens	Germany
10	Electrical components	Schneider	France
11	Fan	Maer	China
