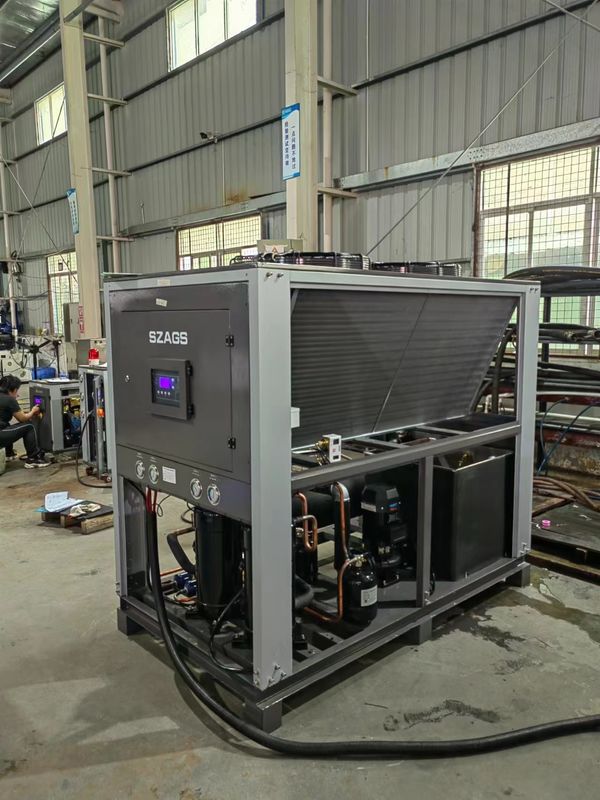

20 Ton Industrial Chiller Units for Bottle Blowing Machines Advanced Cooling Solution

20 Ton Industrial Chiller Units for Bottle Blowing Machines Advanced Cooling Solution

Bottle Blowing Machines Industrial Chiller Units

Advanced Cooling Solution Industrial Chiller Units

20 Ton Industrial Chiller Units

Place of Origin:

China

Brand Name:

ANGES

Model Number:

ACK-20(D)

Contact Us
Request A Quote
Product Details
Type:
Air Cooled Type
Capacity:
2HP
Compressor Typetype:
Danfoss/Panosonic/Copeland/LG
Refrigerant:
R410a/R407C/R134A/R22
Pump:
Included 2 Bar- 4 Bar
Water Tank:
170L
Voltage:
3PH~220V/380/415V~50HZ/60HZ
Dimension(l*w*h):
2000*1130*1820
Weight:
950kg
Temperature Range:
5℃ ~ 35℃
Application:
Industrial Cooling Solutions,Plastic & Rubber / Chemical Etc / Welding
Highlight:

Bottle Blowing Machines Industrial Chiller Units

,

Advanced Cooling Solution Industrial Chiller Units

,

20 Ton Industrial Chiller Units

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Plywood case
Delivery Time
10-35 days
Payment Terms
T/T, L/C
Supply Ability
400 units/ month
Product Description

20 ton Industrial Chiller Units For Industrial Process Cooling Machince for bottle blowing machines



Providing efficient and stable cooling for bottle blowing machines (especially PET bottle blow molding machines) is the key to ensuring bottle wall uniformity, transparency and production efficiency



 Specification







Item

Model

ACK-20(D) ACK-25(D)
Nominal cooling capacity Ton 17.1 20.8
  kw 60.2 73.2
Input power kw 19.96 22.36
Power supply 3PH 380V 50HZ
Refrigerant Type R410A
  Type of control Expansion valve
Compressor Type Hermetic scroll
  Power(kw) 16.2 18.6
Condenser Type Finned copper tube + low noise outer rotor fan
  Power(kw) 1.56 1.56
  Cooling air flow(m3/h) 20000 25000
Evaporator Type Shell and tube
  Chilled fluid flow(m3/h) 10.38 12.62
  Tank volume(L) 170 170
  Inlet/outlet pipe caliber(inch) 2 2
Water pump Power(kw) 2.2 2.2
  Flow(m3/h) 25 25
  Lift(m) 19 19
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Weight kg 950 1100
Dimension mm 2000*1130*1820 2200*1130*2000



Daily maintenance and prevention recommendations

  1. Regular cleaning: Condenser (air-cooled fins/water-cooled heat exchange tubes), evaporator water side (chemical cleaning), filter (water/gas).
  2. Check water flow/pressure: Ensure that the cooling water and chilled water flow and pressure are normal.
  3. Check refrigerant: Observe the sight glass, record the operating pressure/temperature, and find abnormalities (such as bubbles, low pressure) in time to check for leaks.
  4. Check oil level/oil quality: (especially screw machines and piston machines) Replace lubricating oil and oil filters on time.
  5. Check electrical connections: Tighten terminals and check contactor contacts.
  6. Check operating parameters: Record voltage, current, high and low pressure, inlet and outlet water temperatures, etc., to detect abnormal trends in time.
  7. Regular maintenance: Perform professional annual maintenance according to the manufacturer's manual (check refrigerant volume, vacuum degree, replace dry filters, calibrate sensors, etc.).

FAQ

1.How does a chiller system work?

Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.



2.How to calculate cooling capacity for chillers?

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)



3.How can we do for chiller maintenance ?

Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
