Place of Origin:
China
Brand Name:
ANGES/SZAGS
Certification:
CE/ISO9001
Model Number:
ACK-20(D)
Video

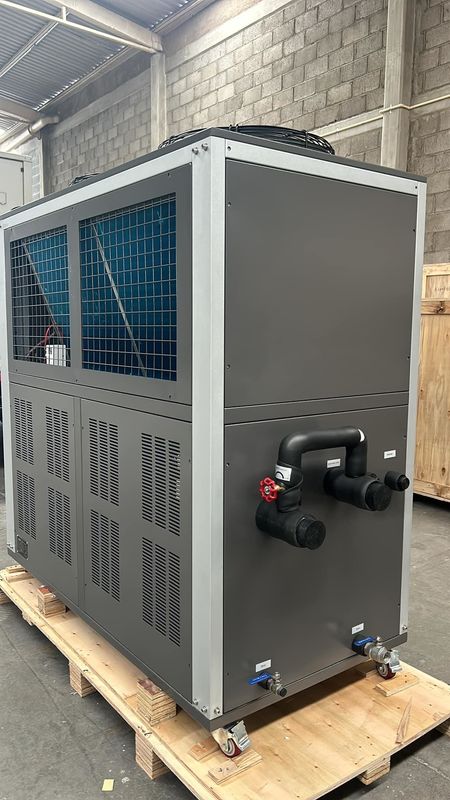

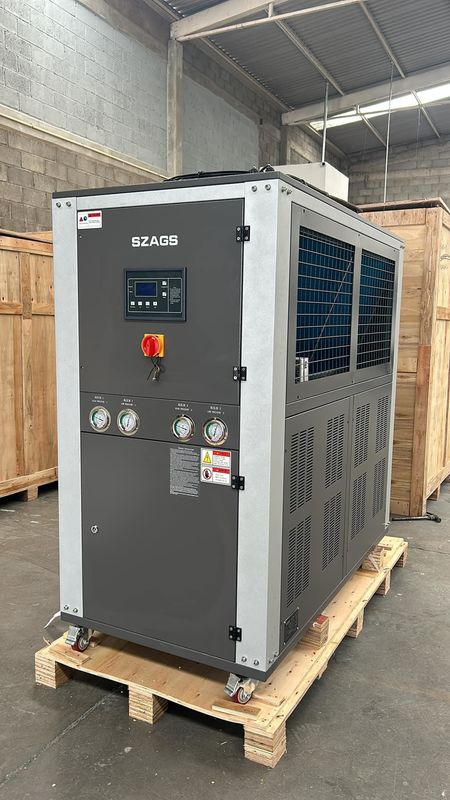

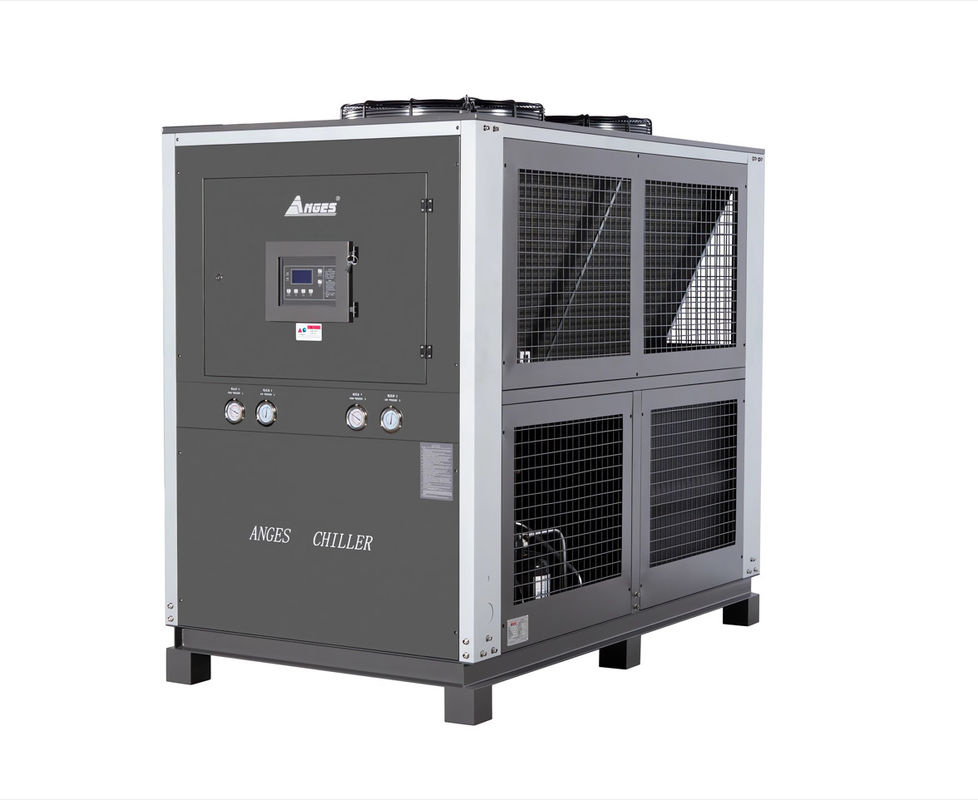

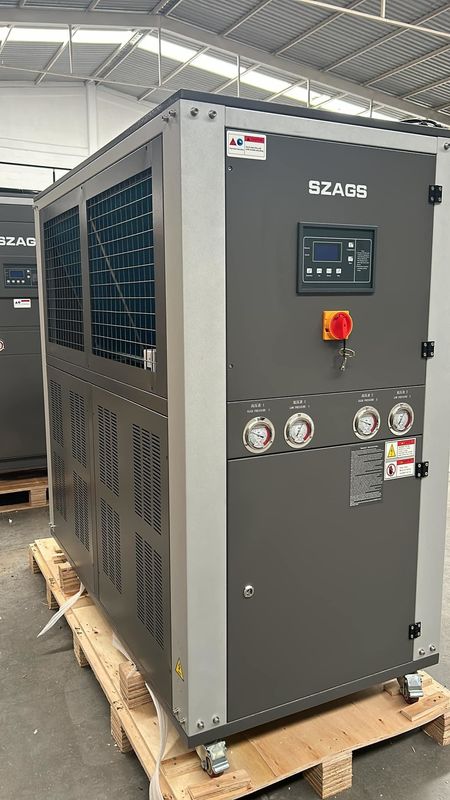

25HP Glycol Chiller Air-Cooled Scroll Industrial Chiller for Pharmaceutical Industry
High-performance 25HP air-cooled scroll chiller engineered for stable, energy-efficient cooling across plastic processing, food & beverage, and metal finishing industries. Designed for 24/7 industrial use with reliable temperature control.
Technical Parameters of Industrial Air-cooled Chiller
|
Model Item |
ACK-25(D) |
||
|
nominal cooling capacity |
kcal/h |
62952 |
|
|
kw |
73.2 |
||
|
input power |
kw |
22.36 |
|
|
power supply |
3PH 380V 50HZ |
||
|
refrigerant |
type |
R407C |
|
|
type of control |
thermostatic expansion valve |
||
|
compressor |
type |
hermetic scroll |
|
|
power(kw) |
18.6 |
||
|
condenser |
type |
finned copper tube + low noise outer rotor fan |
|
|
fan power(kw) |
1.56 |
||
|
cooling air flow(m3/h) |
25000 |
||
|
evaporator |
type |
shell and tube |
|
|
chilled fluid flow(m3/h) |
12.62 |
||
|
volume(L) |
170 |
||
|
inlet and outlet pipe diameter(inch) |
2-1/2" |
||
|
pump |
power(kw) |
2.2 |
|
|
lift(m) |
20 |
||
|
safety protection |
compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection |
||
|
weight |
kg |
1100 |
|
|
dimension |
mm |
2200*1130*1965 |
|
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
FAQ
1.How does a chiller system work?
The chiller operates with two circulations: one involves the circulation of process water, while the other entails the circulation of refrigerant gas. Heat absorbed from the process is transferred to the refrigerant circulation, and then expelled to either air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.Why Choose ANGES/SZAGS?
• 20+ years of industrial chiller manufacturing experience
• Exported to over 60 countries with CE and ISO certifications
• Customizable voltage and refrigerant options
• Factory-direct price and reliable after-sales support
4. What kind of after-sales service can we provide?
24 hours Online support;
Video technical support;
Overseas third-party support available and etc.
