Place of Origin:
China
Brand Name:
ANGES/SZAGS
Certification:
CE/ISO9001
Model Number:
ACK-10(D)
Video

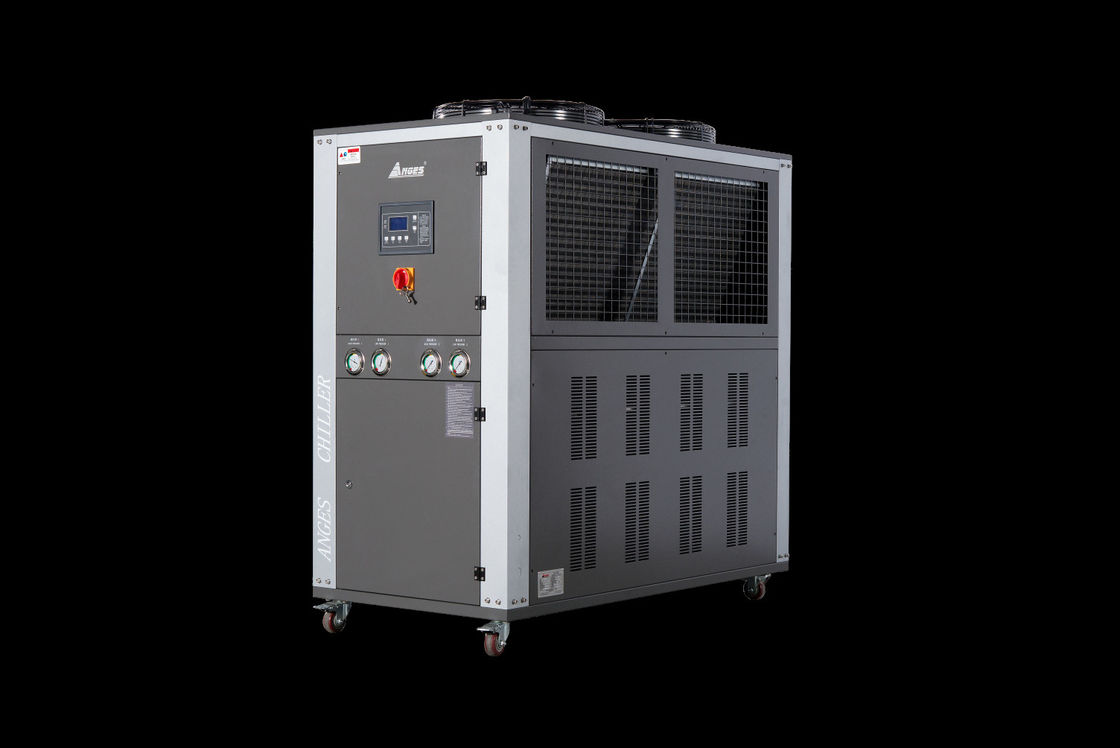

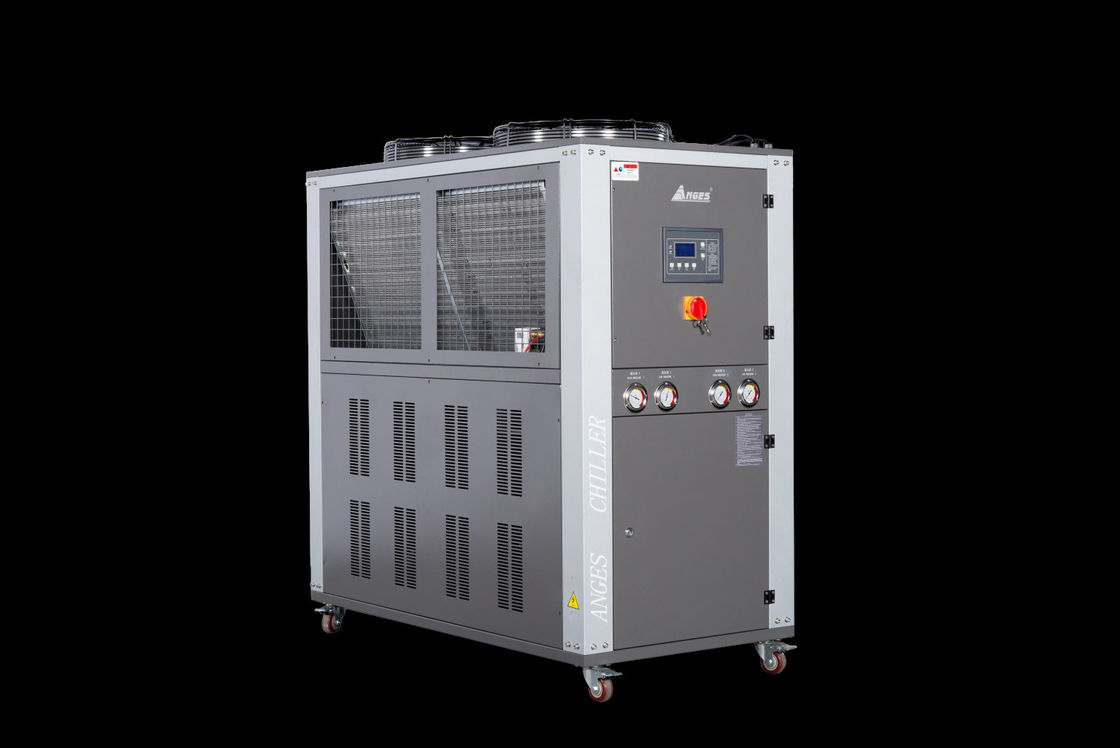

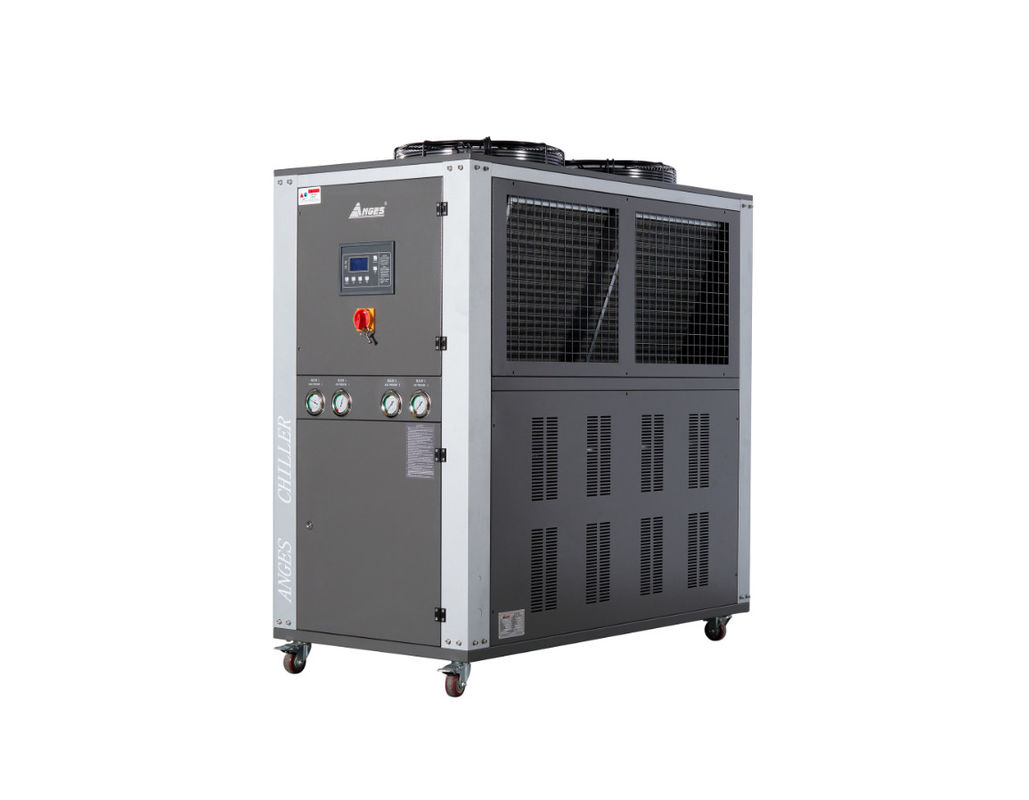

10HP Industrial Air-Cooled Chiller Precision Cooling for Injection Molding, CNC & Laser Equipment
Product Overview
The ANGES 10HP air-cooled industrial chiller delivers stable and efficient cooling for medium-scale industrial applications. Engineered for durability and easy operation, it is ideal for processes requiring precise temperature control, such as injection molding, laser cutting, CNC machining, and electronic assembly.
Technical Parameters of Industrial Air-cooled Chiller
|
Model Item |
ACK-10(D) |
|
|
nominal cooling capacity |
kcal/h |
24940 |
|
|
kw |
29 |
|
input power |
kw |
11.22 |
|
power supply |
3PH 380V 50Hz |
|
|
refrigerant |
type |
R407C |
|
compressor |
type of control |
capillary |
|
type |
hermetic scroll |
|
|
power(kw) |
8.8 |
|
|
condenser |
type |
finned copper tube + low noise outer rotor fan |
|
cooling air flow(m3/h) |
10000 |
|
|
evaporator |
type |
shell and tube |
|
chilled fluid flow(m3/h) |
5 |
|
|
volume(L) |
85 |
|
|
inlet and outlet pipe diameter(inch) |
1-1/2 |
|
|
pump |
power(kw) |
1.5 |
|
lift(m) |
20 |
|
|
safety protection |
compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection |
|
|
weight |
kg |
500 |
|
dimension |
mm |
1530*780*1630 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
Features
Compact footprint and easy installation
Fast and stable temperature regulation
Multiple safety protections: high/low pressure, compressor overload, water flow switch, phase failure
Air-cooled condenser designed for high ambient temperature environments
Low noise operation and long service life
Target Applications
• Injection molding machines and plastic extruders
• Blow molding machines and bottle production lines
• Chemical reactors and low-temperature crystallization systems
• Food and beverage processing (cooling of mixing, fermentation, etc.)
• Electroplating and surface treatment equipment
• Laser cutting and engraving systems
• SMT lines and PCB manufacturing equipment
• Environmental test chambers and laboratory cooling
• Pharmaceutical production and storage
• Polyurethane foam processing and adhesive production
Why Choose ANGES/SZAGS?
With over 20 years of industry experience, ANGES/SZAGS specializes in delivering high-performance industrial chillers tailored to your specific application. Our solutions are trusted worldwide for their reliability, energy efficiency, and long service life. OEM & ODM services available.
