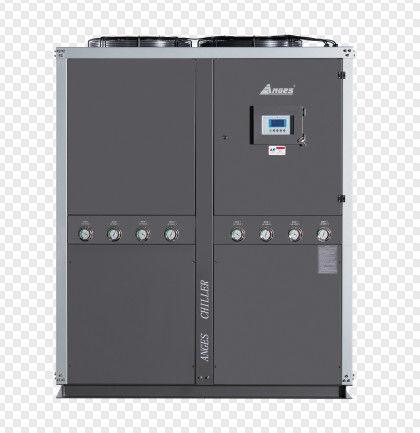

Name: 60hp Hermetic Scroll Type Industrial Chiller Integrated System with Shell and Tube Evaporator 1850kg Capacity
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 60hp
Price: 2,100.00 USD
Availability: InStock

Home > products > Industrial Water Chiller >

60hp Hermetic Scroll Type Industrial Chiller Integrated System with Shell and Tube Evaporator 1850kg Capacity

1850kg Capacity Industrial Chiller

Industrial Chiller Integrated System

60hp Industrial Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

60hp

Request A Quote

Product Details

Weight:

1850kg

Condition:

Brandnew

Condenser:

Shell And Tube

Water Tanl:

345L

Condenser Quantity:

Power Supply:

3ph/380V/50Hz

Original:

Shenzhen China Manufacturer

Evaporator Type:

Shell And Tube

Cooling Mode:

Air Cooled Type

Highlight:

1850kg Capacity Industrial Chiller

Industrial Chiller Integrated System

60hp Industrial Chiller

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Plywood case

Delivery Time

30 days

Payment Terms

T/T, L/C

Contact Now

Product Description

Shenzhen Anges Machinery Co., Ltd

Technical Parameter of Air-cooled scrolled Type Chiller

Model Item		ACK-60(F)
Nominal cooling capacity	Kcal/h	152048
Nominal cooling capacity	kw	184.8
Input power	kw	57.48
Power supply	3PH~220V/60HZ
Refrigerant	Type	R22
Refrigerant	Type of control	Expansion valve
Compressor	Type	Hermetic scroll type
Compressor	Power (kw)	49.8
Condenser	Type	Finned copper tube+low noise outer rotor fan
	Power(kw)	3.68
	Cooling air flow(m³ /h)	60000
Evaporator	type	Shell and tube
	Chilled water flow(m³ /h)	31.86
	Tank volume(L)	345
	Inlet/outlet pipe chiller(inch)	3
Water pump	Power(kw)	4
Water pump	Lift(m)	23
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight	kg	1850
Dimension	mm	270022002050

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.

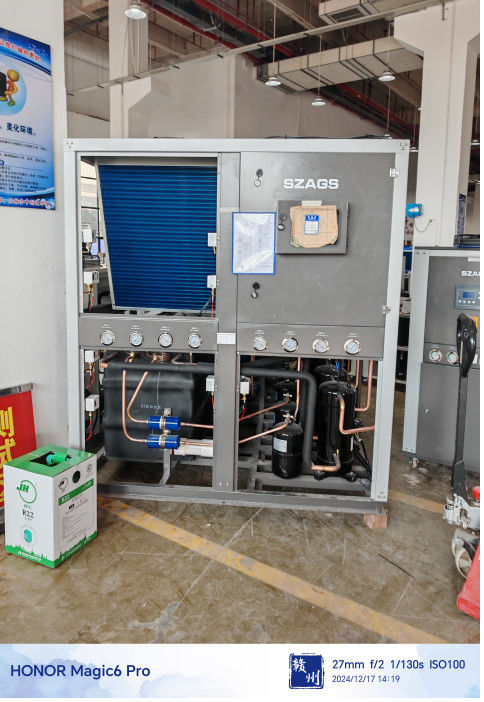

Configuration table for Air-cooled scrolled Type Chiller

Item	Main Parts	Brand	Origin
1	Compressor	Danfoss	Denmark
2	Condenser	ANGES	China
3	Evaporator	ANGES	China
4	Drying Filter	Emerson	USA
5	Controller PCB	Punp	China
6	Electric Components	Schneider	France
7	Pressure Controller	Fensheng	China
8	Oil Pressure Gauge	Jiunai	China
9	Water Pump	Minamoto	China
10	Fan	MAER	China
