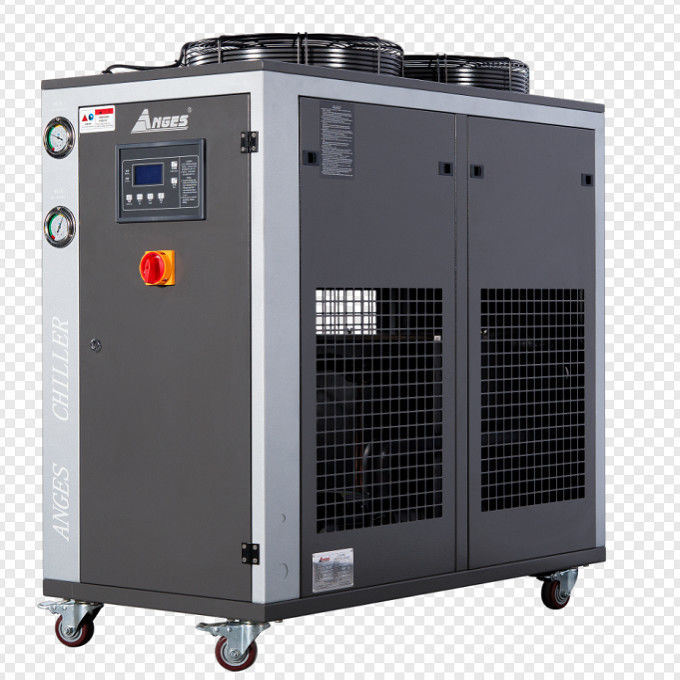

| Brand Name: | ANGES |
| Model Number: | 5hp |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
|
Model Item |
ACK-5 | |
| Nominal cooling capacity | Kcal/h | 12126 |
| kw | 14.5 | |
| Input power | kw | 3.53 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22 |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 4.4 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.38 | |
| Cooling air flow(m3 /h) | 10000 | |
| Evaporator | type | Shell and tube |
| Chilled water flow(m3 /h) | 2.5 | |
| Tank volume(L) | 30 | |
| Inlet/outlet pipe chiller(inch) | 2-1/2 | |
| Water pump | Power(kw) | 1.5 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 180 |
| Dimension | mm | 1140*560*1250 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to run the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or parameters without further notice.
|
|
