| Brand Name: | SZAGS |
| Model Number: | ACK-20(D) |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, T/T, |
Production Overview

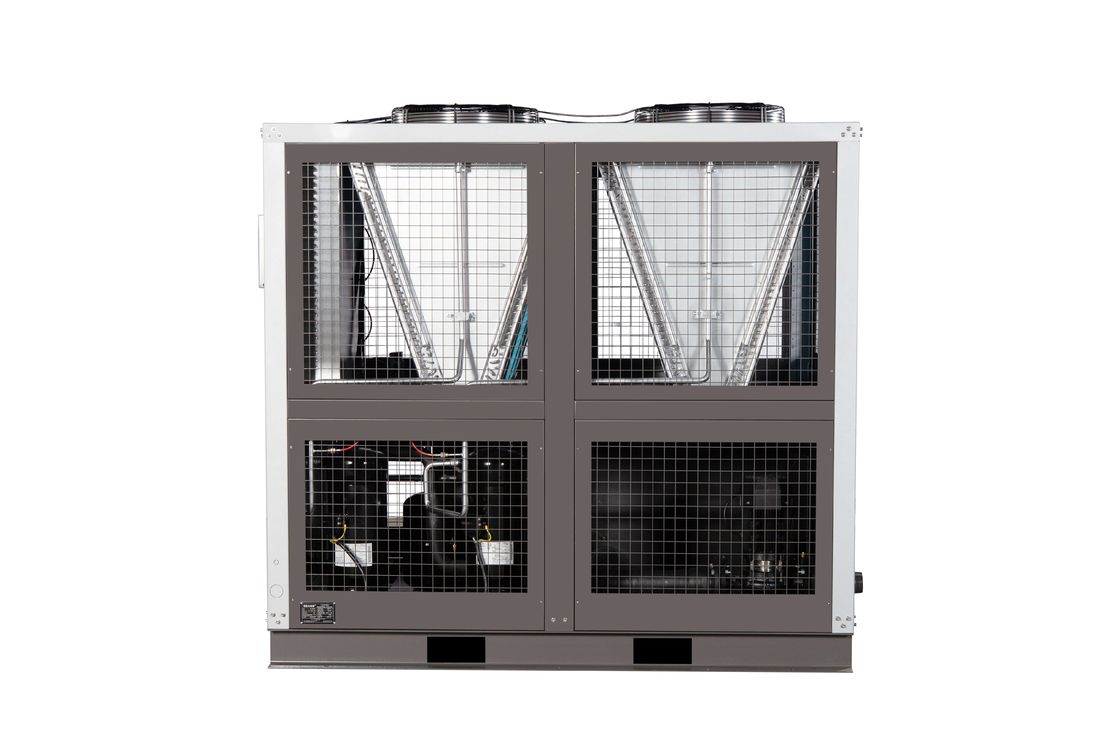

This 20Hp industrial chiller is specially designed for soap production lines. It not only rapidly reduces water temperature to meet the immediate cooling water demands during soap production but also ensures stable temperature control, which is crucial for guaranteeing the molding quality and production efficiency of soap. In the soap production process, cooling water is used to control reaction temperatures, prevent raw materials from overheating and denaturing, and facilitate rapid cooling and shaping of products. Our chiller, with precise temperature control and powerful cooling capacity, ensures that the water temperature on the soap production line remains within the ideal range, thereby improving product uniformity and consistency.
Technical Specifications Table
| Specification Name | Specification Value |
|---|---|
| Model | 20Hp Industrial Chiller |
| Cooling Capacity | 60.2KW |
| Power Supply | 380V/50Hz (customizable based on customer needs) |
| Compressor Type | Scroll Compressor |
| Cooling Method | Water-cooled/Air-cooled (optional) |
| Temperature Control Range | 5℃~35℃ (customizable based on customer needs) |
| Water Tank Capacity | 170L (customizable based on customer needs) |
| Refrigerant | R22 (environmentally friendly) |
| Noise | ≤75dB(A) |
| Dimensions (L×W×H) | 2000*1130*1820mm |
| Weight | 950kg |
Product Configuration
Product Features
1.Efficient Cooling: Equipped with a scroll compressor as its core, this chiller boasts a cooling capacity of up to 60.2KW, rapidly reducing water temperature to meet the immediate cooling water needs of soap production lines.
2.Stable and Reliable: The scroll chiller unit features a simple structure with few moving parts and vulnerable components, resulting in a long service life. Additionally, its circular motion is smooth, eliminating "surge" phenomena during low-load operation, ensuring long-term stable operation of the equipment.
3.Energy-saving and Environmentally Friendly: This chiller has a high EER value, capable of stepless adjustment within the range of 10%~100%. It operates efficiently under partial loads, resulting in significant energy savings. Furthermore, it uses eco-friendly refrigerant R407C, posing no harm to the environment.
4.Intelligent Control: Equipped with a microcomputer controller, digital nixie tube display, and button operation, it allows users to monitor and adjust the equipment's operating status in real-time. Additionally, it incorporates various protective functions, such as motor current overload protection and high/low-pressure protection devices, ensuring safe operation of the equipment.
5.Customized Services: Production can be customized according to customer needs, including parameters such as cooling capacity, voltage, and temperature control range, as well as configurations like evaporator type and water tank capacity, satisfying the personalized needs of soap production lines.
Application Scenarios
This 20Hp industrial chiller is widely used in the cooling process of soap production lines, ensuring stable water temperature during production, which improves soap molding quality and production efficiency. It is also suitable for other industrial production fields requiring precise temperature control, such as plastic processing, electroplating, and vacuum ion coating.
Product Advantages
1.Origin and Brand: Produced by Shenzhen Anges Machinery Co., Ltd., this product benefits from the company's extensive production experience and advanced technological prowess, ensuring reliable product quality.
2.Process and Material: Adopting advanced production processes and high-quality materials, such as Japanese Panasonic compressors and fin-type condensers, ensures efficient operation and long-term use of the equipment.
3.Service and After-sales: Providing comprehensive pre-sales consultation, mid-sales guidance, and after-sales service, ensuring customers receive timely technical support and maintenance services during use.
Purchase Guide
Customers with needs are welcome to contact us for detailed inquiries and purchases. We will provide you with the most suitable product plan and top-notch service based on your specific requirements.
|
|
| Brand Name: | SZAGS |
| Model Number: | ACK-20(D) |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | plywood case |
| Payment Terms: | L/C, T/T, |
Production Overview
This 20Hp industrial chiller is specially designed for soap production lines. It not only rapidly reduces water temperature to meet the immediate cooling water demands during soap production but also ensures stable temperature control, which is crucial for guaranteeing the molding quality and production efficiency of soap. In the soap production process, cooling water is used to control reaction temperatures, prevent raw materials from overheating and denaturing, and facilitate rapid cooling and shaping of products. Our chiller, with precise temperature control and powerful cooling capacity, ensures that the water temperature on the soap production line remains within the ideal range, thereby improving product uniformity and consistency.
Technical Specifications Table
| Specification Name | Specification Value |
|---|---|
| Model | 20Hp Industrial Chiller |
| Cooling Capacity | 60.2KW |
| Power Supply | 380V/50Hz (customizable based on customer needs) |
| Compressor Type | Scroll Compressor |
| Cooling Method | Water-cooled/Air-cooled (optional) |
| Temperature Control Range | 5℃~35℃ (customizable based on customer needs) |
| Water Tank Capacity | 170L (customizable based on customer needs) |
| Refrigerant | R22 (environmentally friendly) |
| Noise | ≤75dB(A) |
| Dimensions (L×W×H) | 2000*1130*1820mm |
| Weight | 950kg |
Product Configuration
Product Features
1.Efficient Cooling: Equipped with a scroll compressor as its core, this chiller boasts a cooling capacity of up to 60.2KW, rapidly reducing water temperature to meet the immediate cooling water needs of soap production lines.
2.Stable and Reliable: The scroll chiller unit features a simple structure with few moving parts and vulnerable components, resulting in a long service life. Additionally, its circular motion is smooth, eliminating "surge" phenomena during low-load operation, ensuring long-term stable operation of the equipment.
3.Energy-saving and Environmentally Friendly: This chiller has a high EER value, capable of stepless adjustment within the range of 10%~100%. It operates efficiently under partial loads, resulting in significant energy savings. Furthermore, it uses eco-friendly refrigerant R407C, posing no harm to the environment.
4.Intelligent Control: Equipped with a microcomputer controller, digital nixie tube display, and button operation, it allows users to monitor and adjust the equipment's operating status in real-time. Additionally, it incorporates various protective functions, such as motor current overload protection and high/low-pressure protection devices, ensuring safe operation of the equipment.
5.Customized Services: Production can be customized according to customer needs, including parameters such as cooling capacity, voltage, and temperature control range, as well as configurations like evaporator type and water tank capacity, satisfying the personalized needs of soap production lines.
Application Scenarios
This 20Hp industrial chiller is widely used in the cooling process of soap production lines, ensuring stable water temperature during production, which improves soap molding quality and production efficiency. It is also suitable for other industrial production fields requiring precise temperature control, such as plastic processing, electroplating, and vacuum ion coating.
Product Advantages
1.Origin and Brand: Produced by Shenzhen Anges Machinery Co., Ltd., this product benefits from the company's extensive production experience and advanced technological prowess, ensuring reliable product quality.
2.Process and Material: Adopting advanced production processes and high-quality materials, such as Japanese Panasonic compressors and fin-type condensers, ensures efficient operation and long-term use of the equipment.
3.Service and After-sales: Providing comprehensive pre-sales consultation, mid-sales guidance, and after-sales service, ensuring customers receive timely technical support and maintenance services during use.
Purchase Guide
Customers with needs are welcome to contact us for detailed inquiries and purchases. We will provide you with the most suitable product plan and top-notch service based on your specific requirements.
