| Brand Name: | SZAGS |
| Model Number: | 5HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T |

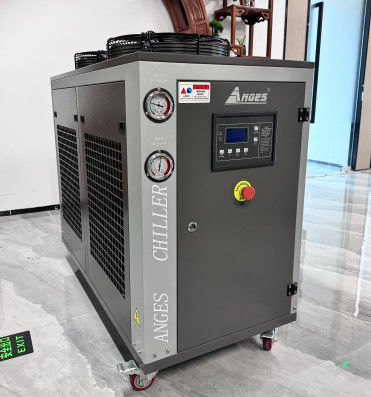

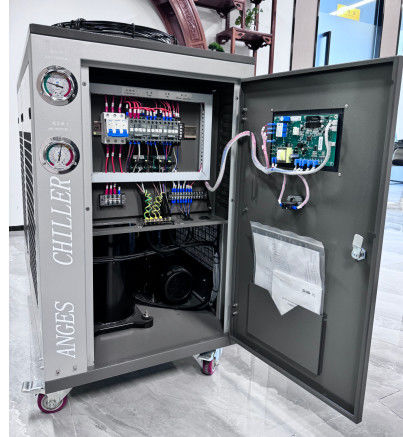

Industrial Chiller 5hp 220v 440v 480v 3phase Glycol Chiller Recirculating Air cooled Chiller
As an industrial water chiller, it has the following features:
1. Our compressor is imported from Japan,Denmark and so on, being of high-quality built-in safe protection, with low noise, the electricity of province is durable.
2. Cooling capacity range: 2kw~185kw
3. Normal conditions: Chilled water inlet temperature is 17 degree, outlet temperature is 12 degrees. Cooling air/water inlet temperature is 30 degrees, outlet temperature is 35 degrees. But the lowest temperature can be -25 degrees.
4. Standard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%,Can also be customized according to customers’request
5. The quantity of compressor can be one or two ,each compressor is independent refrigeration system. Each other run independently.when the one is working ,the other can be working or not.
6. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
8.Environment-friendly refrigerant R407C, R410A, R404A, R134A, etc, which is no harm to the ozone layer.
Industrial Chiller Specification:
|
Model Item |
ACK-5 | |
| Nominal cooling capacity | Kcal/h | 12126 |
| kw | 14.5 | |
| Input power | kw | 3.53 |
| Power supply | 3PH~380V/50HZ | |
| Refrigerant | Type | R22(R407c, R410a) |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 4.4 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.38 | |
| Cooling air flow(m3 /h) | 5000 | |
| Evaporator | type | Shell and tube |
| Chilled water flow(m3 /h) | 2.5 | |
| Tank volume(L) | 30 | |
| Inlet/outlet pipe chiller(inch) | 1 | |
| Water pump | Power(kw) | 0.75 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 180 |
| Dimension | mm | 1140*560*1250 |
Product Highlights
ACK's full range of air-cooled chillers all use compressors from internationally renowned brands, which are 20-30% more energy efficient than reciprocating compressors. They have the advantages of stable and reliable operation, high efficiency and low failure, low vibration and noise, easy maintenance, and a long service life.
The air-cooled chiller uses a shell and tube evaporator. In the refrigeration system, the refrigerant evaporates in the heat exchange tube, and the water flows on the shell side to improve the heat exchange efficiency. In addition, in order to maintain a stable operating temperature, the evaporator shell is covered with insulation material, and the heat exchange tube uses a high-efficiency seamless copper tube. The tube is slotted to form internal threaded fins to increase the heat exchange area with the refrigerant. Through this technology, the heat transfer area is doubled and the heat transfer efficiency is greatly improved.
FAQ
Q: Can The air-cooled chiller Be Customized ?
A: Of course, we will carefully customize the air cooling chiller according to your requirements, and then conduct in-depth analysis.Finally, we promise to meet your expectations for this customization.
Q: How To Guarantee The Quality Of water cooling chiller ?
|
|
