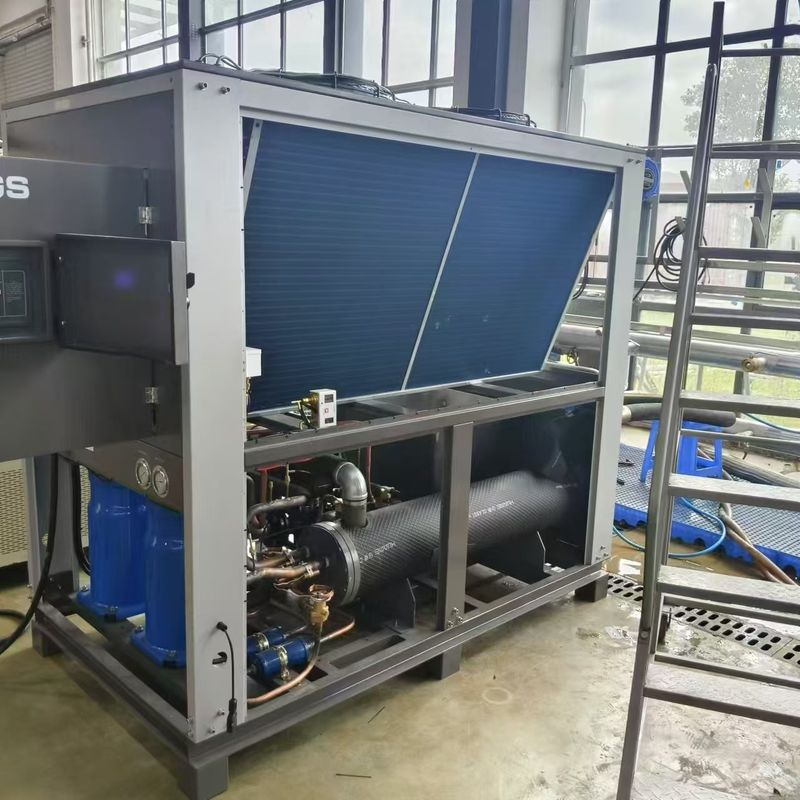

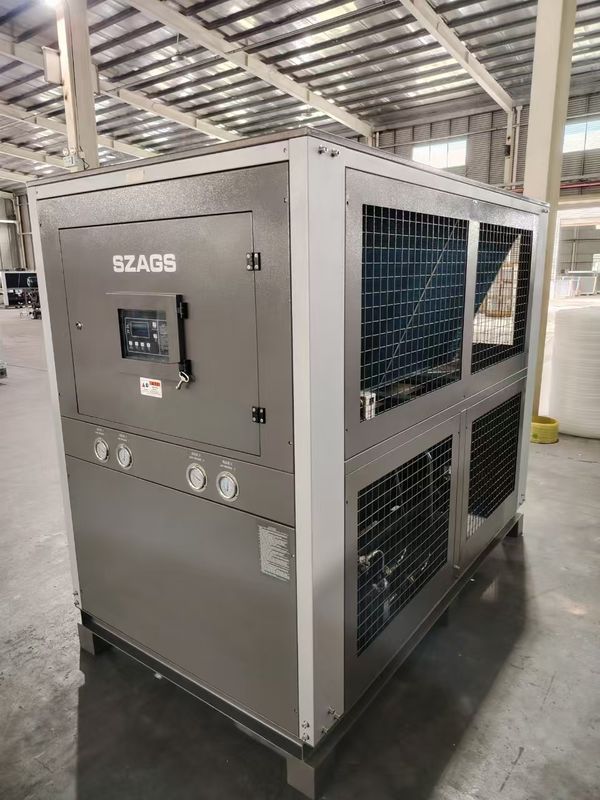

Portable 20 Ton Air Cooled Chiller

Air Cooled Chiller chiller is a kind of water cooling equipment, it can provide a constant temperature, constant current, constant pressure of a cooling equipment. The chiller water is between 5℃ and 35℃ and the chilled water will be transported to the equipment or products that need cooling through chiller pump.

Air-cooled chiller is built-in insulation water tank and water pump, no need to add another cooling tower to heat. It is very easy to install and move. But it has high requirements on the working environment. The chiller is cooled by hot air circulation, so if the ventilation effect of the installation workshop is not good, it will directly affect the refrigeration effect of the chiller.

Application
Industrial chiller unit is used to cool the hot parts of the equipment, so that the equipment can work normally at low temperature. Used in Beverage filling, spindle cooling, CNC machine tools, grinding miller, reaction system, welding machine, cutting machine and other equipment, temperature adjustment range can be 40 degrees below zero.

Specification

The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃Note:

Features of chiller cooling system


• The small water chiller use scroll compressor, high refrigeration efficiency, excellent performance.
• The COP efficiency of air cooled water chiller is about 3.3. According to the industrial needs, it can be refrigerated or heated, which is more used in general laboratories and small production lines.
• The COP efficiency of water-cooled chiller is relatively high, about 4-5.5, which is used in industrial process cooling and large-scale construction projects.
• Compared with the high efficiency wate cooled chiller, the air-cooled chiller is only different from the condenser. The air-cooled chiller dissipates heat directly through the fan, while the water-cooled chiller takes away the heat from the condenser through cold water and dissipates heat through the cooling tower.
• The water cooled low temperature water chiller can only refrigeration, if the need for heating, need other heating equipment.
