Place of Origin:
China
Brand Name:
ANGES
Model Number:
100hp
Shenzhen Anges Machinery Co., Ltd

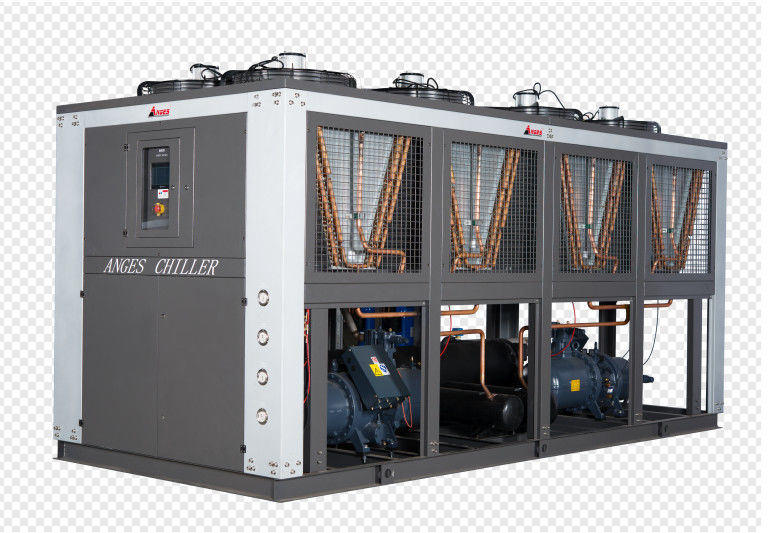

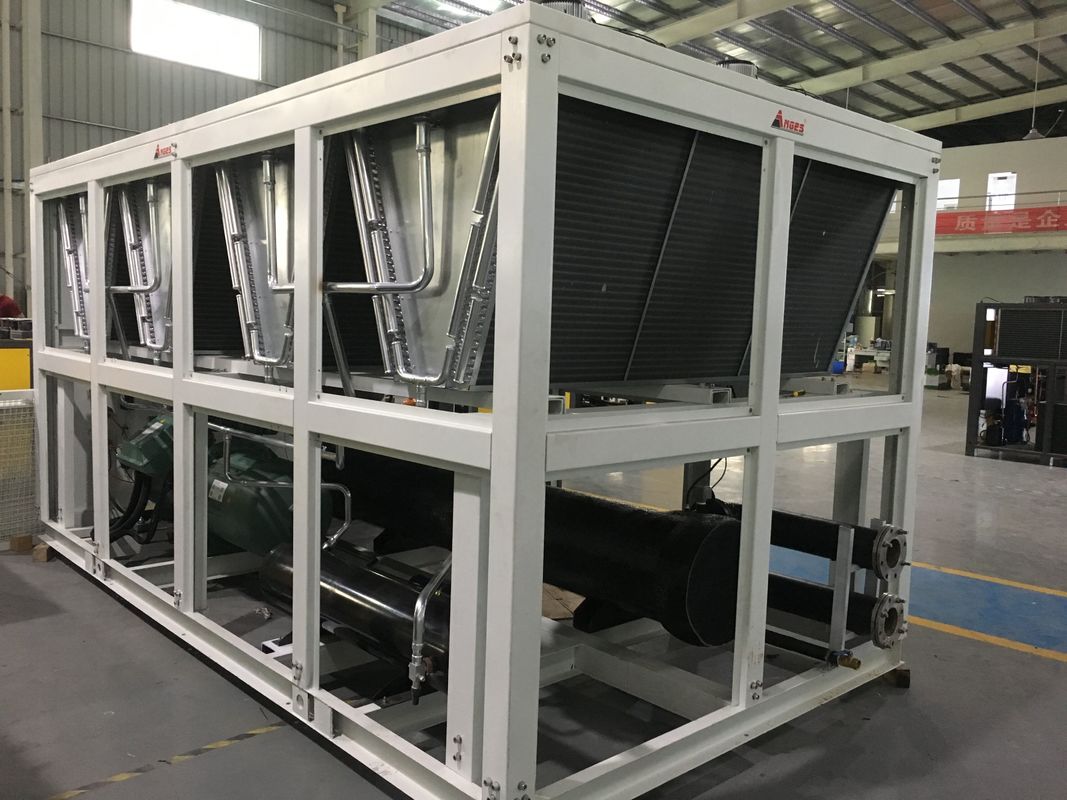

Technical Parameter of Air Cooled Screw Type Chiller
|
Model Parameter |
AGS-100ASH | |
| nominal cooling capacity | kcal/h | 281134 |
| kw | 326.9 | |
| input power | kw | 107 |
| Max. Running current | A | 243.9 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| refrigerating circuit | 1 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| Power | 89 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | air cooled type finned copper tube |
| cooling air flow (m3/h) | 105000 | |
| power(kw) | 18 | |
| evaporator | type | shell and tube |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 56.2 | |
| inlet and outlet pipe diameter (inch) | 4 | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| net weight | kg | 2860 |
| Dimension | mm | 4400*1890*2420 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature:17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature:35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The machine can be used while the ambient temperature is below 40℃.
We reserve the right to modify the above dimensions or parameters without further notice.
Configuration table for Air-cooled Screw Type Chiller
| Item | Main Parts | Brand | Remark |
| 1 | Compressor | Hanbell | Taiwan |
| 2 | Expansion Valve | Emerson | USA |
| 3 | Condenser | ANGES | China |
| 4 | Evaporator | ANGES | China |
| 5 | Solenoid Valve | Emerson | USA |
| 6 | Drying Filter | Emerson | USA |
| 7 | Oil Pressure Gauge | REFCO | Switzerland |
| 8 | Touch Screen | WEINTEK | Taiwan |
| 9 | PLC Controller | Siemens | Germany |
| 10 | Electrical components | Schneider | France |
| 11 | Fan | Maer | China |
