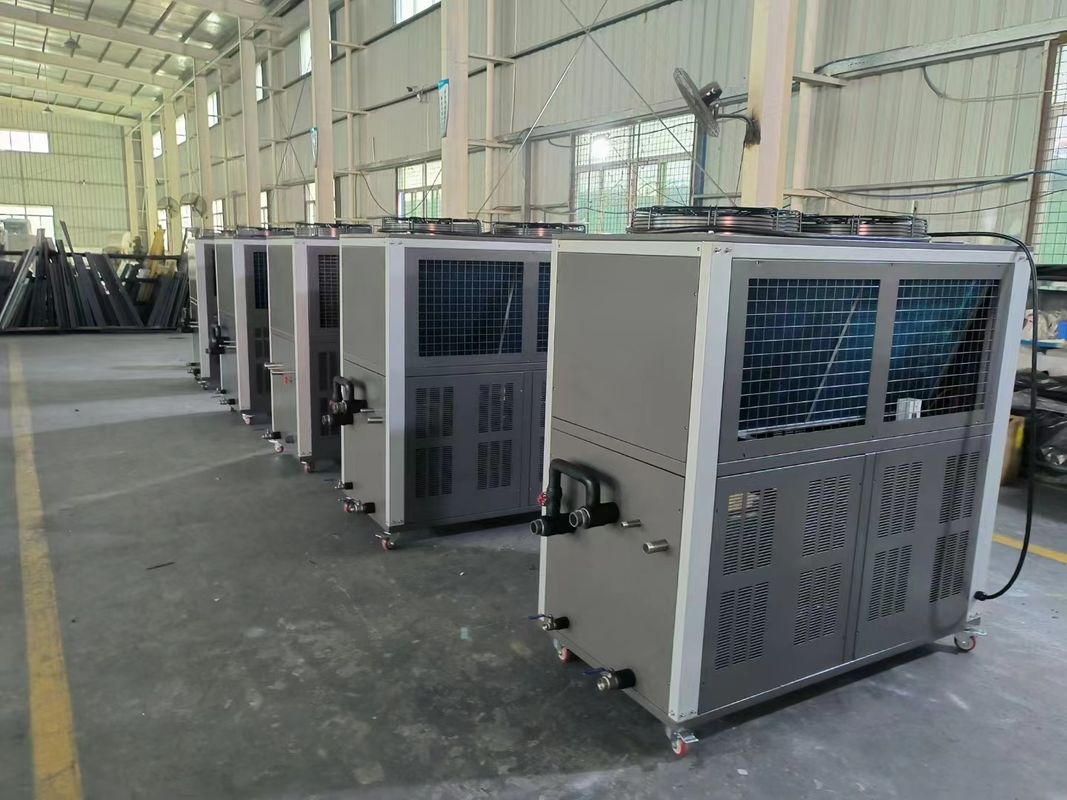

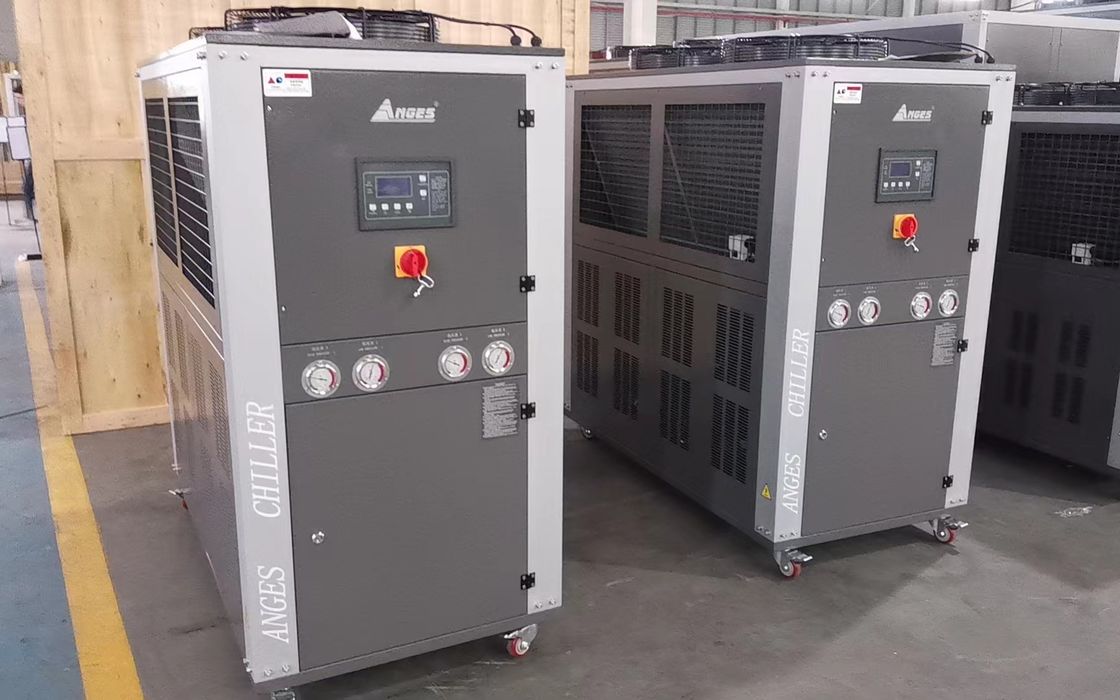

Hot Sell High Performance Water Pump Compressor Circulating Industrial Air Cooled Water Chiller

Hot Sell High Performance Water Pump Compressor Circulating Industrial Air Cooled Water Chiller

Industrial Air Cooled Water Chiller

Circulating Water Chiller

High Performance Water Chiller

Place of Origin:

China

Brand Name:

ANGES

Certification:

ISO9001, CE

Model Number:

10hp

Contact Us

Request A Quote
Product Details
Water Tank Capacity:
85L
Compressor Tpye:
Scroll Compressor
Cooliong Capacity:
29KW
Evaporator:
Shell And Tube
Pump:
2 Bar
Compressor Typetype:
Panasonic
Warranty:
1 Year
Packages:
Plywood Case
Condition:
Brandnew
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Plywood case
Delivery Time
20 days
Payment Terms
L/C, T/T
Product Description

Production Application:

ACK-series of portable water chillers are designed to be air-cooled chiller. This series of air-cooled chillers has been designed for use with water at temperature between 5-35℃ with ±1℃ deviations, and provides cooling capacity from 7955-152048Kcal/h.

Specification:



Model

Item

ACK-10(D)
Nominal cooling capacity Kcal/h 25886
kw 29
Input power kw 11.22
Power supply 3PH~3800V/60HZ
Refrigerant Type R22(R407c, R410a)
Type of control Expansion valve
Compressor Type Hermetic scroll type
Power (kw) 8.8
Condenser Type

Finned copper tube+low noise outer

rotor fan

Power(kw) 0.92
Cooling air flow(m3 /h) 10000
Evaporator type Shell and tube
Chilled water flow(m3 /h) 5
Tank volume(L) 85
Inlet/outlet pipe chiller(inch) 1-1/2
Water pump Power(kw) 1.5
Lift(m) 20
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight kg 500
Dimension mm 1530*780*1630


Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.
