| Brand Name: | SZAGS |
| Model Number: | ACK-60(F) |
| MOQ: | 1 |
| Price: | Can be negotiate |
| Packaging Details: | Standard export wooden box |
| Payment Terms: | TT/LC/CASH |

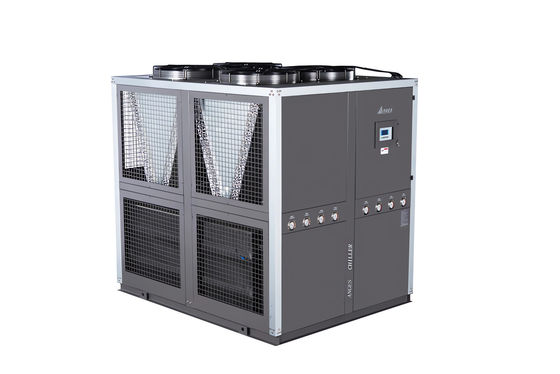

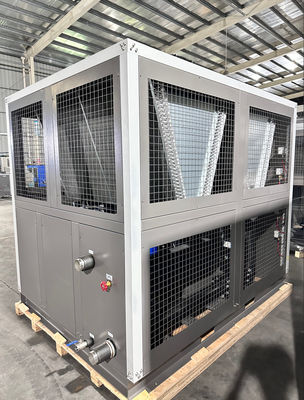

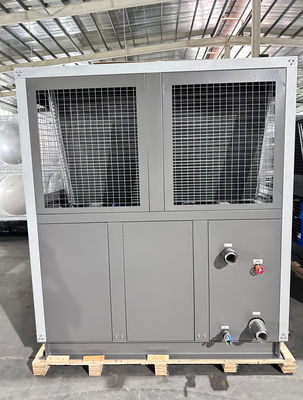

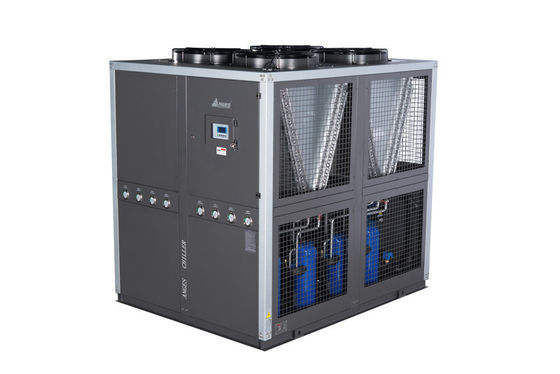

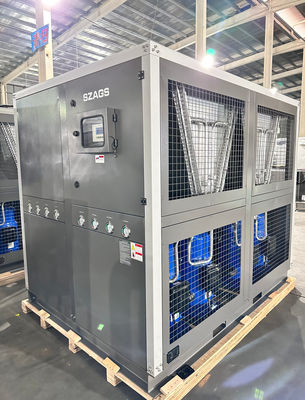

The portable water chiller is constructed with a stainless-steel water tank material, ensuring durability and longevity. Our Portable Liquids Chiller is perfect for any application that requires portable liquid cooling, from medical laboratories to industrial processes. With our SZAGZ chiller, you can be confident that your liquids will be cooled to your desired temperature quickly and efficiently. The Hermetic Scroll compressor type ensures that the chiller runs smoothly and quietly, making it ideal for any setting.
|
Model Item |
ACK-60(F) | |
| nominal cooling capacity | Kcal/h | 190714 |
| kw | 221.76 | |
| input power | kw | 57.48 |
| power supply | 3PH 460V 60Hz | |
| refrigerant | type | R407C |
| type of control | thermostatic expansion valve | |
| compressor | type | hermetic scroll |
| power (kw) | 49.8 | |
| condenser | type | finned copper tube + low noise outer rotor fan |
| fan power (kw) | 3.68 | |
| cooling air flow (m3/h) | 60000 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 38.23 | |
| volume(L) | 345 | |
| inlet and outlet pipe diameter (inch) | 3 | |
| pump | power (kw) | 4 |
| lift (m) | 23 | |
| safety protection | compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection,flow switch protection, phase sequence or missing phase protection, exhaust overheating protection | |
| weight | kg | 2300 |
| dimension | mm | 3600*2060*2120 |
Note: The nominal cooling capacity is according to: Inlet chilled fluid temperature: 17℃,outlet chilled fluid temperature: 12℃.
1. 24 hours Online support;
2. Video technical support;
3. Overseas third-party support available and etc.
1. Standard export wooden box
2. One Portable Water Chiller unit
3. User manual and warranty information
|
|
