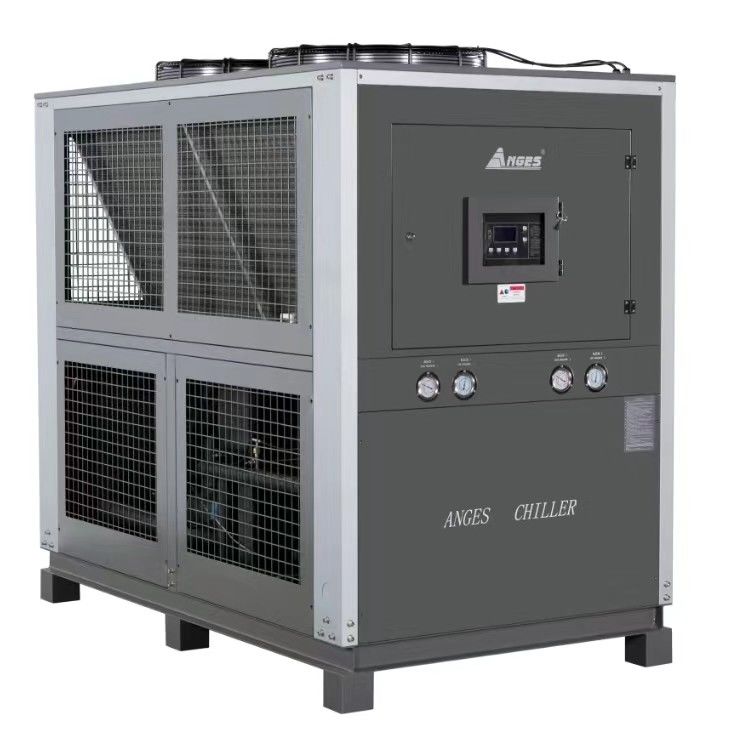

40hp Semi Hermetic R134A Air Cooled Screw Compressor Chiller For Injection Molding Machine

40hp Semi Hermetic R134A Air Cooled Screw Compressor Chiller For Injection Molding Machine

Place of Origin:

China

Brand Name:

ANGES

Model Number:

40HP

Contact Us

Request A Quote
Product Details
Condition:
Brandnew
Warranty:
1-year
Voltage:
3PH~220V/380/415V~50HZ/60HZ
Cooling Capacity:
40 Ton
Compressor Type:
Semi-hermetic Screw
Evaporator:
Shell And Tube
Condenser:
Aluminum Finned Copper Tube + Axil Fan
Refrigerant:
R134a/R407C/R22
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

40hp Semi Hermetic R134A Air Cooled Screw Compressor Chiller For Injection Molding Machine


During the production process, the injection molding machine needs to cool down the mold to achieve rapid condensation of plastic, improve product quality, and increase production efficiency. The addition of a chiller is indispensable here. The chiller is used in the injection molding machine to achieve rapid condensation of plastic through the four steps of extrusion, bottle blowing, thermoplasticity and hydraulic system.



Model

Parameter

AGS-040ASH
nominal cooling capacity kcal/h 107156
  kw 124.6
input power kw 44
Max. Running current A 99.8
power supply 3PH~380V/50HZ
refrigerant type R22
  refrigerating circuit 1
  type of control
compressor type semi-hermetic screw
  quantity 1
  Power 37.4
  start-up mode Y-△
  capacity control 0-33-66-100
condenser type air cooled type finned copper tube
  cooling air flow (m3/h) 40000
  power(kw) 6.4
evaporator type shell and tube
  quantity 1
  chilled fluid flow (m3/h) 21.4
  inlet and outlet pipe diameter (inch) 3
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weight kg 1300
Dimension mm 2200*1560*2150




What should we pay attention to when selecting an industrial chiller for an injection molding machine?



  1. The cooling capacity when selecting a chiller directly affects the normal use of production equipment and operating efficiency. If the selected cooling capacity is too small, it will not be able to achieve the final cooling effect, which will not only reduce the production efficiency of the enterprise, but also The resulting increase in operating energy consumption will also cause the production equipment to fail to operate normally, affecting the normal production of the enterprise and delaying the construction period. If the size is too large, energy will be wasted and operating costs will increase. Therefore, choosing an industrial chiller that suits your business is the most critical.
  2. Before choosing a chiller, you must first determine whether your company is suitable for an air-cooled chiller or a water-cooled chiller, because they have different cooling methods and different installation aspects.
  3. The first is the air-cooled chiller. It is easy to install. It can be used just by connecting the water pipe and plugging in the power supply. It is easy to install and easy to move. It is especially suitable for use in situations where water sources are lacking. The air-cooled chiller uses air cooling, so the installation location should be in a spacious and bright place, and there must be enough space around it.
  4. The second is water-cooled chilled water. The water-cooled unit needs to install a cooling water tower to cool the unit. There are more pipelines than air-cooled chillers, so the installation is more troublesome. Moreover, the water tower must be installed at a high place, occupying a large area, and the installation is difficult. The maintenance aspect is also higher than that of air-cooled type. Water-cooled chillers are less affected by the environment than air-cooled chillers.
  5. Whether it is air-cooled or water-cooled, the industrial chiller that suits your company is the best.

Why Choose Anges Air Cooled Screw Chiller?

  1. Anges air-cooled screw chillers is ideal for commercial and industrial facilities. It can generate chilled water temperature between -25 degrees Celsius to 30 degrees Celsius.
  2. Air cooled chiller is powered using a semi-hermetic screw compressor and comes with the SIEMENS PLC controller.
  3. Anges Chiller has more than 20 years of industry experience when it comes to the manufacture of chiller systems in China. Thus, we are the one-stop solution for your chiller requirements.
  4. Air cooled screw  chiller system offers easy installation, easy maintenance, and quality design.
  5. If you have more questions about water chillers, free to contact us.

The benefits of using air-cooled chillers:

  1. No cooling towers.
  2. Better environmental stability-no water wastage.
  3. Low maintenance costs.
  4. Easier to operate and control-tower freezing and tower bypass absent.
  5. Chemical costs avoided.
  6. Water costs avoided, especially in cities.
