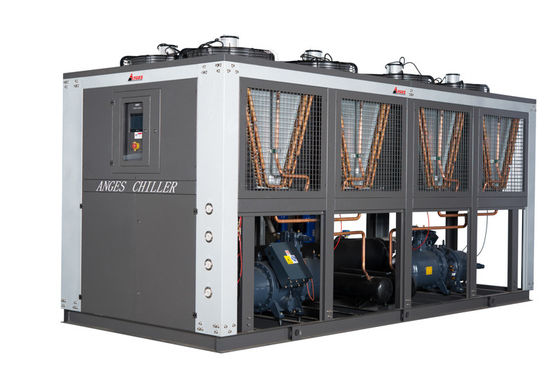

75HP Air Cooled Screw Compressor Chiller Industrial 75 Ton

Place of Origin China
Brand Name ANGES
Model Number 75HP
Minimum Order Quantity 1
Packaging Details Plywood case
Delivery Time 30 days
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition Brandnew Warranty 12 Months
Voltage 3PH~220V/380/415V~50HZ/60HZ Cooling Capacity 75ton
Compressor Type Semi-hermetic Screw Evaporator Shell And Tube
Condenser Aluminum Finned Copper Tube + Axil Fan Refrigerant R22, R134a, R407C
High Light

75HP air cooled screw compressor chiller


air cooled screw compressor chiller Industrial


75 Ton air cooled industrial chiller

Leave a Message
Product Description

Industrial Water Chiller Air Cooled Screw Chiller Central Chiller Water Chiller Manufacturers Refrigerator Chiller System​


Why do I need a industrial water chiller?
Industrial chillers are used for controlled cooling of products, mechanisms and machinery in a variety of industries. A chiller removes heat from the process water and transfers it to air via a heat exchanger.Industrial water chiller can keep your equipment at a safe operating temperature and cool your components during processes to ensure the highest quality final products and reduce production cycle time.





nominal cooling capacity kcal/h 202100
  kw 235
input power kw 81
Max. Running current A 185.1
power supply 3PH~380V/50HZ
refrigerant type R22
  refrigerating circuit 1
  type of control thermostatic expansion valve
compressor type semi-hermetic screw
  quantity 1
  Power 67.7
  start-up mode Y-△
  capacity control 0-25-50-75-100
condenser type air cooled type finned copper tube
  cooling air flow (m3/h) 80000
  power(kw) 13.5
evaporator type shell and tube
  quantity 1
  chilled fluid flow (m3/h) 40.4
  inlet and outlet pipe diameter (inch) 4
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weight kg 2260
Dimension mm 3150*2140*2200

Benefit of industrial chiller applications

  • Provide constant temperature and constant water flow chilled water to the production line, to increased production speed and ensure efficiency production.
  • Accurate temperature control capability, the freezing temperature can be accurate to ±0.1, to ensure the highest quality final products.
  • The cooling fluid is recirculated to reduce waste and cost.
  • Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.

Features of water-cooled water screw chillers

  1. Anges Air cooled screw chillers are large cooling capacity from 140kwand 760kw. Wide range of variable chilled water temperature to meet the industrial requirements of 5℃-30℃.
  2. High efficient shell and tube type evaporator to connect with large water tank directly.
  3. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  4. Screw chiller are tested befor shippment to verify its operational reliability and to ensure a smooth startup
  5. Use PLC microcomputer control and touch screen with English operation interface.
  6. Friendly environmentally refrigerant R407C or R134A are available.Chiller with R134a can be available for ambient temperature above 45 ℃.
  7. Complete safety devices are equipped ,including compressor over temperature, over current, high and low pressure, over temperature, flow switch, etc.

How to select the model of the chiller ?

  • We need to know the heat load of your process or chiller cooling capacity.
  • Required water temperature, water pressure and flow rate.
  • Application and power supply in local.
  • Max. Ambient temperature in summer day
  • Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.


About Anges - Chiller manufactuer from China


Anges is a professional industrial process water chiller supplier, provides a wide range of cooling solutions for multiple industries including Plastics,Food and Beverage, Electroplate, Water jet, Vacuum coating, Laser and so on. Since founded in 2004, through continuous innovation, our product are well sold in domestic market and continue to maintain fast growth all over the world. Anges has successfully established a long-term strategicpartnership with Siemens, Sony, Hitachi, ABB, Peking University, Tsinghua University and other well-knowncompanies and institutions.
