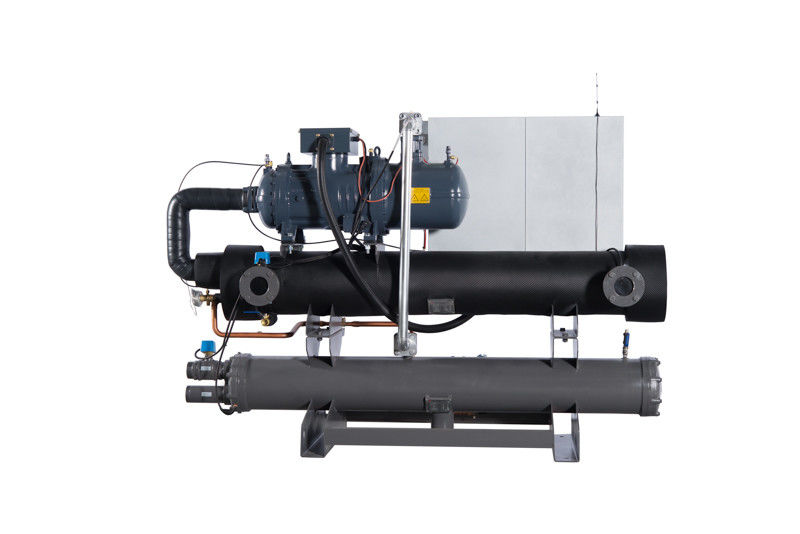

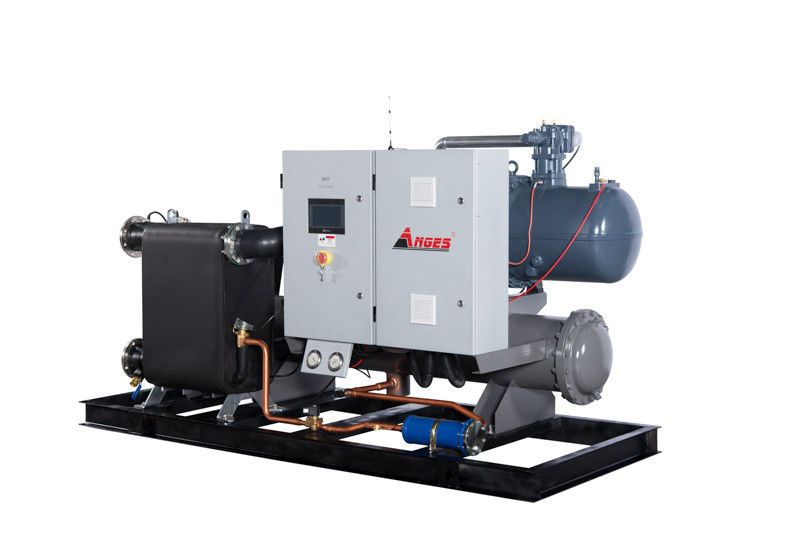

180HP Water Cooled Portable Chiller Low Noise For Printing Machine

180HP Water Cooled Portable Chiller Low Noise For Printing Machine

Brand Name: ANGES
Model Number: 180HP
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Type:
Water Cooled Screw Type
Cooling Capacity:
691.3 Kw
Compressor:
180 Hp
Condenser:
Shell And Tube
Evaporator:
Shell And Tube
Voltage:
3PH~220V/380V/415V~50HZ/60HZ
Condition:
Brand New
Dimension (l*w*h):
4250*1350*1760 Mm
Warranty:
12 Months
Refrigerant:
R22/R134a/R407c/R410a
Weight:
2630 Kg
Temperature:
5℃~30℃
Highlight:

180HP water cooled portable chiller

,

water cooled portable chiller Low Noise

,

Printing Machine water cooler industrial

Product Description

Printing Chiller Water-Cooled Screw Chiller Printing Machine Chiller Cooling For Printing Machine Industrial Chiller





Printing Chiller

In the printing industry, chillers are used to remove the heat generated by the heated printing rollers and LED lights, such as the ink printing and flexographic printing.They need cold water about 12 ℃ for the system to prevent damage to heat-sensitive components,such as LED lights. One unit central chiller can coold several rollers and LED light in one line.The industrial chiller provide constant temperature and constant water flow chilled water to the production line, to increased production speed, ensure efficiency production.



Printing Chiller Specification

Model

AGS-180WSH
nominal cooling capacity kcal/h 594518
kw 691.3
input power kw 137
max running current A 311.3
power supply 3PH-380V-50HZ
refrigerant type R22
type of control expansion valve
compressor type semi-hermetic screw
quantity 1
start-up mode Y-△
capacity control 0-25-50-75-100
evaporator type shell and tube
chilled fluid flow (m3/h) 118.9
pipe diameter (inch) 6
condenser type shell and tube
cooling water flow (m3/h) 142
pipe diameter (inch) 6
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension mm 4250*1350*1760
net weight kg 2630
running weight kg 2920


Features of water-cooled water scrw chillers

  1. Anges water-cooled screw chillers are large cooling capacity from 120kwand 1600kw. The chilled water temperature provided is within a range of 5℃-30℃.
  2. High efficient shell and tube type evaporator to connect with large water tank directly.
  3. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  4. Screw chiller compressor capacity control can be used in four stages (100%-75%-50%-25%) or three stages (100%-66%-33%) and no stage control system.
  5. PLC control system,integrated controller, fully automatic operation, to provide fault warning.
  6. Complete safety devices are equipped ,including compressor over temperature, over current, high and low pressure, over temperature, flow switch, etc.

Benefit of printing process chiller applications

  • Water-coold screw chillers could accurately provide the needed temperature for printing manufacturing and largely improve efficiency and product quality.
  • The ability to maintain constant and precise control of the printing process temperature.
  • The cooling fluid can be delivered directly to the application heat source to ensure safe and efficiency production.
  • Accurate temperature control capability, to ensure the highest quality final products.
  • Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.

How to select the model of the chiller ?

  • We need to know the heat load of your process or chiller cooling capacity.
  • Required water temperature, water pressure and flow rate.
  • Application and power supply in local.
  • Max. Ambient temperature in summer day
  • Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.

Water-cooled screw chiller system installation layout



180HP Water Cooled Portable Chiller Low Noise For Printing Machine 0
