| Brand Name: | ANGES |
| Model Number: | 250HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
Processing Chillers For Food And Beverage Process Chiller Industry Beverage Chiller Industrial Beverage Process Chiller
Food and beverage chiller
We specialize in designing and manufacturing chillers for the food and beverage industry. In the beverage manufacturing process, the chillers use for preform mould, bottle-blowing, bottle filling and beverage cooling. The air-cooled chiller or water-cooled chiller unit, screw compressor chiller, scroll compressor chiller, reciprocating compressor chillers are all available for this application.
Our chillers come with a wide range of cooling temperatures which is from -45 ℃ to +30 ℃, the chillers supply cold water to maintain a stable temperature for the process, ensuring the highest quality final products, increase productivity and save production costs.
Chiller Specification
|
Model |
AGS-250WSH | |
| nominal cooling capacity | kcal/h | 811066 |
| kw | 943.1 | |
| input power | kw | 183 |
| max running current | A | 417.1 |
| power supply | 3PH-380V-50HZ | |
| refrigerant | type | R22 |
| type of control | expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 162.2 | |
| pipe diameter (inch) | 6 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 194 | |
| pipe diameter (inch) | 6 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| dimension | mm | 4550*1550*1820 |
| net weight | kg | 3160 |
| running weight | kg | 3420 |
What is a screw chiller?
Screw chiller is a chiller with screw compressor and has more cooling power than the scroll chiller.Air cooled and water cooled screw chillers are typically available in 40 to 440 tons, higher efficiency and reliability compared to scroll compressor.It's used in both water and air chillers and are best for small to medium cooling loads.

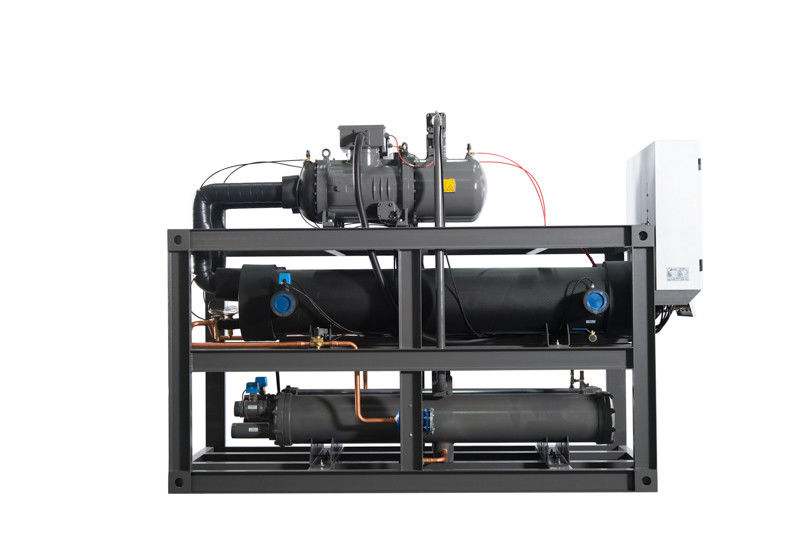

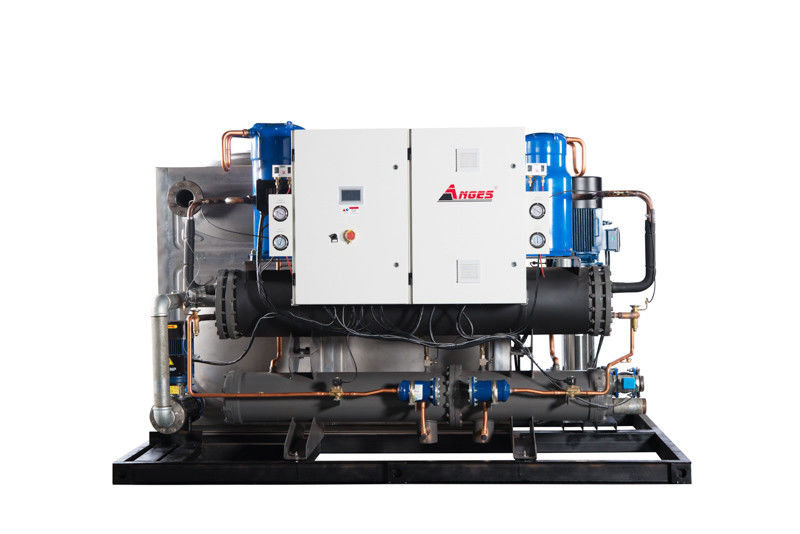

Features of water-cooled water screw chillers
1. Compressor
High-efficiency screw compressor with large cooling capacity from 120kw and 1600kw, it can achieve comparable part-load efficiencies, whether you run your chiller more often at part or full load to save energy.
2. Evaporator
Shell and tube evaporator, high-efficiency internally threaded copper tube, with low flow resistance and high efficiency.
3. Condenser
The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
4. Control system
The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit.
5. Safety Facilities
The chillers have multiple safety protection functions, such as phase sequence protection, flow protection, high and low voltage protection and overheating protection. High reliability, low failure rate, long service time.
Process chiller benefits
1. Water-coold screw chillers could accurately provide the needed temperature for industrial manufacturing and largely improve efficiency and product quality.
2. The industrial water chillers are use to maintain constant and precise control of the process temperature.
2. Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
4. The design is very compact and made of high-grade materials. It has stronger durability and longer service life. It does not need any kind of repair and replacement for a long time, which can save cost.
5. These industrial screw central chillers are stable operation, high efficiency and energy saving, which are ideal solution for process cooling applications in Injection Molding, Blowing Molding, Extruding machine, Thermal Forming, Beverage Filling processing, Metal Finishing and much more.
|
|
| Brand Name: | ANGES |
| Model Number: | 250HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
Processing Chillers For Food And Beverage Process Chiller Industry Beverage Chiller Industrial Beverage Process Chiller
Food and beverage chiller
We specialize in designing and manufacturing chillers for the food and beverage industry. In the beverage manufacturing process, the chillers use for preform mould, bottle-blowing, bottle filling and beverage cooling. The air-cooled chiller or water-cooled chiller unit, screw compressor chiller, scroll compressor chiller, reciprocating compressor chillers are all available for this application.
Our chillers come with a wide range of cooling temperatures which is from -45 ℃ to +30 ℃, the chillers supply cold water to maintain a stable temperature for the process, ensuring the highest quality final products, increase productivity and save production costs.
Chiller Specification
|
Model |
AGS-250WSH | |
| nominal cooling capacity | kcal/h | 811066 |
| kw | 943.1 | |
| input power | kw | 183 |
| max running current | A | 417.1 |
| power supply | 3PH-380V-50HZ | |
| refrigerant | type | R22 |
| type of control | expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 162.2 | |
| pipe diameter (inch) | 6 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 194 | |
| pipe diameter (inch) | 6 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| dimension | mm | 4550*1550*1820 |
| net weight | kg | 3160 |
| running weight | kg | 3420 |
What is a screw chiller?
Screw chiller is a chiller with screw compressor and has more cooling power than the scroll chiller.Air cooled and water cooled screw chillers are typically available in 40 to 440 tons, higher efficiency and reliability compared to scroll compressor.It's used in both water and air chillers and are best for small to medium cooling loads.
Features of water-cooled water screw chillers
1. Compressor
High-efficiency screw compressor with large cooling capacity from 120kw and 1600kw, it can achieve comparable part-load efficiencies, whether you run your chiller more often at part or full load to save energy.
2. Evaporator
Shell and tube evaporator, high-efficiency internally threaded copper tube, with low flow resistance and high efficiency.
3. Condenser
The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
4. Control system
The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit.
5. Safety Facilities
The chillers have multiple safety protection functions, such as phase sequence protection, flow protection, high and low voltage protection and overheating protection. High reliability, low failure rate, long service time.
Process chiller benefits
1. Water-coold screw chillers could accurately provide the needed temperature for industrial manufacturing and largely improve efficiency and product quality.
2. The industrial water chillers are use to maintain constant and precise control of the process temperature.
2. Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
4. The design is very compact and made of high-grade materials. It has stronger durability and longer service life. It does not need any kind of repair and replacement for a long time, which can save cost.
5. These industrial screw central chillers are stable operation, high efficiency and energy saving, which are ideal solution for process cooling applications in Injection Molding, Blowing Molding, Extruding machine, Thermal Forming, Beverage Filling processing, Metal Finishing and much more.
