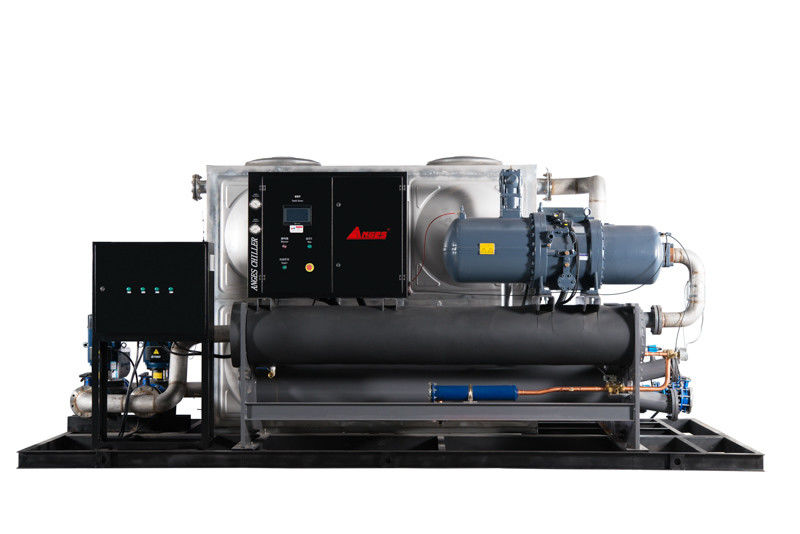

220 Ton Water Cooled Screw Chiller 220HP For Food And Beverage Industry
| Place of Origin | China |
|---|---|
| Brand Name | ANGES |
| Model Number | 220HP |
| Minimum Order Quantity | 1 |
| Packaging Details | Plywood case |
| Delivery Time | 25 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Water Cooled Screw Type | Cooling Capacity | 805.1 Kw |
|---|---|---|---|
| Compressor | 220 Hp | Condenser | Shell And Tube |
| Evaporator | Shell And Tube | Voltage | 3PH~220V/380V/415V~50HZ/60HZ |
| Condition | Brand New | Dimension (l*w*h) | 4370*1350*1760 Mm |
| Warranty | 12 Months | Refrigerant | R22/R134a/R407c/R410a |
| Weight | 3050 Kg | Temperature | 5℃~30℃ |
| High Light | 220 Ton Water Cooled Screw Chiller,Water Cooled Screw Chiller 220HP,220HP industrial inline water chiller |
||
Product Description
Water Chiller Beverage and Dairy Processing Processing Chillers for Food and Beverage Industry 220ton Water Chiller
Food and beverage chiller
We specialize in designing and manufacturing chillers for the food and beverage industry. In the beverage manufacturing process, the chillers use for preform mould, bottle-blowing, bottle filling and beverage cooling. The air-cooled chiller or water-cooled chiller unit, screw compressor chiller, scroll compressor chiller, reciprocating compressor chillers are all available for this application.
Our chillers come with a wide range of cooling temperatures which is from -45 ℃ to +30 ℃, the chillers supply cold water to maintain a stable temperature for the process, ensuring the highest quality final products, increase productivity and save production costs.
Food and Beverage Specification
|
Model |
AGS-220WSH | |
| nominal cooling capacity | kcal/h | 692386 |
| kw | 805.1 | |
| input power | kw | 155 |
| max running current | A | 354.2 |
| power supply | 3PH-380V-50HZ | |
| refrigerant | type | R22 |
| type of control | expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 138 | |
| pipe diameter (inch) | 6 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 165 | |
| pipe diameter (inch) | 6 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| dimension | mm | 4370*1350*1760 |
| net weight | kg | 3050 |
| running weight | kg | 3270 |
The difference between Air-cooled chiller and Water-cooled chiller
An air-cooled chiller refers to a chiller system that uses the ambient air surrounding the condensing unit to cool and condense the refrigerant back into a liquid. In other words, the Air cooled chillers use fans to dissipate heat.
The most common types of water chillers use water from an external cooling tower to cool the refrigerant in the condenser.They need to install cooling tower and cooling pump for operation. since they require a constant supply of water for cooling, they might not be suitable for locations with water shortages or restrictions.
Features of water-cooled water scrw chillers
- Anges water-cooled screw chillers are large cooling capacity from 120kwand 1600kw. The chilled water temperature provided is within a range of 5℃-30℃.
- High efficient shell and tube type evaporator to connect with large water tank directly.
- The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
- Screw chiller compressor capacity control can be used in four stages (100%-75%-50%-25%) or three stages (100%-66%-33%) and no stage control system.
- PLC control system,integrated controller, fully automatic operation, to provide fault warning.
- Complete safety devices are equipped ,including compressor over temperature, over current, high and low pressure, over temperature, flow switch, etc.
Benefits of Food and Beverage Chiller
- Industrial water chiller can reduce downtime and improve productivity
- Chiller has accurate temperature control capability, the chilled water temperature can be accurate to ±1℃
- Industrial chiller is usually closed-loop systems, which can save water through re circulation cooling
- Water chiller applied in Plastic and Rubber industry.It can accurately control the molding temperature and shorten the molding cycle.
- Decrease equipment depreciation and degradation to cut down on operating expenditures.
Water chiller service from manufacturer
Anges is specialized in producing industrial chiller since 2004, to provide flexible cooling solutions for all industries through the use of high quality components. We serve plastic processing, food & beverage & metal finishing industries and much more.Our water chiller cooling capacity is from 3kw -180kw, water outlet temperature is from -40 to +30 ℃. We can provide on-site service by our agents or partners in some countries to provide quick and convenient service to our clients, Indonesia, Philippines, Thailand, Singapore, Australia, USA, Mexico, Morocco and so on.
