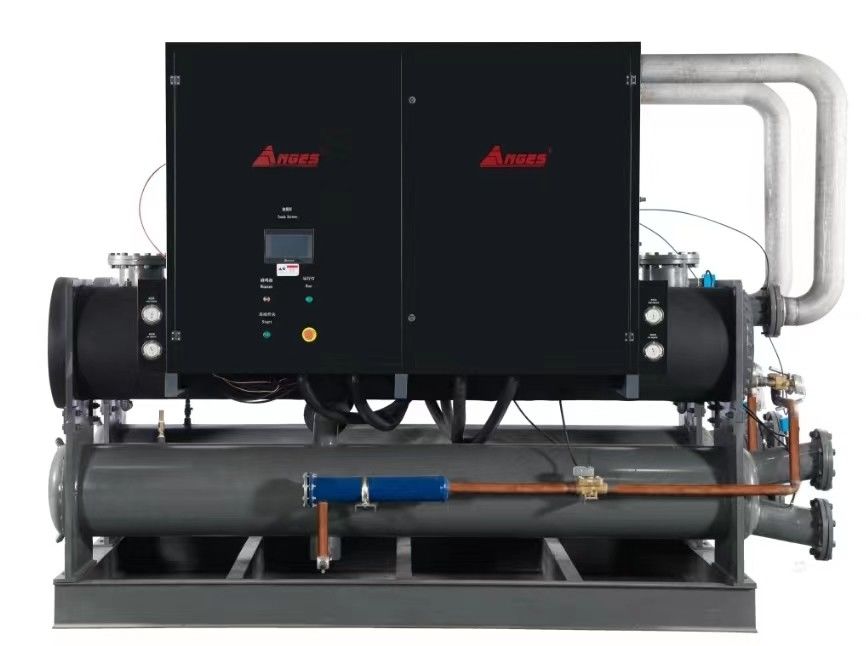

120hp Industrial Water Chiller Integrated System Semi Hermetic Screw Type

120hp Industrial Water Chiller Integrated System Semi Hermetic Screw Type

Brand Name: ANGES
Model Number: 120hp
MOQ: 1
Packaging Details: Plywood case
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Cooling Capacity:
382.8kw
Input Power:
113
Voltage:
3PH~220V/380V/415V~50HZ/60HZ
Fan Power:
6kw
Refrigerant:
R22
Cooling Air Flow:
122000
Highlight:

Industrial Water Chiller Integrated System

,

Screw Type Industrial Water Chiller

,

Semi Hermetic Portable Water Chiller

Product Description

120HP Industrial Chiller Integrated System Semi Hermetic Screw Type



120ton Screw Chiller 85ton Water Chiller Package Unit Central Chiller Hvac Water Cooled Chiller Package Outdoor Chiller

This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.


Item AGS-120WSHI
nominal cooling capacity kcal/h 329208
kw 382.8
input power kw 113
max running current A 256.4
power supply 3PH-380V-50HZ
refrigerant type R22
type of control expansion valve
compressor type semi-hermetic screw
Power(kw)
start-up mode Y-△
capacity control 0-25-50-75-100
evaporator type shell and tube
chilled fluid flow (m3/h) 65.8
pipe diameter (inch) 4"
condenser type shell and tube
cooling water flow (m3/h) 80.4"
pipe diameter (inch) 4"
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Tank L 3000
External circulation pump Power(kw) 7.5
Lift(m) 23.6
Internal circulation pump Power(kw) 7.5
Lift(m) 22
dimension mm 4200*2200*3250
net weight kg 3250
running weight kg 3460
Featurers of water cooled screw refrigeration chiller


1. Brand semi-close double-screw compressor and long service-life of bearing ensure long time operation, and it is
equipped with high-efficient motor that gives compressorhigh efficiency.

2. The condenser and evaporator both can meet therequirement of national standard, with high-effcient heattransfer effect, convenient service and maintenance.

3. Equipped with programmable logical controller to control viapanel for convenient adjustment.

4. Step-less compressor can achieve a cooling output range ot50~100% with each compressor and realize stable cooling output.

5. Standard equipped with high and low pressure switchfusible plug. overload protector, coil overheat protector.exhaust air overheat protection, cooling water overheat and large temperature deviation protection.



Water chiller service from manufacturer


We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
1.All the chillers are provided with 12 months free maintenance service.
2.Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
3.If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
4.Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
5.Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
