Place of Origin:
China
Brand Name:
ANGES
Model Number:
HBC-40(F)
Contact Us

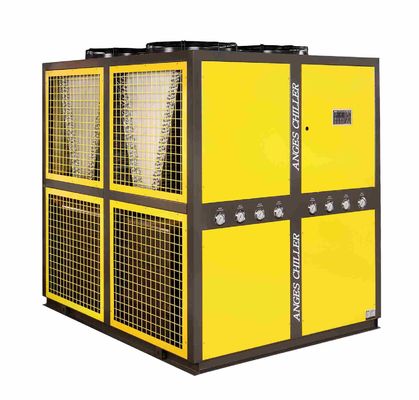

40ton air cooled environmental-friendly industrial chiller 40 HP Inverter Water Chiller industrial chiller machinecooling systems chillers
Product Description for 40HP 40ton 122kw Industrial Air Cooled Scroll Glycol Water Chiller for Brewery Fermenting Tanks for Beverage Milk Cooling System with CE
Product Name: Industrial air cooled environmental-friendly industrial chiller
Cooling capacity: 122kw/40hp
Output temp. :5-35C
Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
Color: grey or customized
Refrigerant: R407C/R134a/R410a/R404a
Compressor:Hermetic scroll type,world famous brand compressors from Copland, Panasonic etc
Injection Molding Chiller Specification
|
Model Item |
HBC-40(F) | |
| Nominal cooling capacity | Kcal/h | 104920 |
| kw | 122 | |
| Input power | kw | 40 |
| Power supply | 3PH~220V/60HZ | |
| Refrigerant | Type | R410a/R134a/R407c |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 33.2 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 2.8 | |
| Cooling air flow(m3 /h) | 40000 | |
| Evaporator | type | Shell and tube |
| Chilled water flow(m3 /h) | 21.03 | |
| Tank volume(L) | 580 | |
| Inlet/outlet pipe chiller(inch) | 2-1/2'' | |
| Water pump | Power(kw) | 4 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 1250 |
| Dimension | mm | 2100*1660*2100 |
Anges chiller Application Range.
Benefit of Plastic Process Chiller Applications
The purpose and importance of industrial chillers?
Industrial chillers play a key role in setting up a temperature-controlled environment. Just as a boiler heats fluid in its chamber, chillers remove heat from fluids. The cooled fluid is circulated through a heat exchanger to cool equipment or parts of the process stream.
FAQ
1.how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us? Industrial Chiller
why should you buy from us not from other suppliers? We are a chiller manufacture , began to produce chiller in 2004, as long as the production of industrial chiller, we are very mature technology and perfect after-sales guarantee,We have own development team , industry leading technology , multi-year production experience, fine technology, superior quality, reasonable price , and the various specification can be made according to customers request.
3.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Type: T/T,L/C,Western Union;
Send your inquiry directly to us
