Industrial Water Chiller
>

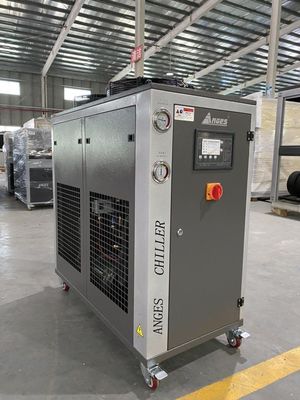

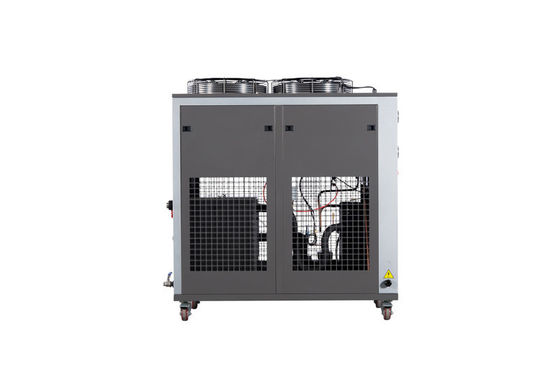

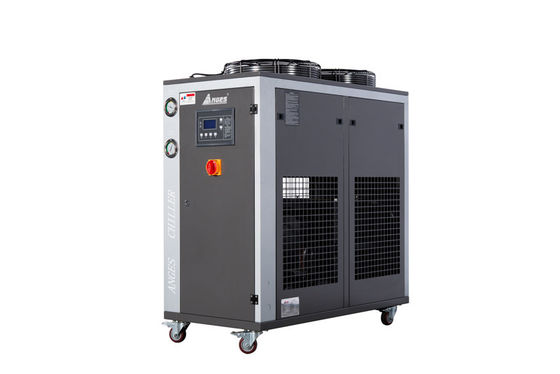

16.7kw Portable Water Chiller With Small Hermetic Scroll Compressor

16.7kw Portable Water Chiller With Small Hermetic Scroll Compressor

Brand Name: ANGES
Model Number: 5hp
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Compressor Type:
Hermetic Scroll
Compressor Power:
5hp
Cooling Capacity:
16.7kw
Type:
Water Cooled Type
Pump Pressure:
2 Bar
Water Tank Material:
Stainless Steel
Original:
Shenzhen China Manufacturer
Packages:
Plywood Case
High Light:

16.7kwPortable Water Chiller

,

Hermetic Scroll Compressor Portable Water Chiller

,

Water Cooled Water Chiller Portable Small

Product Description

5hp Portable Water Chiller Air Cooled Cooler Chiller Air Cooling With Small Hermetic Scroll Compressor



Chiller which is also called water chiller units, industrial chiller, cooling system, cooling machine, cooling equipment, it offers chilled water with temperature from -40°C to +35°C and can be used for a variety of industrial and commercial applications.

Anges Chiller offers a variety of chillers for a wide range of industries: plastic extrusion lines, injection mold cooling, bottle blow cooling, beverage filling cooling, etc. Two different types of chiller can be used, air-cooled and water-cooled. Our industrial chiller adopts world famous brand components to ensure stable quality, high efficiency, energy saving and long service life.



Specification for Small Water Cooled Chiller System

Model

HBW-05
nominal cooling capacity Kcal/h 14388
  kw 16.7
input power kw 3.98
power supply 3PH~380V/50HZ
refrigerant type R22
  type of control Capillary
compressor type Hermetic scroll type
  Power (kw) 3.43
condenser type Shell and tube
  Cooling water flow(m3/h) 3.5
  Inlet/outlet pipe caliber(inch) 1 1/2"
evaporator type Shell and tube
  Chilled water flow(m3/h) 2.9
  Tank volume(L) 60
  Inlet/outlet pipe chiller(inch) 1
Water pump Power(KW) 0.55
  flow rate(m3/h) 4
  Lift(m) 20
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight kg 150
Running weight kg 200
Dimension mm 1000*520*1100




Featurers for small water cooled scroll chiller



1. Famous brand belt compressor
Adopt famous brand compressor, low noise, low vibration, high efficiency and energy saving.
2. Evaporator
Shell and tube evaporator adopts high precision inner threaded copper tube design, which has larger heat transfer area, higher efficiency and maximum system performance.
Step 3: Water pump
Advanced stainless steel water pump, large working range, low noise, reliable performance, no leakage, maintenance free.
4. Microcomputer LCD controller
Cold water outlet and set temperature visual display, easy to operate, water temperature control in the range of 3℃~ 50℃.



Chiller daily maintenance



1. Before starting the compressor, check whether the pump rotates normally and ensure that the refrigerant in the pipeline system is fully filled and the circulation is normal.
2. To prevent the chiller from freezing, drain the refrigerant completely when it is not running for a long time. The automatic exhaust valve is installed at the highest point of the chilled water circulation pipe, and the drainage valve is installed at the lowest point of the chilled water circulation pipe.
3. The machine should be maintained by special personnel. According to the severity of the environment, the condenser of the air cooling unit should be cleaned once every 25 days, and the cooling tower pipe of the water cooling unit should be cleaned once every 2-3 months to ensure the heat dissipation effect.
4. The water quality shall meet the requirements in Appendix D of GB/T184330.1-2007. The pH of water should be between 6.5 and 8.0. The water should not contain Cl-, NH+, S² and other ions that are corrosive to copper. Install a filter in the inlet pipe and clean it regularly.
