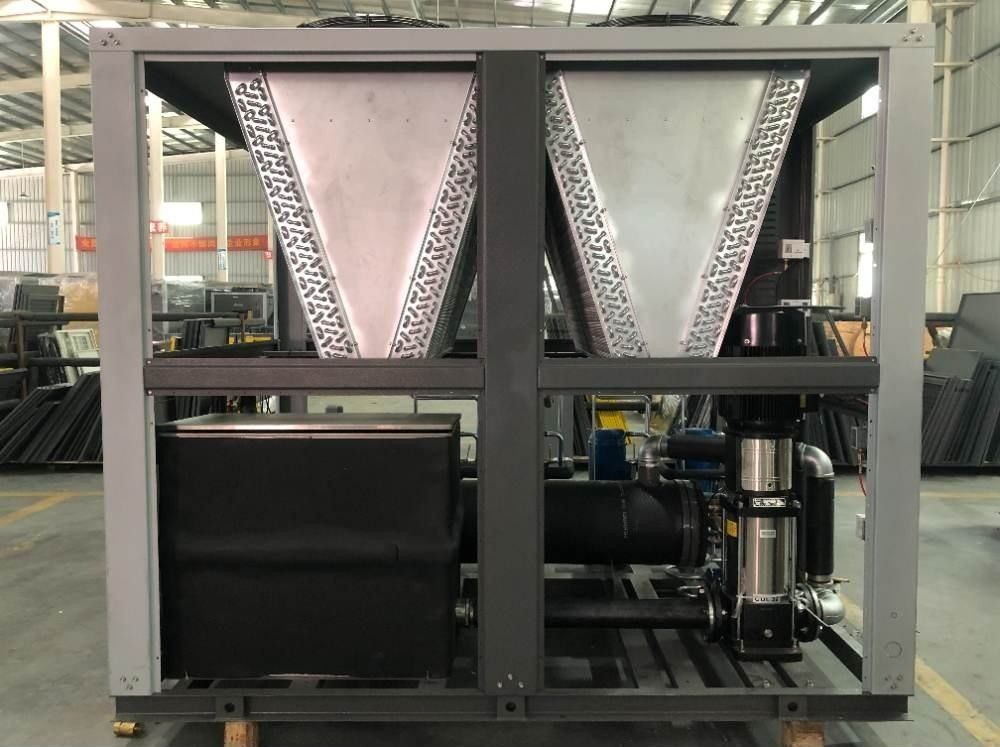

Industrial Chiller Heating And Cooling System

Place of Origin China
Brand Name ANGES
Model Number AL-40W(D)
Minimum Order Quantity 1
Price Negotiable
Packaging Details Plywood case
Delivery Time 15 days
Payment Terms T/T, L/C
Supply Ability 10000pcs/months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Type Cooling And Heating Temperature Controller Condition Brandnew
Cooling Capacity 120.4kw Heating Power 60kw
Compressor Type Hermetic Scroll Type Evaporator Shell & Tube Type
Usage Pharmaceutical,Heat Treatment Furnace,chemical And Biological,chemical
High Light

Industrial chiller heating and cooling system


120.4kw chiller heating and cooling system


60kw heating and cooling temperature controller

Leave a Message
Product Description

Heating And Cooling Temperature Controller Heating And Cooling Systems Industrial Cooling And Heating Chiller


The heating and cooling integrated dual-use chiller contains heating and cooling functions to meet different temperature requirements under different needs. Mutual switching can be realized to speed up production schedule, reduce energy consumption, improve the molding efficiency of products.



Nominal cooling capacity Kcal/h 103544
  kw 120.4
Input power kw 99.2
Power supply 3PH~380V/50HZ
Refrigerant Type R22
  Type of control Expansion valve
Compressor Type Hermetic scroll type
  Power (kw) 32.4
Condenser Type

Finned copper tube+low noise outer

rotor fan

  Power(kw) 2.8
  Cooling air flow(m3 /h) 40000

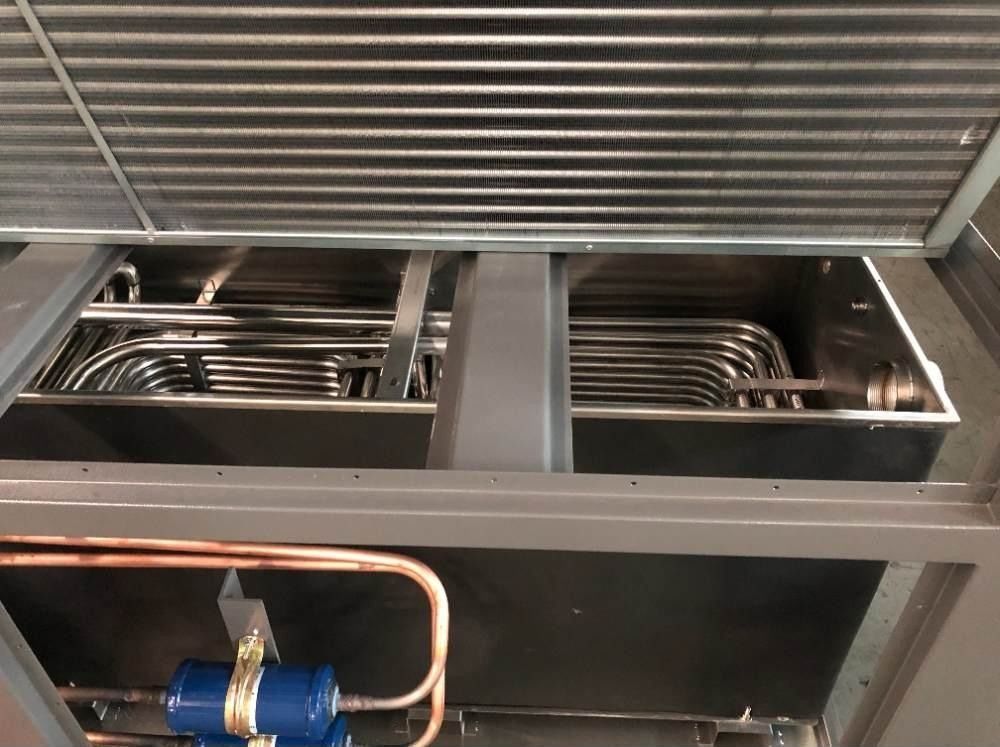

Evaporator Type Water tank with coil
  Chilled water flow (m3 /h) 20.76
  Tank volume(L) 580
  Inlet/outlet pipe chiller(inch) 2-1/2
Water pump Power(KW) 4
  Lift(m) 22
Heating device Type Heating tube
  Power(KW) 60
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight kg 1250
Dimension mm 2100*1660*2050
